Hot-selling and scarce ADP3338AKCZ-1.8-R7 High Accuracy, Ultralow I Low Dropout Regulator SOT223 spot stock

Product Descriptions

The ADP3338 is a member of the ADP33xx family of precision,low dropout (LDO), anyCAP voltage regulators . The ADP3338operates with an input voltage range of 2.7 V to 8 V and deliversa load current up to 1 A . The ADP3338 stands out fromconventional LDOs with a novel architecture and an enhancedprocess that offers performance advantages and higher outputcurrent than its competition. Its patented design requires only a1 µF output capacitor for stability. This device is insensitive tooutput capacitor equivalent series resistance (ESR), and is stable with any good quality capacitor, including ceramic (MLCC)types for space-restricted applications . The ADP3338 achievesexceptional accuracy of ±0.8% at room temperature and ±1.4%over temperature, line, and load variations . The dropout voltageof the ADP3338 is only 190 mV (typical) at 1 A . The device alsoincludes a safety current limit and thermal overload protection .The ADP3338 has ultralow quiescent current: 110 µA (typical)in light load situations .

Product Features

High accuracy over line and load: ±0.8% @ 25°C,

±1.4% over temperature

Ultralow dropout voltage: 190 mV (typ) @ 1 A

Requires only CO = 1.0 µF for stability

anyCAP is stable with any type of capacitor (including MLCC)

Current and thermal limiting

Low noise

2.7 V to 8 V supply range

−40°C to +85°C ambient temperature range

SOT-223 package

Product Applications

Notebook, palmtop computers

SCSI terminators

Battery-powered systems

Bar code scanners

Camcorders, cameras

Home entertainment systems

Networking systems

DSP/ASIC supplies

Product Specification

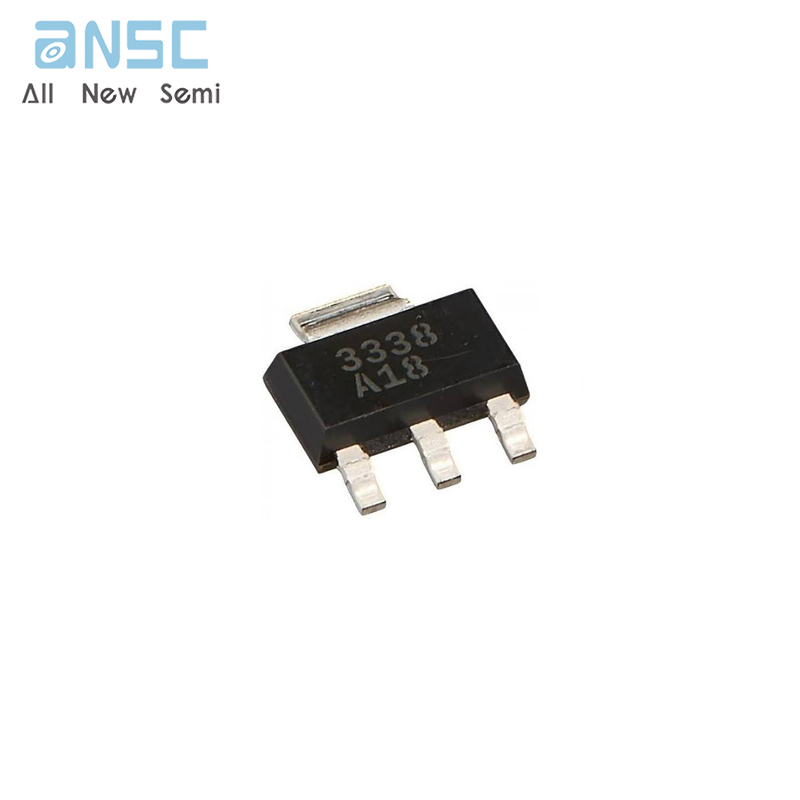

Product Photos

For more product information, please download the PDF
