Hot-selling and scarce ADM13307-4ARZ Triple Processor Supervisors SOP8 spot stock

Product Descriptions

The ADM13307 is a triple voltage supervisor designed tomonitor up to three voltage levels in DSP and microprocessorbased systems .

There are five models available, all of which feature a combination of internally pretrimmed undervoltage threshold optionsfor monitoring 1.8 V, 2.5 V, 3.3 V, and 5 V supplies . There arealso two adjustable input options with undervoltage thresholds ofeither 0.6 V or 1.25 V.

The ADM13307-18, ADM13307-25, and ADM13307-33models have two internally fixed thresholds and one externallyprogrammable threshold via a resistor string . The ADM13307-4and ADM13307-5 offer one internally fixed threshold and twoexternally programmable thresholds. See the Ordering Guidefor a list of all available options .

Product Features

Triple supervisory circuits

Supply voltage range of 2.0 V to 5.5 V

Pretrimmed threshold options: 1.8 V, 2.5 V, 3.3 V, and 5 V

Adjustable 0.6 V and 1.25 V voltage references

Maximum supply current of 40 μA

140 ms (minimum) reset timeout

RESET valid from VDD  ≥1.1 V

Push-pull RESET and RESET outputs

8-lead, narrow body SOIC package

Temperature range: −40°C to +85°C

Product Applications

Supervising DSPs/microcontrollers

Industrial and portable equipment

Wireless systems

Notebook/desktop computers

Product Specification

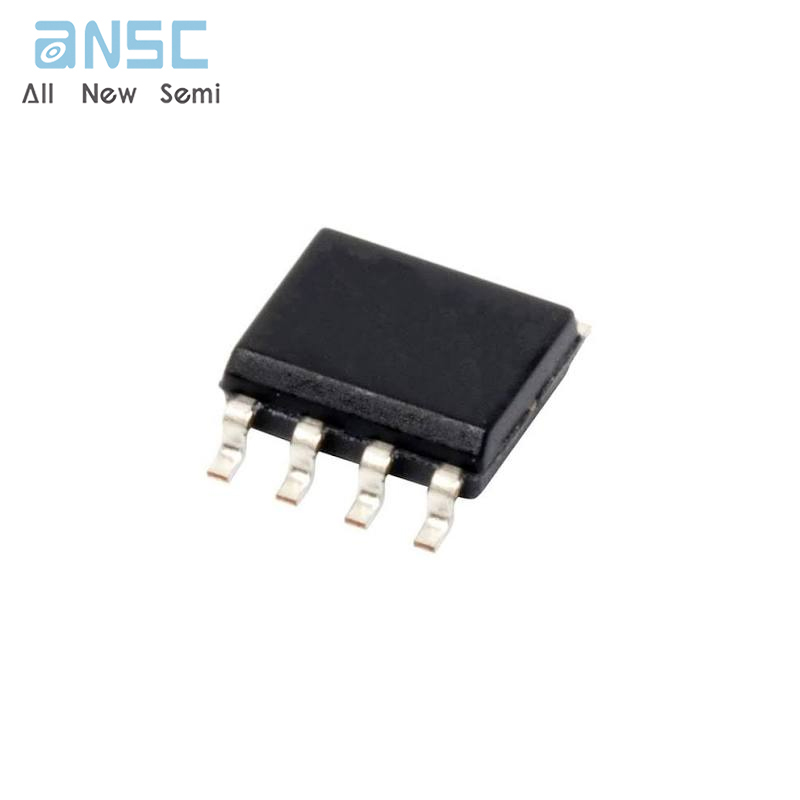

Product Photos

For more product information, please download the PDF
