Hot-selling and scarce ADT7463ARQ Remote Thermal Controller and Voltage Monitor SSOP-24 spot stock

Product Descriptions

The ADT7463 dBCOOL controller is a complete systemsmonitor and multiple PWM fan controller for noise-sensitiveapplications requiring active system cooling . It can monitor12 V, 5 V, and 2.5 V CPU supply voltages, plus its own supplyvoltage . It can monitor the temperature of up to two remotesensor diodes, plus its own internal temperature . It can measureand control the speed of up to four fans so that they operate at thelowest possible speed for minimum acoustic noise . The automaticfan speed control loop optimizes fan speed for a given temperature .A unique dynamic T_MIN  control mode enables the systemthermals/acoustics to be intelligently managed . The effectivenessof the system’s thermal solution can be monitored using theTHERM input . The ADT7463 also provides critical thermalprotection to the system using the bidirectional THERM pinas an output to prevent system or component overheating .​

Product Features

Monitors up to 5 Supply Voltages

Controls and Monitors up to 4 Fan Speeds

1 On-Chip and 2 Remote Temperature Sensors

Monitors up to 6 Processor VID Bits

Dynamic TMIN Control Mode Optimizes System

Acoustics Intelligently

Automatic Fan Speed Control Mode Controls System

Cooling Based on Measured Temperature

Enhanced Acoustic Mode Dramatically Reduces User

Perception of Changing Fan Speeds

Thermal Protection Feature via THERM Output

Monitors Performance Impact of Intel®  Pentium® 4

Processor Thermal Control Circuit via THERM Input

2-Wire and 3-Wire Fan Speed Measurement

Limit Comparison of All Monitored Values

Meets SMBus 2.0 Electrical Specifications

(Fully SMBus 1.1 Compliant)

Product Applications

Low Acoustic Noise PCs

Networking and Telecommunications Equipment

Product Specification

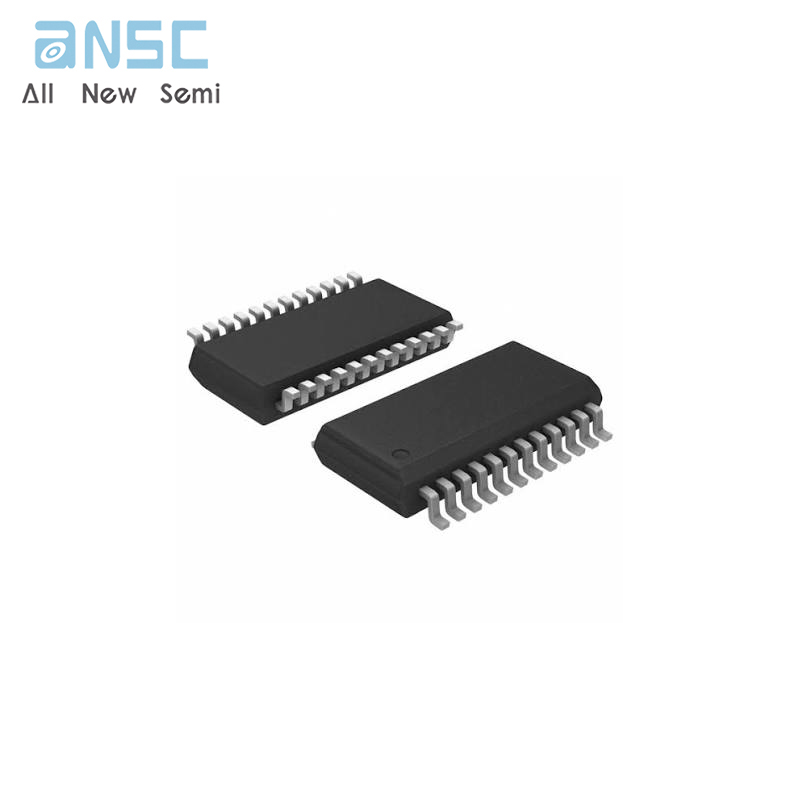

Product Photos

For more product information, please download the PDF
