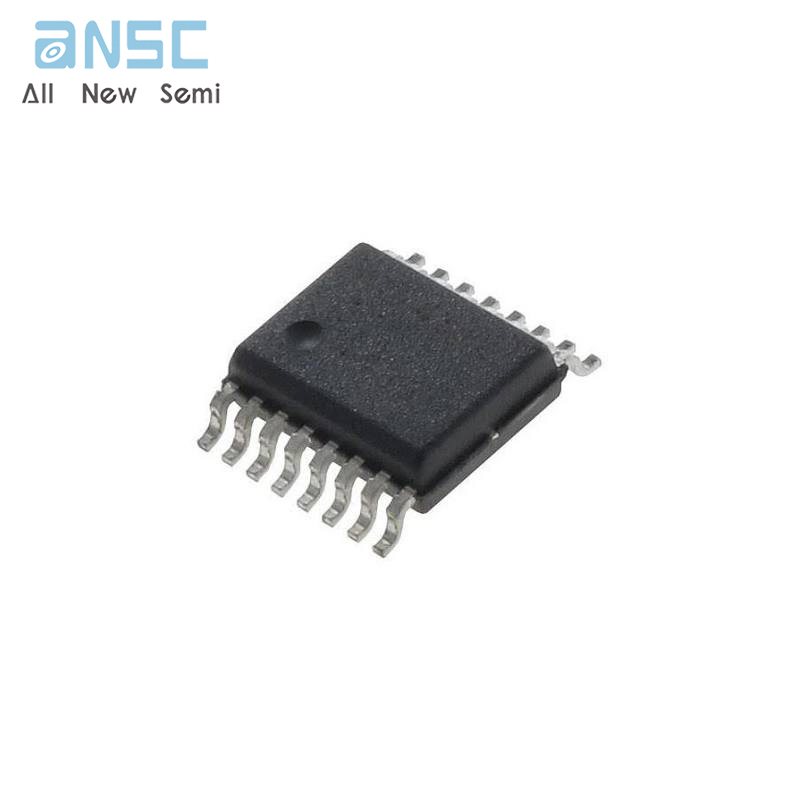

Hot-selling and scarce MIC2569YQS Power Switch IC SSOP spot stock

Product Descriptions

MIC2569 is designed to supply power to OpenCable™systems and CableCARD™hosts . These CableCARDsare also known as Point of Distribution (POD)cards .

MIC2569 supports both Single and Multiple stream cardsthrough a simple to control parallel interface .All voltageswitching is soft-start at turn-on,and break-before-makewhen changing between different voltage supplies .

Built in current limiting protects all V_CC and V_PP output linesof the host system from card faults and accidental shortcircuits .MIC2569 provides a FAULT/signal to indicate anover-current or fault condition exists and is equipped withinternal thermal monitoring circuitry to protect the deviceitself in the event of a sustained over-current condition .

MIC2569 is offered in a space saving 16 pin QSOP  packaging.

Product Features

•  110 mΩmaximum VCC on resistance

•  400 mΩmaximum VPP on resistance

•  3.0V to 3.6V for the 3.3VIN operating range

•  3.0V to 5.5V for the 5VIN operating range

•  1.3A minimum VCC current limit

•  150mA minimum VPP current limit (150mA each)

•  Compact 16-pin QSOP packaging

•  Operating temperatures from –40°C to +85°C

•  Low quiescent current

•  Soft start turn-on

•  Break-before-make voltage switching

•  Short-circuit protection with thermal shutdown

•  Input under voltage lock-out (UVLO)

•  ESD protection

•  No external components required

Product Applications

•  Satellite /Cable /DVR /Television set top boxes

•  Video recorders

•  Game consoles

Product Specification

Product Photos

For more product information, please download the PDF
