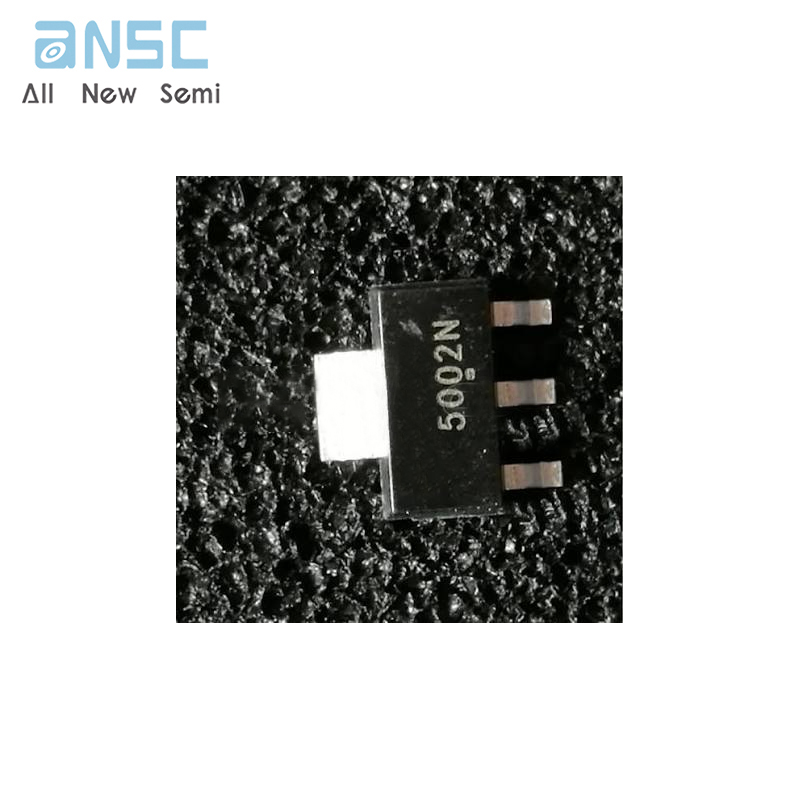

Hot-selling and scarce NIF5002NT1G Self−Protected FET with Temperature and Current Limit SOT223 spot stock
Manufacturer Product Number
NIF5002NT1G
Description
NIF5002NT1G Self−Protected FET with Temperature and Current Limit SOT223 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
Devices are an advanced series of power MOSFETswhich utilize latest MOSFET technology processto achieve the lowest possible on−resistance per silicon area whileincorporating smart features . Integrated thermal and current limitswork together to provide short circuit protection . The devices featurean integrated Drain−to−Gate Clamp that enables them to withstandhigh energy in the avalanche mode . The Clamp also providesadditional safety margin against unexpected voltage transients .Electrostatic Discharge (ESD)protection is provided by an integratedGate−to−Source Clamp .
Product Features
• Current Limitation
• Thermal Shutdown with Automatic Restart
• Short Circuit Protection
• IDSS Specified at Elevated Temperature
• Avalanche Energy Specified
• Slew Rate Control for Low Noise Switching
• Overvoltage Clamped Protection
• Pb−Free Packages are Available
Product Applications
• Lighting
• Solenoids
• Small Motors
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-NIF5002NT1G |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | - |
| Series | HDPlus™ |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Switch Type | Power Switch |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | Low Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 42V (Max) |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2A |
| Rds On (Typ) | 165mOhm |
| Input Type | Non-Inverting |
| Features | Auto Restart, Slew Rate Controlled |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-223 (TO-261) |
| Package / Case | TO-261-4, TO-261AA |
| Base Product Number | NIF5002 |
