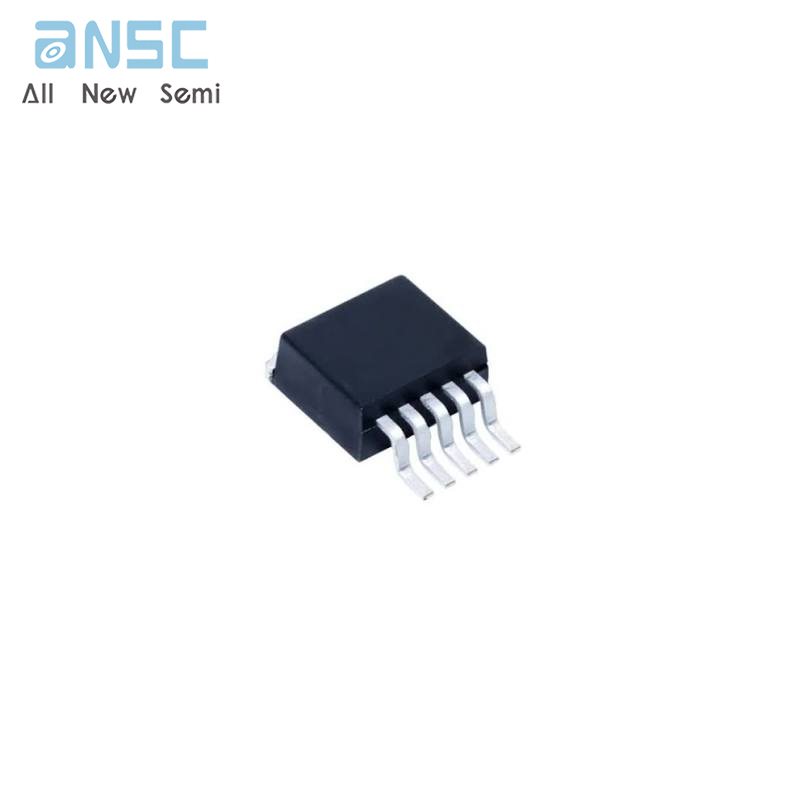

Hot-selling and scarce LM2575WU 52kHz Simple 1A Buck Regulator IC TO-263BA spot stock

Product Descriptions

The LM2575 series of monolithic integrated circuits provide all the active functions for a step-down (buck) switching regulator. Fixed versions are available with a 3.3V, 5V, 12V, fixed output. Adjustable versions have an output voltage range from 1.23V to 37V. Both versions are capable of driving a 1A load with excellent line and load regulation.These regulators are simple to use because they require a minimum number of external components and include internal frequency compensation and a fixed-frequency oscillator. The LM2575 series offers a high efficiency replacement for popular three-terminal adjustable linear regulators. It substantially reduces the size of the heat sink, and in many cases no heat sink is required.

Product Features

• 3.3V, 5V, 12V, and adjustable output versions

• Voltage over specified line and load conditions:

Fixed version: ±3% max. output voltage

Adjustable version: ±2% max. feedback voltage

• Guaranteed 1A output current

•Wide input voltage range:

4V to 40V

•Wide output voltage range:

1.23V to 37V

• Requires only 4 external components

• 52kHz fixed frequency internal oscillator

• Low power standby mode IQ typically <200µA

• 80% efficiency (adjustable version typically >80%)

• Uses readily available standard inductors

• Thermal shutdown and current limit protection

• 100% electrical thermal limit burn-in

Product Applications

• Simple high-efficiency step-down (buck) regulator

• Efficient pre-regulator for linear regulators

• On-card switching regulators

• Positive to negative converter (inverting Buck-Boost)

• Isolated Flyback Converter using minimum number of external components

• Negative Boost Converter

Product Specifications

Product Photos

For more product information, please download the PDF
