Hot-selling and scarce RT9030-10GU5 Low Noise UltraFast Without Bypass Capacitor CMOS LDO Regulator SC-70-5 spot stock

Product Descriptions

The RT9030 is a high-performance,150mALDO regulator,offering extremely high PSRR and ultra-low dropout .Idealfor portable RF and wireless applications with demandingperformance and space requirements .

The RT9030 quiescent current as low as 25μA,furtherprolonging the battery life .The RT9030 also works withlow-ESR ceramic capacitors,reducing the amount of boardspace necessary for power applications,critical in handheld wireless devices .

The RT9030 consumes typical 0.7μA in shutdown modeand has fast turn-on time less than 40μs.The other featuresinclude ultra-low dropout voltage,high output accuracy,current limiting protection,and high ripple rejection ratio .Available in the SC-70-5 and WDFN-6L 1.6x1 .6 package

Product Features

Wide Operating Voltage Ranges : 1.65V to 5.5V

Output Voltage Ranges : 1V to 3.3V

Low Dropout : 100mV at 150mA

Ultra-Low-Noise for RF Application

Ultra-Fast Response in Line/Load Transient

Current Limiting Protection

Thermal Shutdown Protection

High Power Supply Rejection Ratio

Only 1μF Output Capacitor Required for Stability

TTL-Logic-Controlled Shutdown Input

RoHS Compliant and Halogen Free

Product Applications

CDMA/GSM Cellular Handsets

Portable Information Appliances

Laptop,Palmtops,Notebook Computers

Hand-Held Instruments

Mini PCI &PCI-Express Cards

PCMCIA &New Cards

​

Product Specification

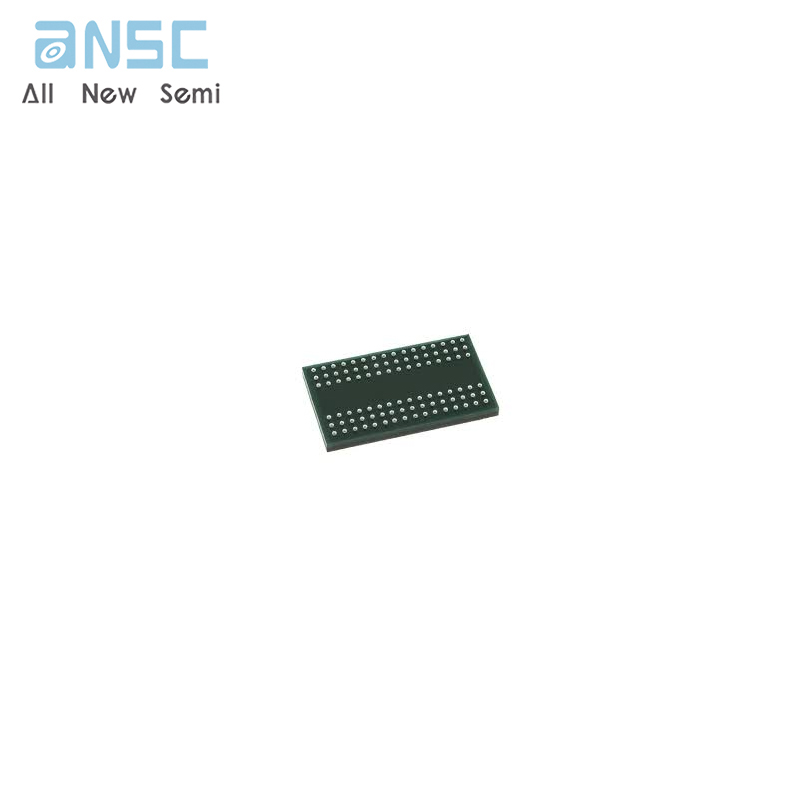

Product Photos

For more product information, please download the PDF
