Hot-selling and scarce TPS62040DRCRG4 1.2 A/1.25 MHz, HIGH-EFFICIENCY STEP-DOWN CONVERTER 10VSON spot stock

Product Descriptions

The  TPS6204x  family  of  devices  are  high  efficiencysynchronous step-down dc-dc converters optimized forbattery powered portable applications . The devices areideal for portable applications powered by a single Li-Ionbattery cell or by 3-cell NiMH/NiCd batteries . With anoutput voltage range from 6.0 V down to 0.7 V,the devicessupport  low  voltage  DSPs  and  processors  in  PDAs,pocket  PCs,  as  well  as  notebooks  and  subnotebookcomputers . The TPS6204x operates at a fixed switchingfrequency of 1.25 MHz and enters the power save modeoperation at light load currents to maintain high efficiencyover  the  entire  load  current  range .  For  low  noiseapplications,  the  devices  can  be  forced  into  fixedfrequency PWM mode by pulling the MODE pin high .TheTPS6204x supports up to 1.2-A load current .

Product Features

Up to 95% Conversion Efficiency

Typical Quiescent Current: 18 µA

Load Current: 1.2 A

Operating Input Voltage Range: 2.5 V to 6.0 V

Switching Frequency: 1.25 MHz

Adjustable and Fixed Output Voltage

Power Save Mode Operation at Light load Currents

100% Duty Cycle for Lowest Dropout

Internal Softstart

Dynamic Output Voltage Positioning

Thermal Shutdown

Short-Circuit Protection

10 Pin MSOP PowerPad™ Package

10 Pin QFN 3 X 3 mm Package

Product Applications

PDA, Pocket PC and Smart Phones

USB Powered Modems

CPUs and DSPs

PC Cards and  Notebooks

xDSL Applications

Standard 5-V to 3.3-V Conversion

Product Specifications

​

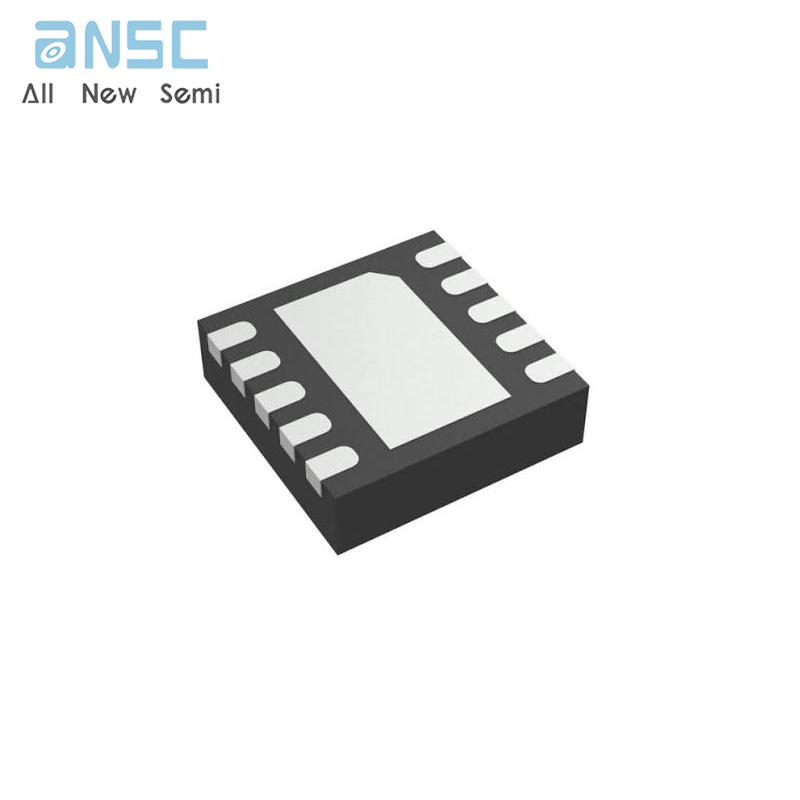

Product Photos

For more product information, please download the PDF
