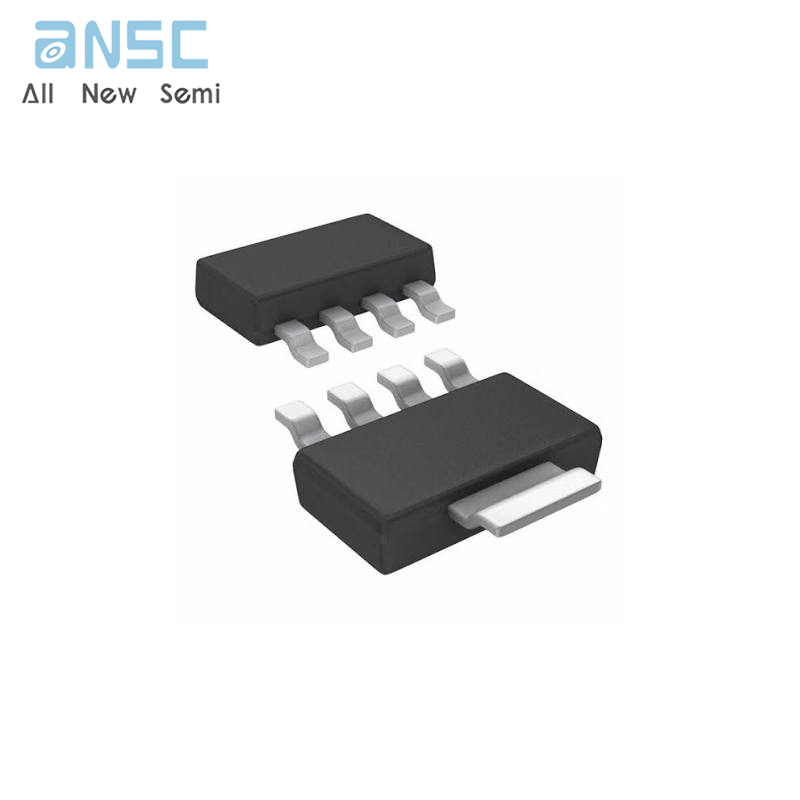

Hot-selling and scarce LP3855EMP-5.0/NOPB 1.5-A Fast Response Ultra-Low Dropout Linear Regulators SSOP20 spot stock

Product Descriptions

The LP3852 and LP3855 series of  fast  ultra-lowdropout linear regulators operate from a 2. 5-V to 7-Vinput supply . A wide range of preset output voltageoptions are available . These ultra-low dropout linearregulators respond very quickly to step changes inload,  which makes them suitable for  low voltagemicroprocessor   applications .    The  LP3852  andLP3855 are developed on a CMOS process whichallows low quiescent-current  operation independentof output load current, typically 4 mA at  1. 5-A loadcurrent . This CMOS process also allows the LP3852and LP3855 to operate under extremely low dropoutconditions, typically 24 mV at  150-mA load currentand 240 mV at 1. 5-A load current .

The LP3852 has an ERROR pin; it goes low whenthe output voltage drops 10% below nominal  value .The LP3855 has a SENSE pin to improves regulationat remote loads .

The LP3852 and LP3855 are available with fixedoutput voltages from 1.8 V to 5 V with a specifiedaccuracy of ±1 . 5% at  room temperature,  and ±3%over   all     conditions  (varying  line,    load,    andtemperature) .  Contact  Texas Instruments Sales forspecific voltage option needs .

Product Features

•   Input Supply Voltage: 2.5 V to 7 V

•   Ultra-Low Dropout Voltage

•   Stable with Selected Ceramic Capacitors

•   Low Ground-Pin Current

•   Load Regulation of 0. 06%

•   10-nA Quiescent Current in Shutdown Mode

•   Specified Output Current of 1.5 A DC

•    Output Voltage Accuracy ± 1.5%

•   ERROR Pin Indicates Output Status

•   SENSE Option Improves Load Regulation

•   Overtemperature/Overcurrent Protection

•   −40°C to 125°C Junction Temperature Range

Product Applications

•   Microprocessor Power Supplies

•   GTL, GTL+, BTL, and SSTL Bus Terminators

•   Power Supplies for DSPs

•   SCSI Terminator

•   Post Regulators

•   High Efficiency Linear Regulators

•   Battery Chargers

•   Other Battery Powered Applications

Product Specification

Product Photos

For more product information, please download the PDF
