Product Descriptions

The NCP1397 is a high performance controller that can be utilized in half bridge resonant topologies such as series resonant, parallel resonant and LLC resonant converters. It integrates 600 V gate drivers, simplifying layout and reducing external component count. With its unique architecture, including a 500 kHz Voltage Controlled Oscillator whose control mode permits flexibility when an ORing function is required, the NCP1397 delivers everything needed to build a reliable and rugged resonant mode power supply.

The NCP1397 provides a suite of protection features with configurable settings to optimize any application. These include: auto−recovery or fault latch−off, brown−out, open optocoupler, soft−start and short−circuit protection. Deadtime is also adjustable to overcome shoot through current.

Product Features

• High−Frequency Operation from 50 kHz up to 500 kHz

• 600 V High−Voltage Floating Driver

• Adjustable Minimum Switching Frequency with ±3% Accuracy

• Adjustable Deadtime from 100 ns to 2 s.

• Startup Sequence Via an Externally Adjustable Soft−Start

• Brown−Out Protection for a Simpler PFC Association

• Latched Input for Severe Fault Conditions, e.g. Over Temperature or OVP

• Timer−Based Input with Auto−Recovery Operation for Delayed Event Reaction

• Latched Overcurrent Protection

• Disable Input for Immediate Event Reaction or Simple ON/OFF Control

• VCC Operation up to 20 V

• Low Startup Current of 300 A

• 1 A/0.5 A Peak Current Sink/Source Drive Capability

• Common Collector Optocoupler Connection for Easier ORing

• Optional Common Emitter Optocoupler Connection

• Internal Temperature Shutdown

• NCV Prefix for Automotive and Other Applications Requiring

​Unique Site and Control Change Requirements;

AEC−Q100 Qualified and PPAP Capable

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Product Applications

• Flat Panel Display Power Converters

• High Power ac−dc Adapters for Notebooks

• Computing Power Supplies

• Industrial and Medical Power Sources

• Offline Battery Chargers

Specifications

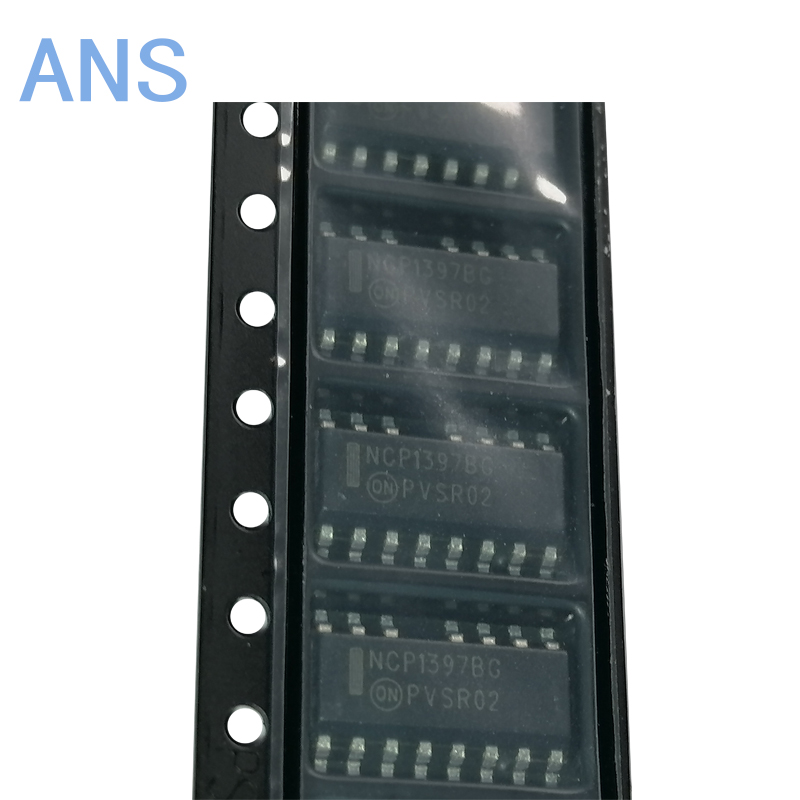

Actual product photos
