Hot sale original LT3473EDD Power Circuits IC Switching Regulator, 1.2A, 1400kHz Switching Freq-Max, PDSO8
Manufacturer Product Number
LT3473EDD
Description
LT3473EDD Power Circuits IC Switching Regulator, 1.2A, 1400kHz Switching Freq-Max, PDSO8
Package Condition
original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| DESCRIPTION The LT®3473/LT3473A are micropower step-up DC/DC converters with integrated Schottky diode and output disconnect circuitry in low profile DFN packages. The small package size, high level of integration and the use of tiny SMT components yield a solution size of less than 50mm2. The internal 1A switch allows the device to deliver 25V at up to 80mA from a Li-Ion cell, while automatic Burst Mode operation maintains efficiency at light load. FEATURES ■ Tiny Solution Size ■ Low Quiescent Current: 150µA in Active Mode (VIN = 3.6V, VOUT = 15V, No Load) 1µA in Shutdown Mode ■ Internal 1A, 36V Switch ■ Integrated Schottky Diode ■ Integrated PNP Output Disconnect ■ Internal Reference Override Pin ■ PGOOD Pin ■ 25V at 80mA from 3.6V Input ■ Auxiliary NPNs for Intermediate Bias Voltages (LT3473A) ■ Automatic Burst Mode® Operation at Light Load ■ Constant Switching Frequency: 1.2MHz ■ Thermal Shutdown ■ Input Range: 2.2V to 16V ■ Low Profile (3mm × 3mm) DFN Package (LT3473) ■ Low Profile (4mm × 3mm) DFN Package (LT3473A) APPLICATIONS ■ OLED Bias ■ CCD Bias |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- LT3473EDD |
| Ihs Manufacturer | Original |
| Package Description | HVSSON |
| Analog IC - Other Type | SWITCHING REGULATOR |
| Input Voltage-Max | 16 V |
| Input Voltage-Min | 2.2 V |
| Input Voltage-Nom | 3 V |
| Length | 3 mm |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Max | 70 °C |
| Operating Temperature-Min | / |
| Output Current-Max | 1.2 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | HVSSON |
| Package Shape | SQUARE |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH |
| Qualification Status | Not Qualified |
| Seated Height-Max | 0.8 mm |
| Surface Mount | YES |
| Switcher Configuration | BOOST |
| Switching Frequency-Max | 1400 kHz |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | NO LEAD |
| Terminal Pitch | 0.5 mm |
| Terminal Position | DUAL |
| Width | 3 mm |

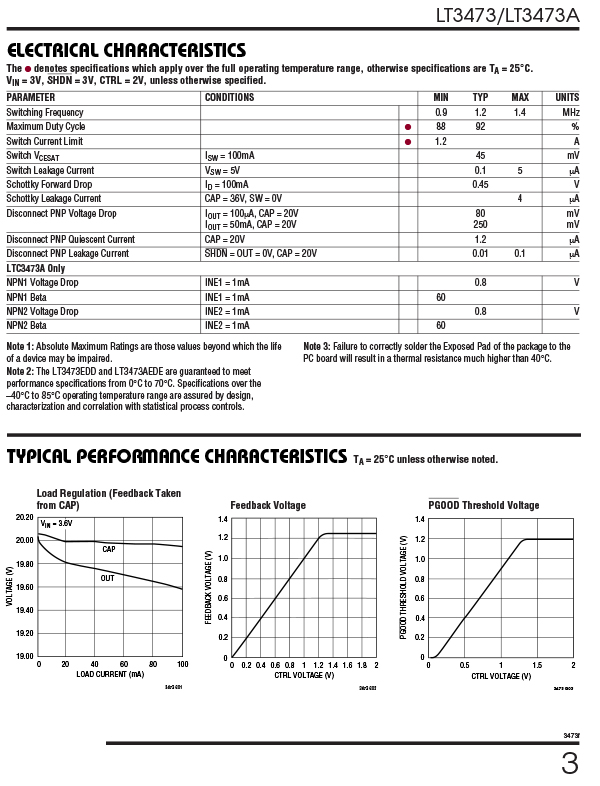

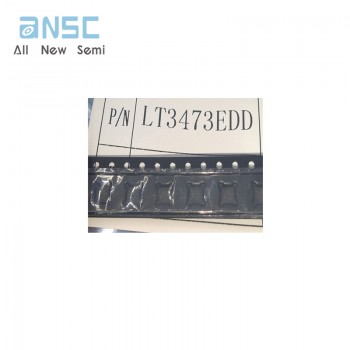

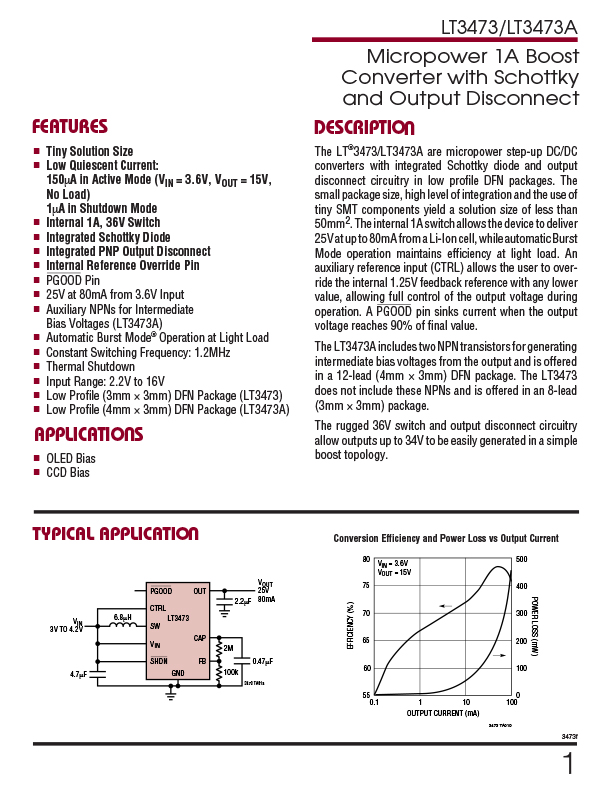

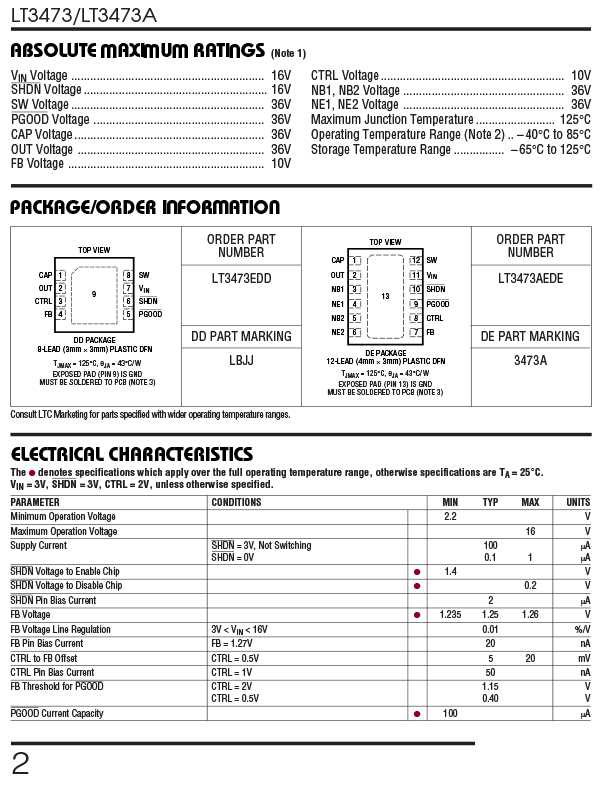

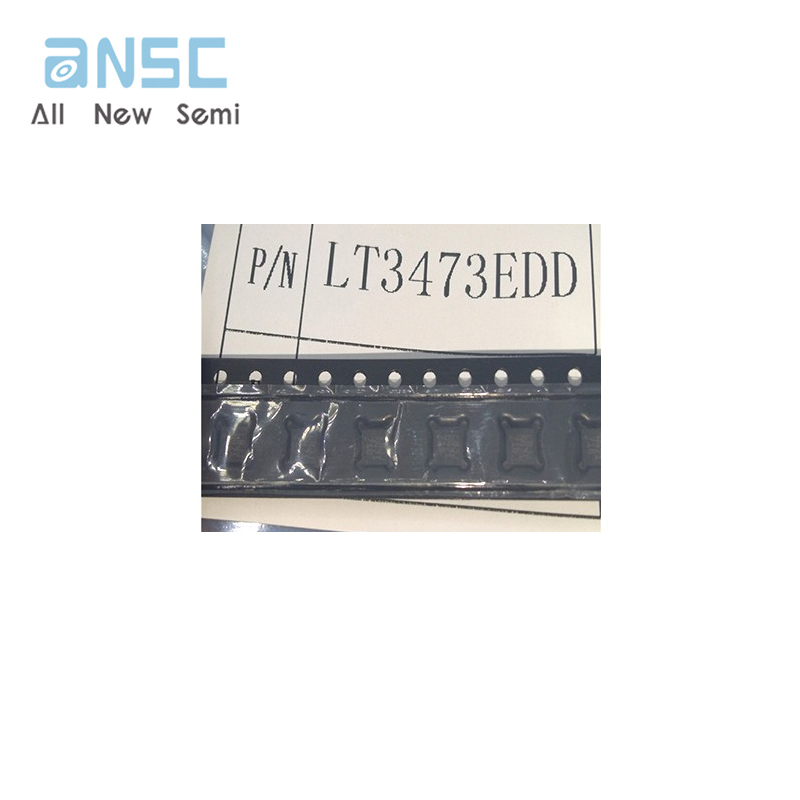

Product Photos
