Hot sale original MC79M05CDT IC REG LINEAR -5V 500MA DPAK Linear Voltage Regulator IC Negative Fixed 1 Output 500mA DPAK

Manufacturer Product Number
MC79M05CDT
Description

MC79M05CDT IC REG LINEAR -5V 500MA DPAK Linear Voltage Regulator IC Negative Fixed 1 Output 500mA DPAK

Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

voltage regulators are intended as complements to the popular MC78M00 series devices.
Available in fixed output voltage options of −5.0 V, −8.0 V, −12 V and −15 V, these regulators employ current limiting, thermal shutdown, and safe−area compensation, making them remarkably rugged under most operating conditions. With adequate heatsinking they can deliver output currents in excess of 0.5 A.
Features
• No External Components Required
• Internal Thermal Overload Protection
• Internal Short Circuit Current Limiting
• Output Transistor Safe−Area Compensation
• Also Available in Surface Mount DPAK (DT) Package
• Pb−Free Packages are Available

Product Description

Type Description
ANSC PART# ANSC - MC79M05CDT
Category Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Mfr Original
Series -
Packaging Tube
Part Status Obsolete
Output Configuration Negative
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) -35V
Voltage - Output (Min/Fixed) -5V
Voltage - Output (Max) -
Voltage Dropout (Max) 1.1V @ 500mA (Typ)
Current - Output 500mA
PSRR 66dB (120Hz)
Control Features -
Protection Features Over Current, Over Temperature
Operating Temperature 0°C ~ 125°C
Mounting Type Surface Mount
Package / Case TO-252-3, DPAK (2 Leads + Tab), SC-63
Supplier Device Package DPAK
Base Product Number MC79M05

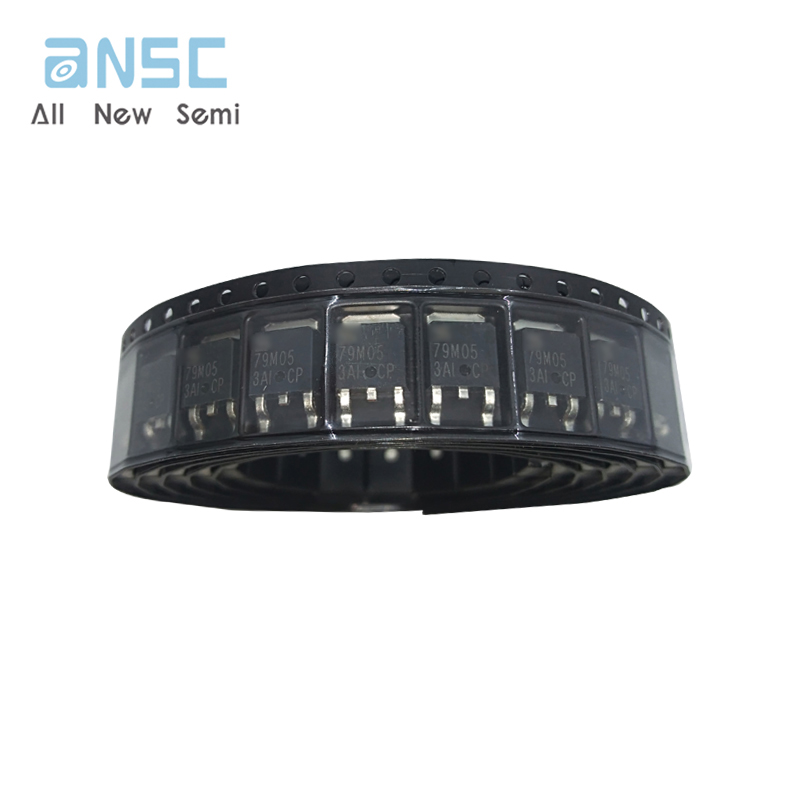

Actual image of the product

MC79M05CDT

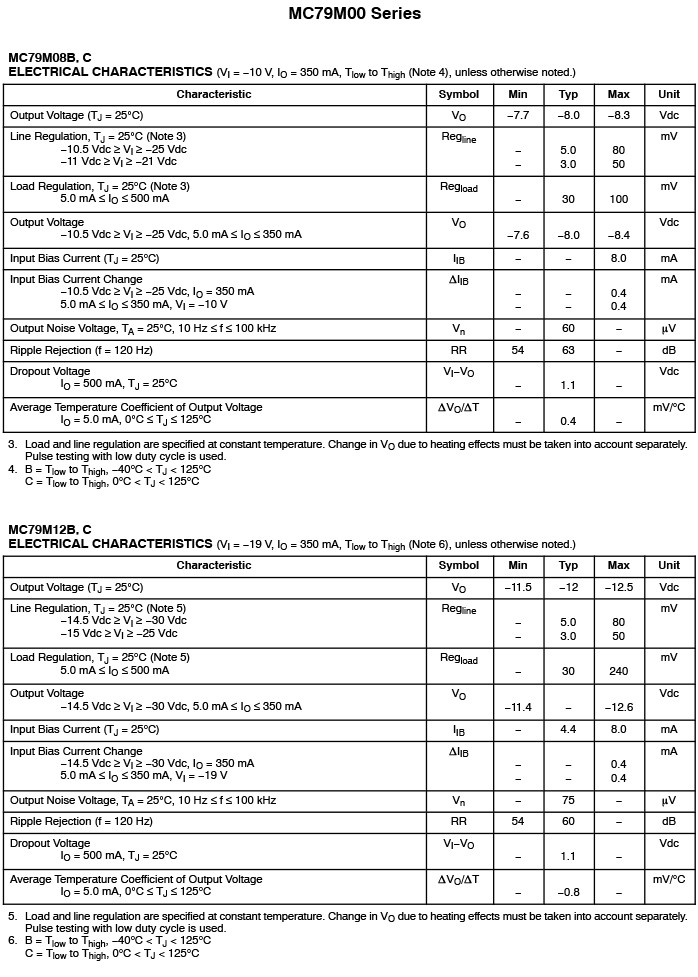

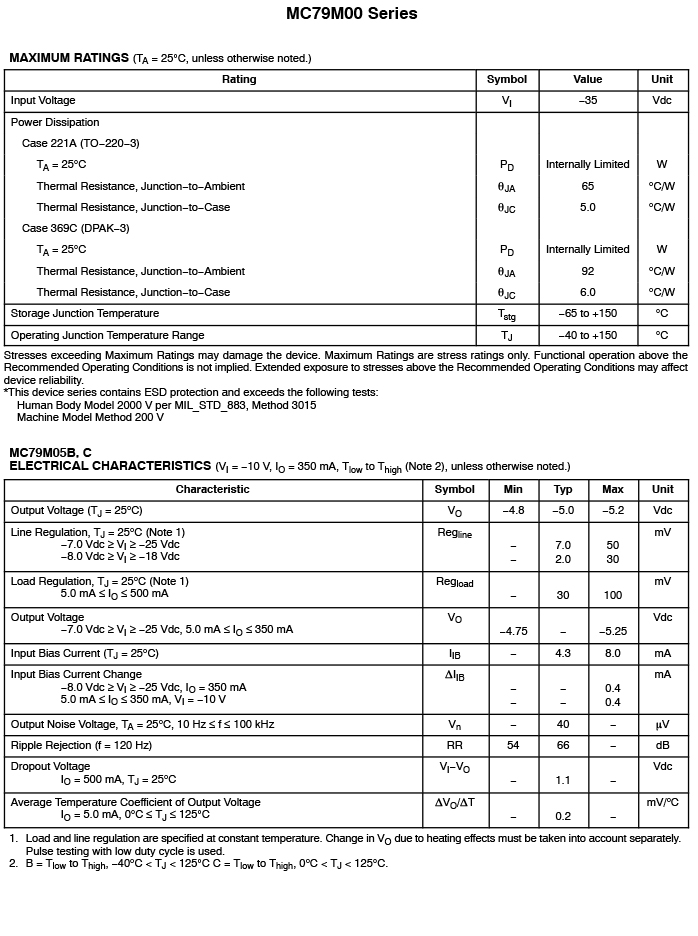

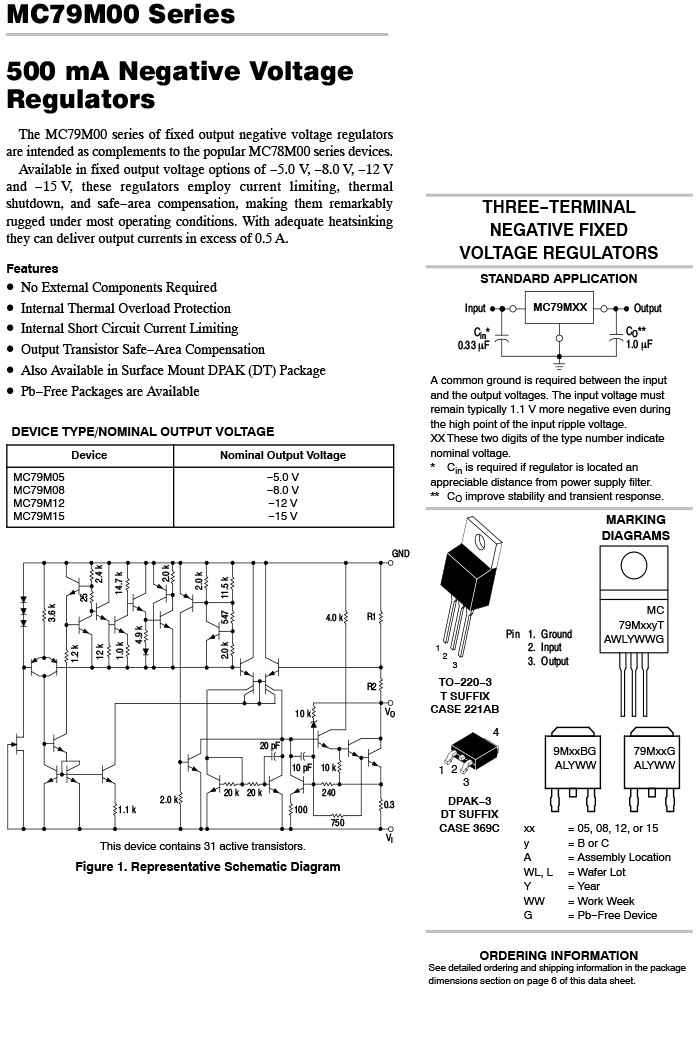

Product datasheet

For more information, please download
