Hot-selling and scarce IRS21844PBF Half-Bridge Gate Driver IC Non-Inverting 14-DIP spot stock

Product Descriptions

The  IRS2184/IRS21844 are high voltage , high speed power MOSFET andIGBT drivers with dependent high-sideand low-side referenced output channels .  Proprietary  HVIC  and  latchimmune CMOS techno logies enablerugged ized  monolit hic construction .The logic input is compatible with standard CMOS or LSTTL output,down to 3.3V logic .   The output drivers feature a​ high pulse current buffer stage designed for minimum driver cross-conduction . The floating channel can beused to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates up to 600 V

Product Features

Floating channel designed for bootstrap operation

Fully operational to +600 V

Tolerant to negative transient voltage, dV/dt immune

Gate drive supply range from 10 V to 20 V

Undervoltage lockout for both channels

3.3 V and 5 V input logic compatible

Matched propagation delay for both channels

Logic and power ground +/- 5 V offset

Lower di/dt gate driver for better noise immunity

Output source/sink current capability 1.4 A/1.8 A

RoHS compliant

Product Specification

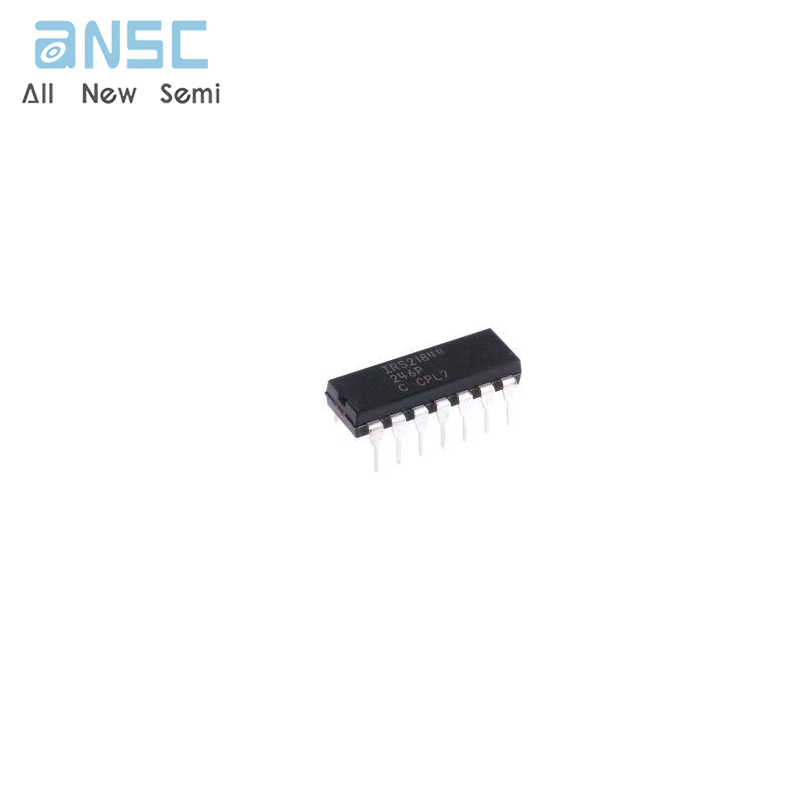

Product Photos

For more product information, please download the PDF
