Hot-selling and scarce ISL9301IRZ High Input Voltage Charger With Power Path Management 10DFN spot stock

Product Descriptions

The ISL9301 is a fully integrated high input voltagesingle-cell Li-ion battery charger with power pathmanagement function . This charger performs the CC/CVcharge function required by Li-ion batteries . The chargeraccepts an input voltage up to 28V but is disabled when theinput voltage exceeds 10.5V OVP threshold . The 28V ratingeliminates the overvoltage protection circuit required in alow-voltage charger. The charge current and the end-of-charge (EOC) current are programmable withexternal resistors . When the battery voltage is lower than2.8V, the charger preconditions the battery with 16% of theprogrammed charge current . When the charge currentreduces to the programmable EOC current level during the

CV charge phase, the EOC indicator (CHG)will toggle tologic HIGH to indicate the end-of-charge condition . Thecharger will continue to charge until the user programmedtimeout interval has elapsed,then the charger is terminated .

The ISL9301 uses separate power paths to supply thesystem load and charge the battery. This feature allows thesystem to immediately operate with a completely dischargedbattery. This feature also allows the charge to terminatewhen the battery is full while continuing to supply the systemwith the input source, thus minimizing unnecessarycharge/discharge cycles and improving the battery life .

Two indication pins (PPR and CHG)allow simple interface toa microprocessor or LEDs .

Product Features

•  Complete Charger for Single-Cell Li-ion/Polymer Batteries

•  Power Path Management Optimize Charge and System Currents

•  Intelligent Timeout Interval Based on Actual Charge Current

•  Integrated Disconnect Switch to Disconnect the Battery

•  1% Charger Output Voltage Accuracy

•  Programmable Charge Current

•  Programmable End-of-Charge Current

•  Charge Current Thermal Foldback for Thermal Protection

•  Trickle Charge for Fully Discharged Batteries

•  28V Maximum Voltage at VIN pin

•  Power Presence and Charge Indications

•  Ambient Temperature Range: -40°C to +85°C

•  10 Ld 3x3 DFN Package

•  Pb-Free (RoHS Compliant)

Product Applications

•  Mobile Phones

•  Blue-Tooth Devices

•  PDAs

•  MP3 Players

•  Stand-Alone Chargers

•  Other Handheld Devices

Product Specifications

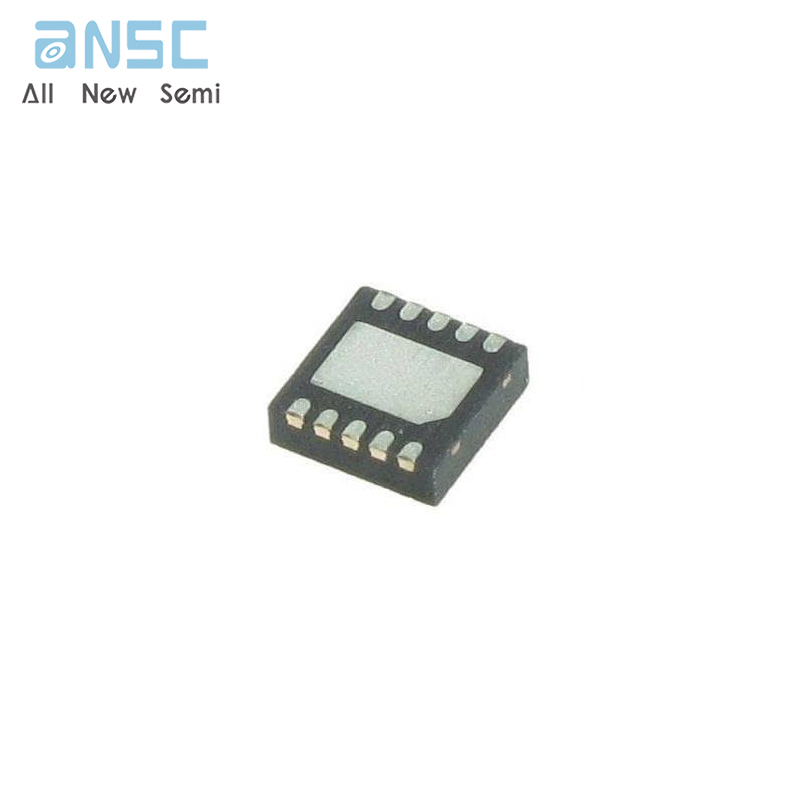

Product Photos

For more product information, please download the PDF
