Hot sale Original MC33063ADG PMIC IC Buck Boost Switching Regulator IC Positive Negative Adjustable 1.25V 1Output 1.5A 8-SOIC

Product Overview

It is designed to provide optimal performance by utilizing the Tube package. There are 8 terminations in this harley voltage regulator. As this regulator voltage is equipped with an analog IC of the type SWITCHING REGULATOR, it is a SWITCHING REGULATOR-type voltage regulator. For space-saving purposes, this voltage regulator is available in the 8-SOIC (0.154, 3.90mm Width) package. A total of 1 outputs are configured in this voltage regulator. On the output pins of this DC DC switching regulator, there is a Adjustable output generated. Surface Mount-mount switching regulator. -40°C~85°C TA should be the operating temperature when voltage regulator is operating. Voltage regulator's switching frequency reaches 33kHz. The voltage regulator can be operated with a voltage as low as 3V as an input voltage. With its peak reflow temperature of 260, this voltage regulator is essentially indestructible. To meet the operation requirements, voltage regulator is designed to provide 5V as the nominal input voltage. In this case, the DC/DC regulator belongs to the family MC33063A. Voltage can be produced at 40V volts by voltage regulator. The switching regulator operation of the system is controlled by 8 pins. In order to use this voltage regulator 12v at its full potential, the output voltage should be kept at at least 1.25V. A maximum output current of 1.5A A is available to meet the switching regulator operation requirements. The maximum voltage of voltage regulator 12v DC DC switching regulator can produce is 40V, which is the highest available. By requiring a minimum voltage of 3VV, adjusting voltage regulator reliable performance is guaranteed. The maximum supply voltage for the voltage regulator 12v is 40V, so DC DC switching regulator can operate with a maximum voltage of 40V. When the frequency is 100kHz, DC DC switching regulator can maintain high accuracy.

Product Features

1 outputs

Peak reflow temperature (Cel) of 260
8 pins

Product Applications

MC33063ADG Voltage Regulators applications.
Ball screw pair
Computer application technology
Network technology
Automation technology
CMM
Various precision measuring instruments
Various precision measuring detectors
Flaw detection equipment
Balance equipment
Industrial robots

  Product Description

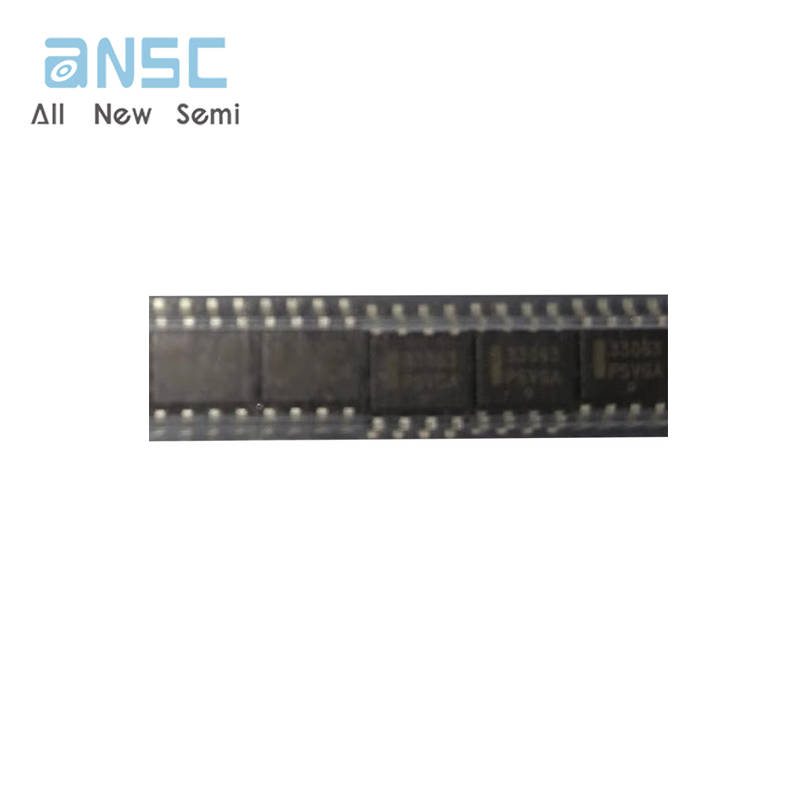

Actual image of the product

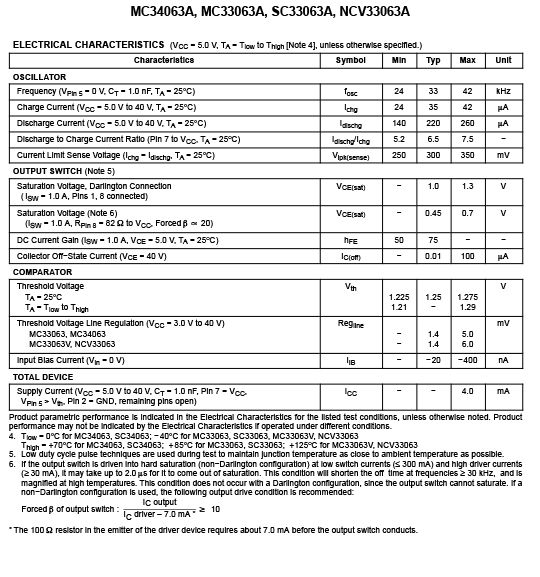

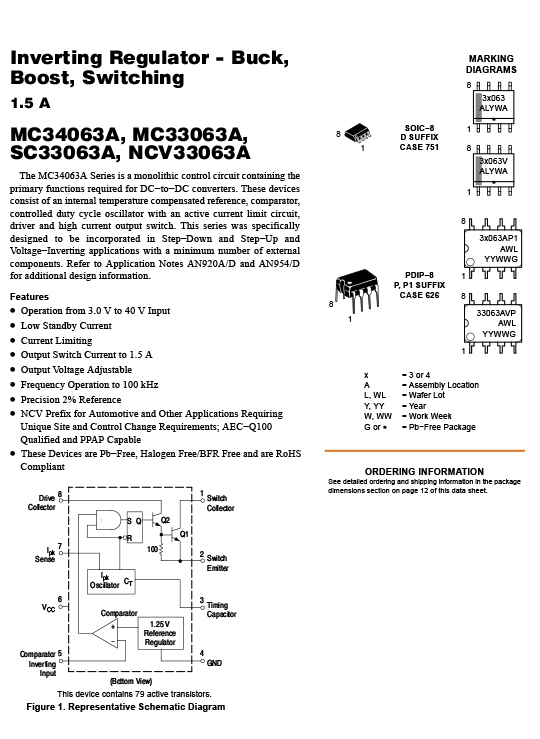

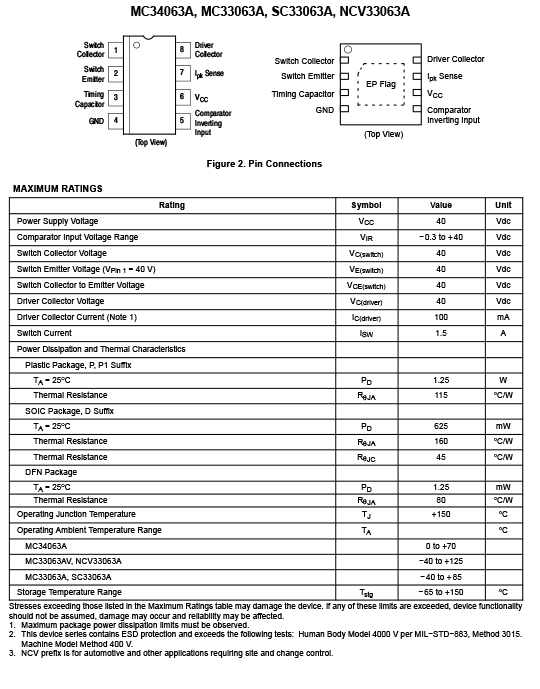

Product datasheet

For more information, please download
