Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
4816P-001-101 100 Ohm ±2% 160mW Power Per Element Isolated 8 Resistor Network/Array 16-SOIC spot stock
Manufacturer Product Number
4816P-001-101
Description
4816P-001-101 100 Ohm ±2% 160mW Power Per Element Isolated
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
n RoHS compliant* (see How to Order“Termination” option)
n Standard EIA package compatible with automatic placement equipment
n Tape and reel packaging standard
n Custom circuits are available
n Compliant leads to reduce solder joint fatiguing
n Standard electrical schematics: isolated, bussed, dual terminator
n AEC-Q200 compliant
n Now available with improved tolerance to ±0.5 %
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-4816P-001-101 |
| Category | Resistors |
| Resistor Networks, Arrays | |
| Manufacturer | - |
| Series | 4800P |
| Packaging | Tube |
| Part Status | Active |
| Circuit Type | Isolated |
| Resistance (Ohms) | 100 |
| Tolerance | ±2% |
| Number of Resistors | 8 |
| Number of Pins | 16 |
| Power Per Element | 160mW |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Grade | Automotive |
| Qualification | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.220", 5.59mm Width) |
| Supplier Device Package | 16-SOM |
| Size / Dimension | 0.440" L x 0.220" W (11.18mm x 5.59mm) |
| Height - Seated (Max) | 0.094" (2.40mm) |
| Base Product Number | 4816P |

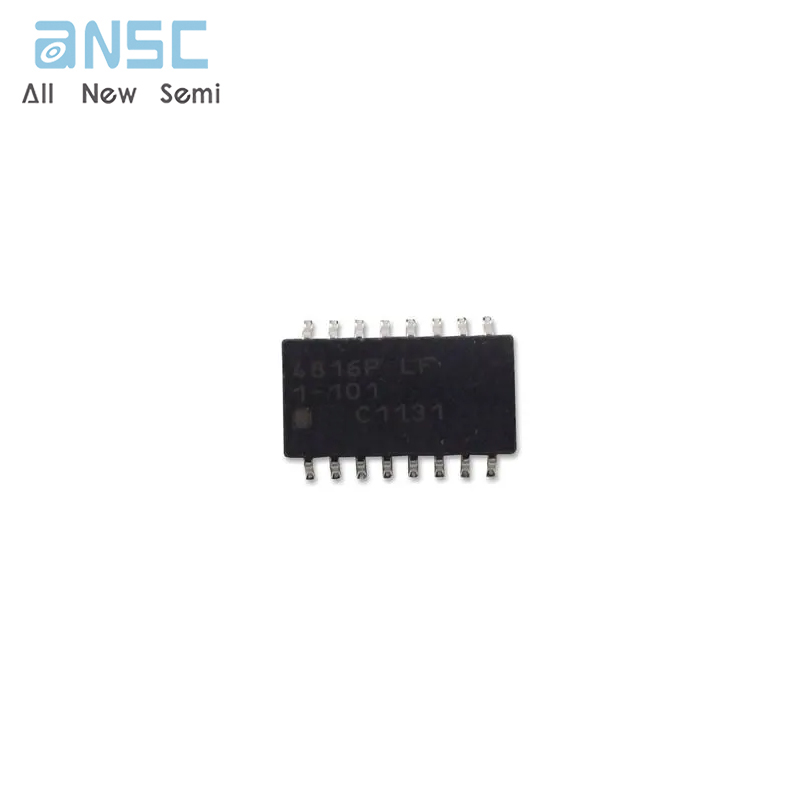

Product Photos
For more product information, please download the PDF
Other Products In The same category:
4816P-001-101 100 Ohm ±2% 160mW Power Per Element Isolated
278In stock:
Can ship immediately
