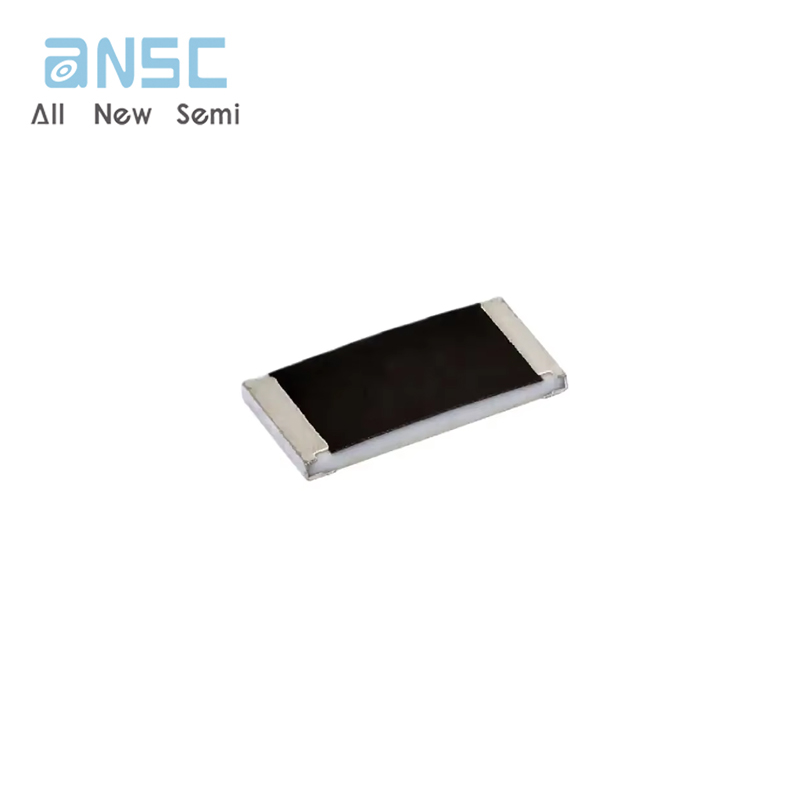

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
One-Stop Supply BOM distribution service electronic components CRCW0402499RFKEDHP Standard Thick Film Chip Resistors
Manufacturer Product Number
CRCW0402499RFKEDHP
Description
CRCW0402499RFKEDHP Chip Resistor RES SMD 499 OHM 1% 1/5W 0402
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
SY88973/SY88982/MIC3001-Based SFP Module
General Description
This evaluation board is an implementation of the SFP module in a different form factor with on board faults indicators (LEDs)
and a DB-25 connector for serial communication.
The design uses Micrels MIC3001 controller, SY88982 (pin compatible with SY88782 and SY88932) driver,
and SY88973 limiting amplifier. A picture of the fully bonded board is shown below.
Features
• Allows for easy and fast evaluation of Micrel’s chipset for SFP module
• On board FAULTs indicators
• Easy access to the components for rework and different options implementation
Product Description
| Type# | Description |
| PART# | CRCW0402499RFKEDHP |
| Category | Resistors |
| Chip Resistor - Surface Mount | |
| Mfr | / |
| Series | CRCW-HP e3 |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Resistance | 499 Ohms |
| Tolerance | ±1% |
| Power (Watts) | 0.2W, 1/5W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Pulse Withstanding |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.016" (0.40mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | CRCW0402 |
Actual image of the product
