Hot sale original AH49FDNTR-G1 Hall Effect Sensor Single Axis U-DFN2020-6 (Type C) SENSOR HALL ANALOG 6UDFN
Manufacturer Product Number
AH49FDNTR-G1
Description
AH49FDNTR-G1 Hall Effect Sensor Single Axis U-DFN2020-6 (Type C) SENSOR HALL ANALOG 6UDFN
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

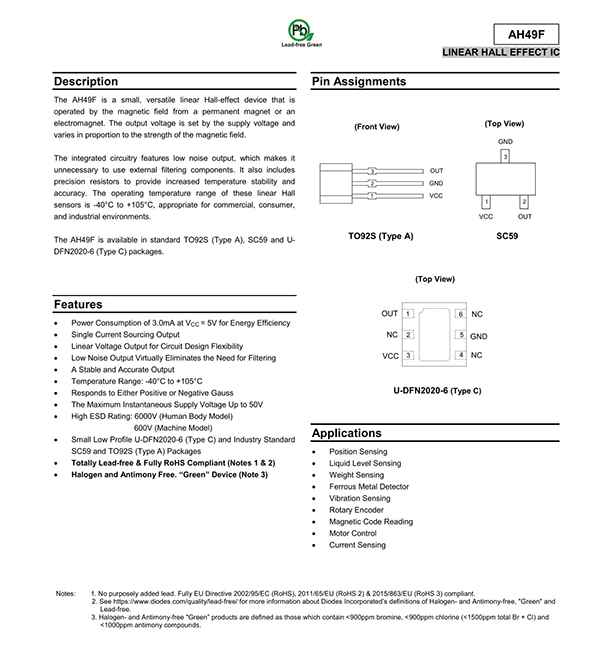

| Description The AH49F is a small, versatile linear Hall-effect device that is operated by the magnetic field from a permanent magnet or an electromagnet. The output voltage is set by the supply voltage and varies in proportion to the strength of the magnetic field. Features • Power Consumption of 3.0mA at VCC = 5V for Energy Efficiency • Single Current Sourcing Output • Linear Voltage Output for Circuit Design Flexibility • Low Noise Output Virtually Eliminates the Need for Filtering • A Stable and Accurate Output • Temperature Range: -40°C to +105°C • Responds to Either Positive or Negative Gauss • The Maximum Instantaneous Supply Voltage Up to 50V • High ESD Rating: 6000V (Human Body Model) 600V (Machine Model) • Small low profile U-DFN2020-6 and Industry Standard SC59 and TO-92S Packages • Totally Lead-free & Fully RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) Applications • Position Sensing • Liquid Level Sensing • Weight Sensing • Ferrous Metal Detector • Vibration Sensing • Rotary Encoder • Magnetic Code Reading • Motor Control • Current Sensing |
Product Description
| Type | Description |
| ANSC PART# | ANSC- AH49FDNTR-G1 |
| Category | Sensors, Transducers |
| Magnetic Sensors | |
| Linear, Compass (ICs) | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Technology | Hall Effect |
| Axis | Single |
| Output Type | Analog Voltage |
| Sensing Range | ±80mT |
| Voltage - Supply | 3V ~ 8V |
| Current - Supply (Max) | 4mA |
| Current - Output (Max) | - |
| Resolution | - |
| Bandwidth | - |
| Operating Temperature | -40°C ~ 105°C |
| Features | - |
| Supplier Device Package | U-DFN2020-6 (Type C) |
| Mounting Type | Surface Mount |
| Package / Case | 6-UDFN Exposed Pad |
| Base Product Number | AH49 |

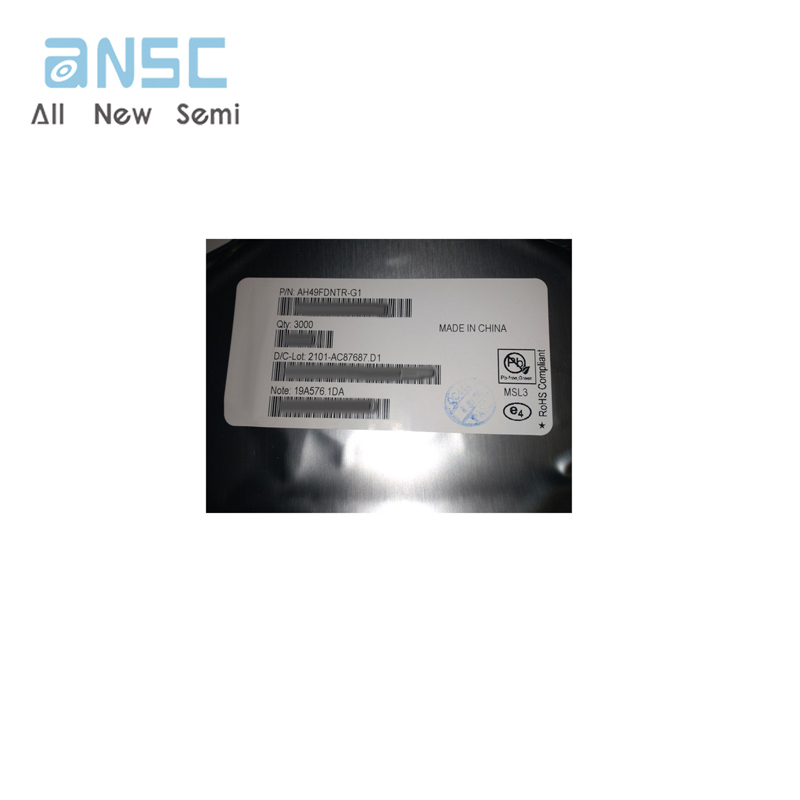

Product Photos

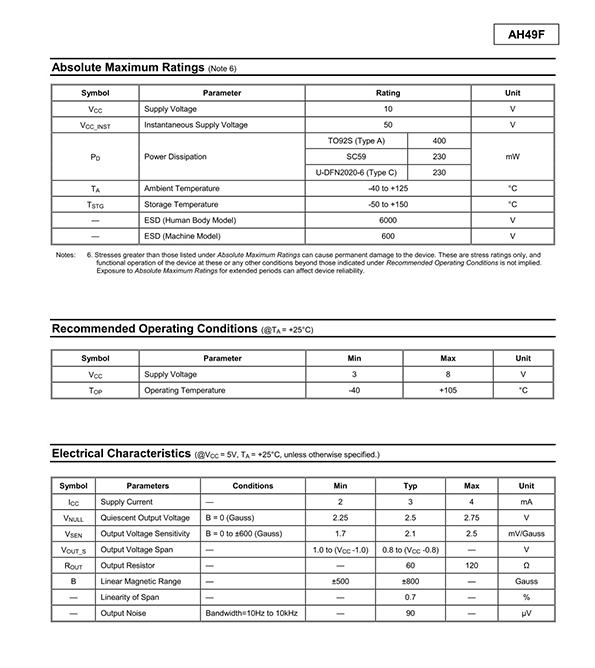

Product datasheet
For more information, please download
