You can contact me for the best price MK06-5-C Photoelectric Sensor Rectangular Through Hole Mount Transducer Hot sale Original
Manufacturer
Manufacturer Product Number
MK06-5-C
Description
Original MK06-5-C Photoelectric Sensor Rectangular Through Hole Mount Sensors/Transducer Hot sale Original
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Description The MK06-5-C is a high-performance magnetic reed switch designed by Standex-Meder Electronics. This switch is part of the MK06 series, known for its reliability and versatility in various applications. The MK06-5-C features a molded body with a compact size, making it ideal for use in a wide range of electronic devices. Features Compact Design: The switch measures 0.563L x 0.110W x 0.126H (14.30mm x 2.80mm x 3.20mm), making it suitable for space-constrained environments. High Current Rating: The MK06-5-C can handle up to 1.25A of current, ensuring reliable operation in demanding applications. Low Contact Resistance: With a contact resistance of 150mOhm, this switch provides efficient switching performance. Magnetic Sensing Method: Utilizing magnetic sensing, the MK06-5-C is highly sensitive and responsive to changes in magnetic fields. Operational Range: The switch operates within a range of 15 ~ 20AT, offering flexibility in various magnetic field conditions. Fast Switching Times: The operate time is 0.6ms, and the release time is 0.05ms, ensuring quick and reliable switching operations. Environmental Durability: The PBT glass fiber reinforced housing ensures robustness against environmental stressors. Compliance with Regulations: The MK06-5-C is ROHS3 compliant and has a moisture sensitivity level (MSL) of 1, indicating unlimited exposure to moisture during storage and handling. Applications Primary Applications: Automotive Systems: The MK06-5-C can be used in various automotive systems such as ignition systems, door locks, and other safety features. Industrial Automation: Its high current rating and fast switching times make it suitable for industrial automation applications like sensors and control systems. Medical Devices: The compact size and reliability of the MK06-5-C make it an excellent choice for medical devices requiring precise control mechanisms. Secondary Applications: Consumer Electronics: The switch can be used in consumer electronics such as remote controls, gaming devices, and other appliances requiring magnetic sensing. Aerospace and Defense: Its robust design and high reliability make it suitable for use in aerospace and defense applications where precision is crucial. |
Product Description
| Type | Description |
| ANSC PART# | ANSC - MK06-5-C |
| Category | Switches |
| Magnetic, Reed Switches | |
| Manufacturer | Original |
| Series | MK06 |
| Packaging | Bulk |
| Part Status | Active |
| Type | Molded Body Reed |
| Circuit | SPST-NO |
| Operate Range | 15 ~ 20AT |
| Release Range | - |
| Current - Switching | 400mA (AC/DC) |
| Voltage - Switching AC | 200 V |
| Voltage - Switching DC | 200 V |
| Power - Rated | 10W |
| Operate Time | 0.6 ms |
| Release Time | 0.05 ms |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Length - Overall | 0.563" (14.30mm) |
| Size - Body | 0.563" L x 0.110" W x 0.126" H (14.30mm x 2.80mm x 3.20mm) |
| Height Above Board | 0.126" (3.20mm) |
| Operating Temperature | -20°C ~ 85°C |
| Capacitance | 0.2 pF |
| Current - Carry | 500mA (AC/DC) |

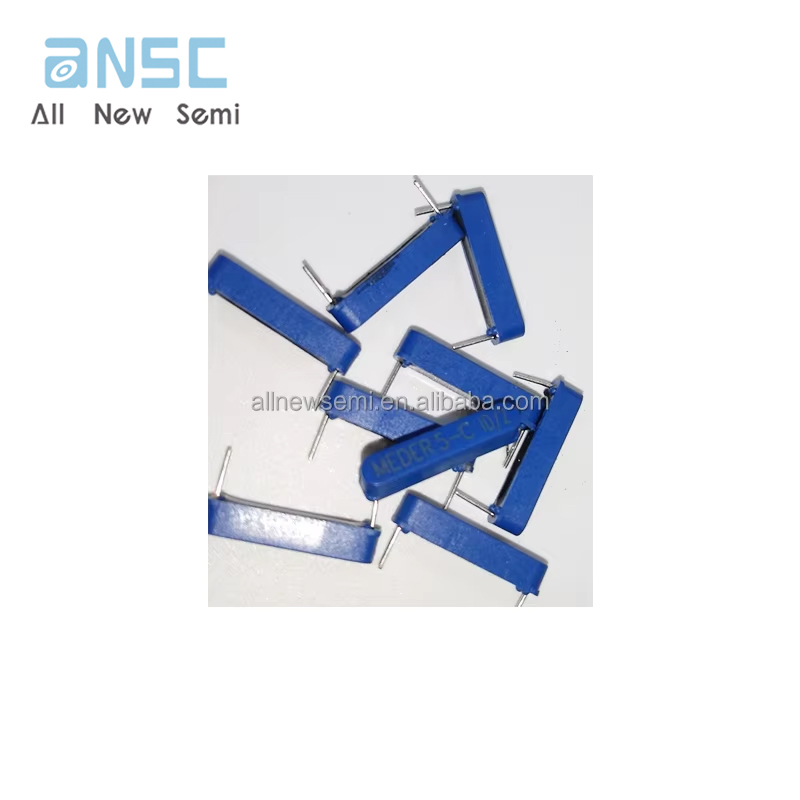

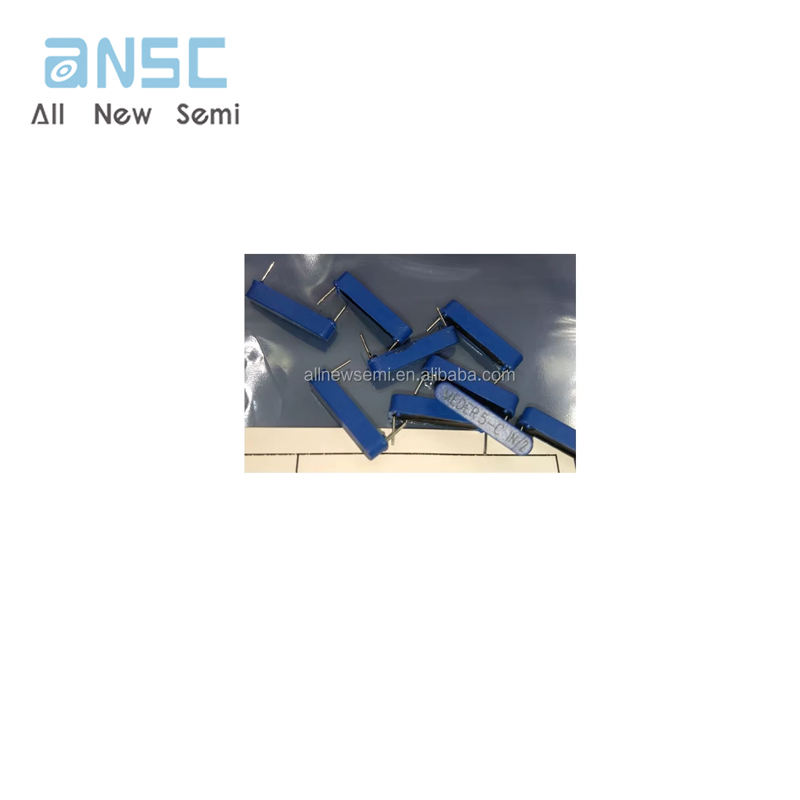

Actual image of the product

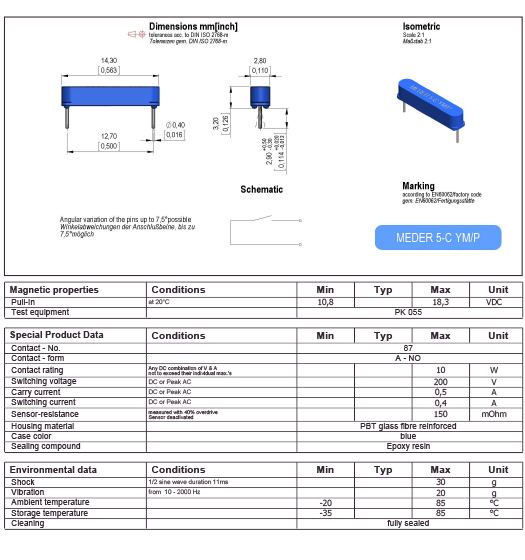

Product datasheet
For more information, please download
