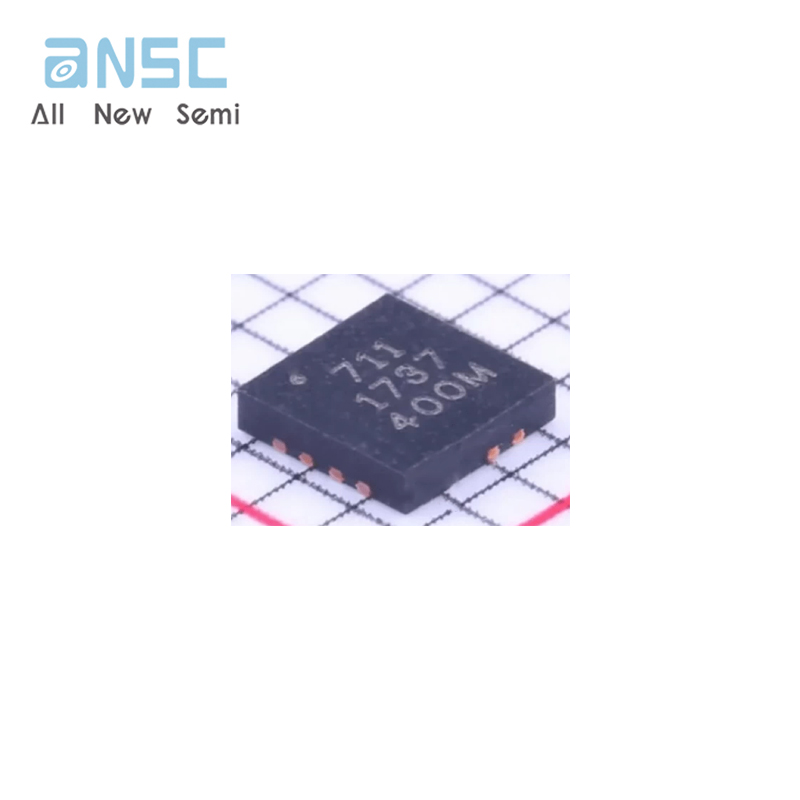

Hot sale Original ACS711KEXLT-15AB-T Current Sensor 15.5A 1 Channel Hall Effect, Open Loop Bidirectional 12-PowerWFQFN
Manufacturer Product Number
ACS711KEXLT-15AB-T
Description
Original ACS711KEXLT-15AB-T Current Sensor 15.5A 1 Channel Hall Effect, Open Loop Bidirectional 12-PowerWFQFN SENSOR CURRENT HALL 15.5A AC/DC
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

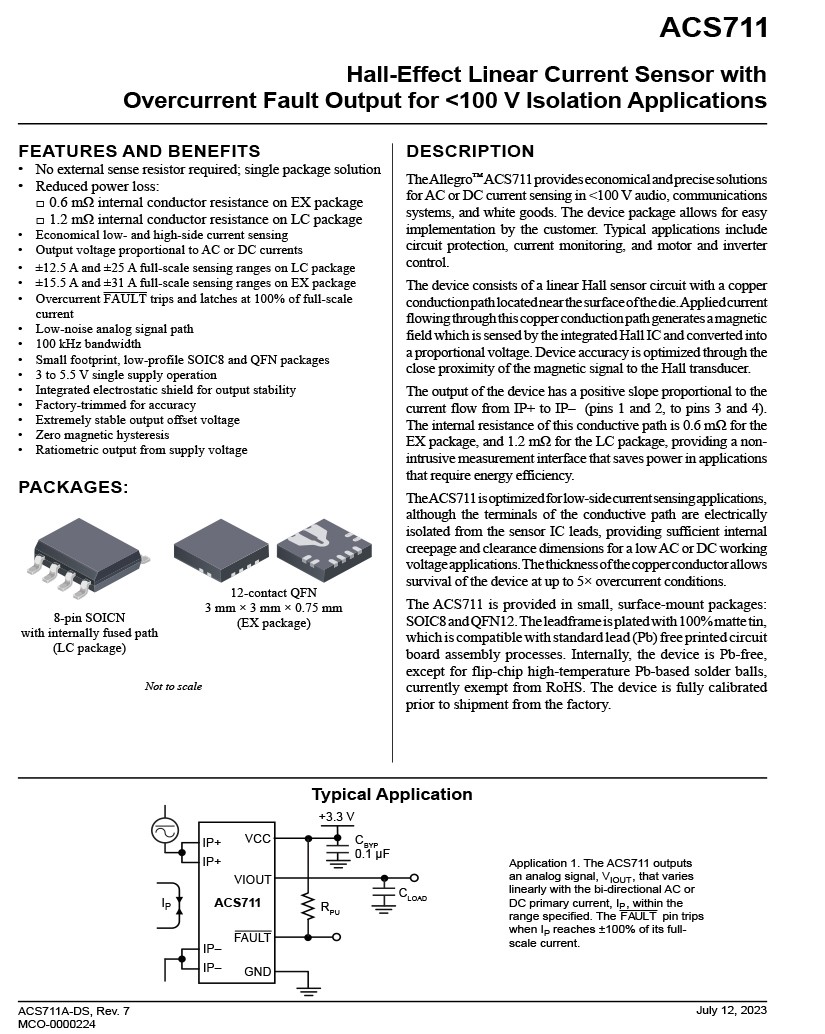

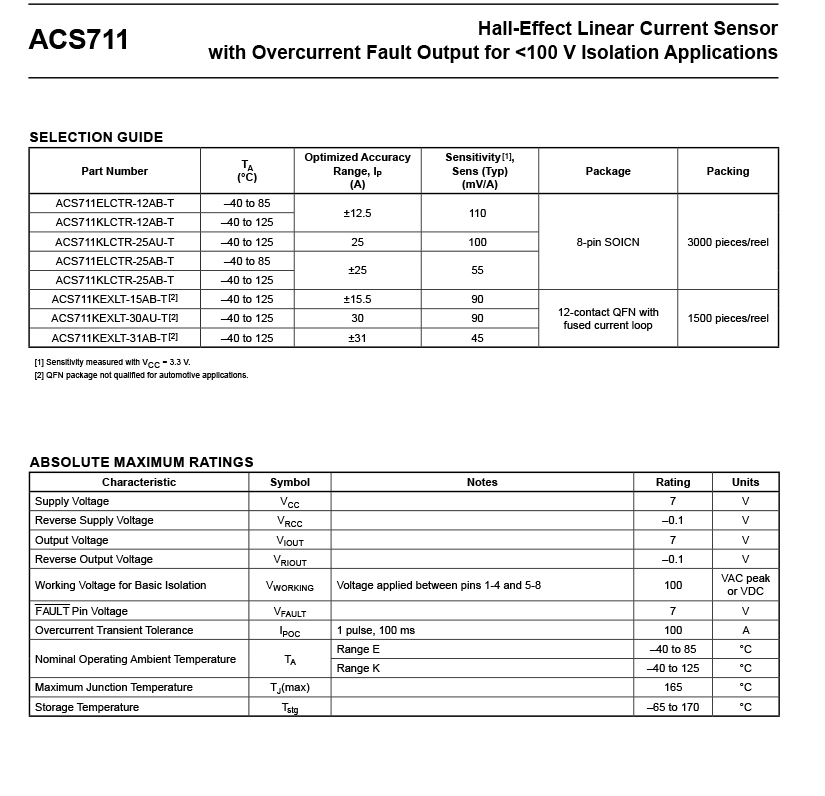

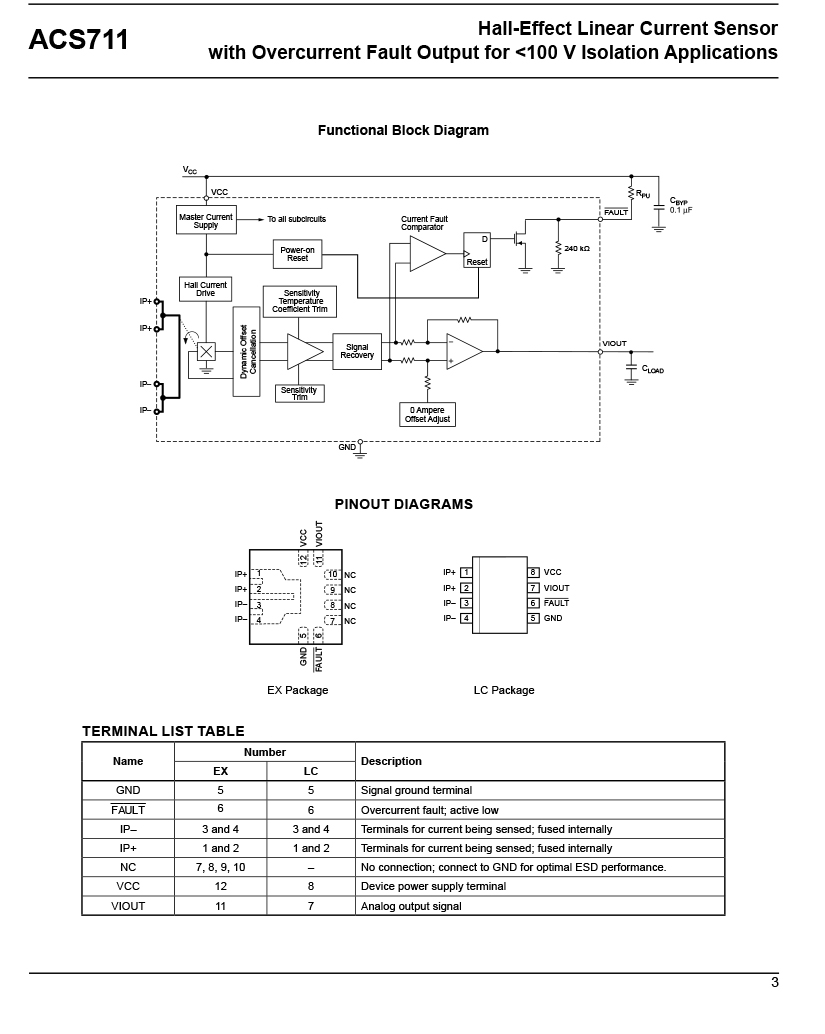

| Description The ™ACS711 provides economical and precise solutions for AC or DC current sensing in <100 V audio, communications systems, and white goods. The device package allows for easy implementation by the customer. Typical applications include circuit protection, current monitoring, and motor and inverter control. ▪No external sense resistor required; single package solution ▪Reduced Power Loss: ▫0.6 mΩinternal conductor resistance on EX package ▫1.2 mΩinternal conductor resistance on LC package ▪Economical low- and high-side current sensing ▪Output voltage proportional to AC or DC currents ▪±12.5 A and ±25 A full scale sensing ranges on LC package ▪±15.5 A and ±31 A full scale sensing ranges on EX package ▪Overcurrent ¯F¯ ¯A¯ ¯U¯ ¯L¯ ¯T¯trips and latches at 100% of full-scale current ▪Low-noise analog signal path ▪100 kHz bandwidth ▪Small footprint, low-profile SOIC8 and QFN packages ▪3.0 to 5.5 V, single supply operation ▪Integrated electrostatic shield for output stability ▪Factory-trimmed for accuracy ▪Extremely stable output offset voltage ▪Zero magnetic hysteresis ▪Ratiometric output from supply voltage |
Product Description
| Type | Description |
| ANSC PART# | ANSC - ACS711KEXLT-15AB-T |
| Category | Sensors, Transducers |
| Current Sensors | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Open Loop |
| Current - Sensing | 15.5A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | 90mV/A |
| Frequency | DC ~ 100kHz |
| Linearity | ±1% |
| Accuracy | ±5% |
| Voltage - Supply | 3V ~ 5.5V |
| Response Time | 4.6µs |
| Current - Supply (Max) | 5.5mA |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Bidirectional |
| Mounting Type | Surface Mount |
| Package / Case | 12-PowerWFQFN |
| Supplier Device Package | 12-QFN (3x3) |
| Base Product Number | ACS711 |
