Gas oxygen sensor KE-50 electrochemical sensor
Manufacturer
Manufacturer Product Number
KE-50
Description
Gas oxygen sensor KE-50 electrochemical sensor
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
Main features of oxygen sensor KE-50:
·Long life (KE-50 10 years)
·Not affected by CO2, CO, H2S, NOx, H2
·Low cost
·Work at room temperature
·Stable signal output
·No external power supply required
·No heating required

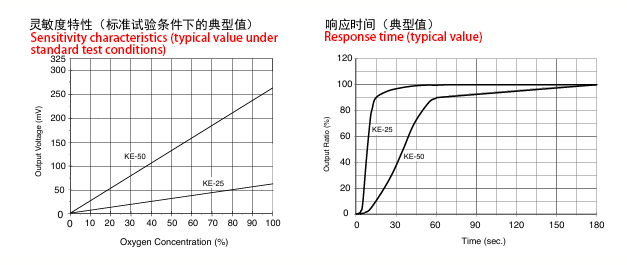

Oxygen sensor KE-50 product performance parameters:
Measuring range 0-99% O2
Accuracy ±2% (full range) KE-50
Working temperature 5–40 ℃
Storage temperature -20–+60 ℃
Response time KE-50 60±5 seconds
Initial output KE-50 47.0-66.0mv
Expected life KE-50 10 years
Product Applications
Medical
Biology: Oxygen incubator
Food industry: cold storage room, greenhouse
Safety industry: air conditioning oxygen detector fire detection
Power industry: SF6 power switch cabinet, oxygen detection
Product Photos

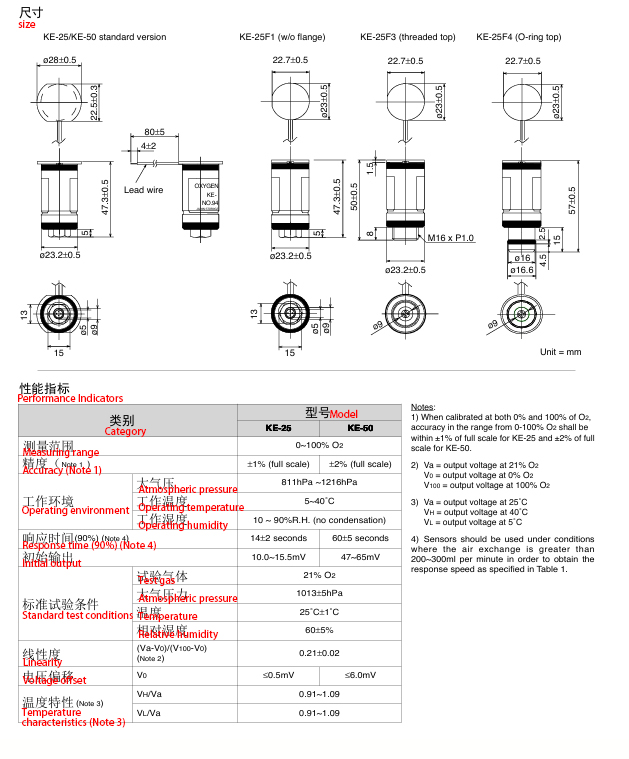

| Specifications: KE-50 |
| Resolution: 1 |
| Accuracy: ±5% |
| Measurement range: 100% |
| Detectable gas type: O2 |
| Working voltage: 5V |
| Working current: 20mA |
| Working humidity: 5~95%RH (non-condensing) |
| Working temperature: 25 |
| Power supply current: 20 |
| Power supply voltage: 5 |
| Sensor type: electrochemical sensor |
| Packaging specification: 1 |
| Output signal: microcurrent |

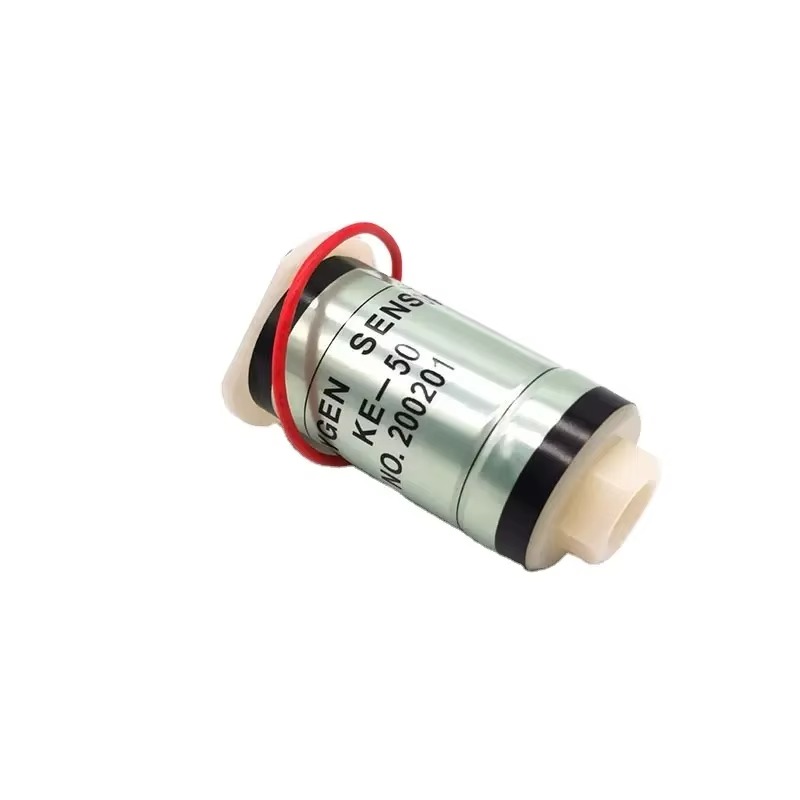

Actual image of the product
