Hot sale Original DS1722U+T&R Temperature Sensors Analog and Digital Output Digital, Local SPI Surface Mount 8-uMAX/uSOP
Manufacturer Product Number
DS1722U+T&R
Description
DS1722U+T&R Temperature Sensor Digital, Local -55°C ~ 120°C 11 b 8-uMAX/uSOP
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

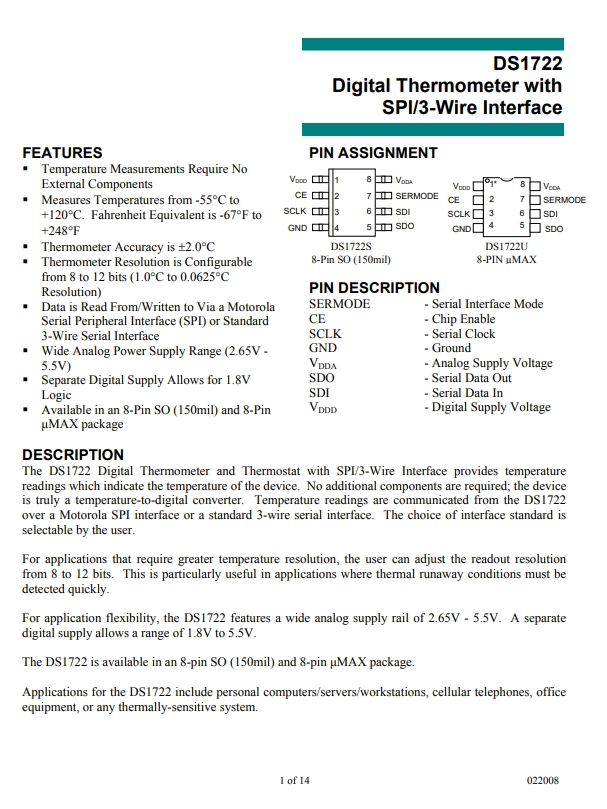

| DESCRIPTION The DS1722 Digital Thermometer and Thermostat with SPI/3-Wire Interface provides temperature readings which indicate the temperature of the device. No additional components are required; the device is truly a temperature-to-digital converter. Temperature readings are communicated from the DS1722 over a Motorola SPI interface or a standard 3-wire serial interface. The choice of interface standard is selectable by the user. FEATURES■ Temperature Measurements Require No External Components ■ Measures Temperatures from -55°C to +120°C. Fahrenheit Equivalent is -67°F to +248°F ■ Thermometer Accuracy is ±2.0°C ■ Thermometer Resolution is Configurable from 8 to 12 bits (1.0°C to 0.0625°C Resolution) ■ Data is Read From/Written to Via a Motorola Serial Peripheral Interface (SPI) or Standard 3-Wire Serial Interface ■ Wide Analog Power Supply Range (2.65V - 5.5V) ■ Separate Digital Supply Allows for 1.8V Logic ■ Available in an 8-Pin SO (150mil) and 8-Pin μMAX package S |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - DS1722U+T&R |
| Category | Sensors, Transducers |
| Temperature Sensors | |
| Analog and Digital Output | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Sensor Type | Digital, Local |
| Sensing Temperature - Local | -55°C ~ 120°C |
| Sensing Temperature - Remote | - |
| Output Type | SPI |
| Voltage - Supply | 1.8V ~ 5.5V, 2.65V ~ 5.5V |
| Resolution | 11 b |
| Features | One-Shot, Programmable Resolution, Shutdown Mode |
| Accuracy - Highest (Lowest) | ±2°C (±3°C) |
| Test Condition | -40°C ~ 85°C (-55°C ~ 120°C) |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-uMAX/uSOP |
| Base Product Number | DS1722 |

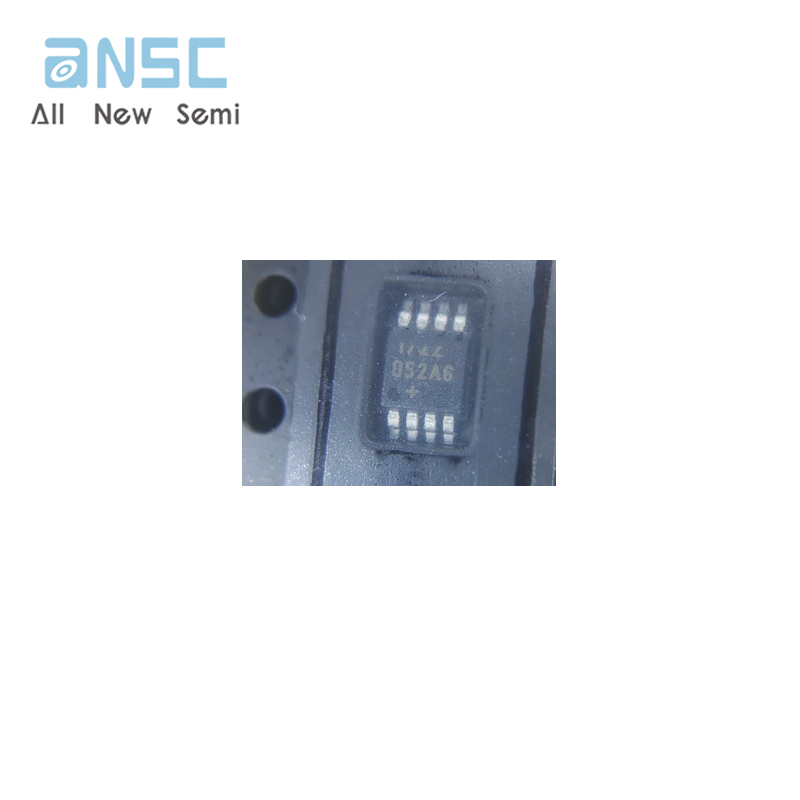

Actual image of the product

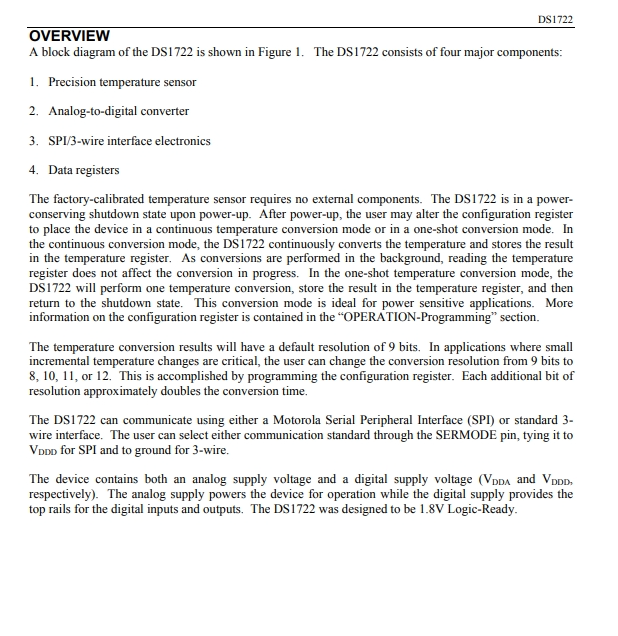

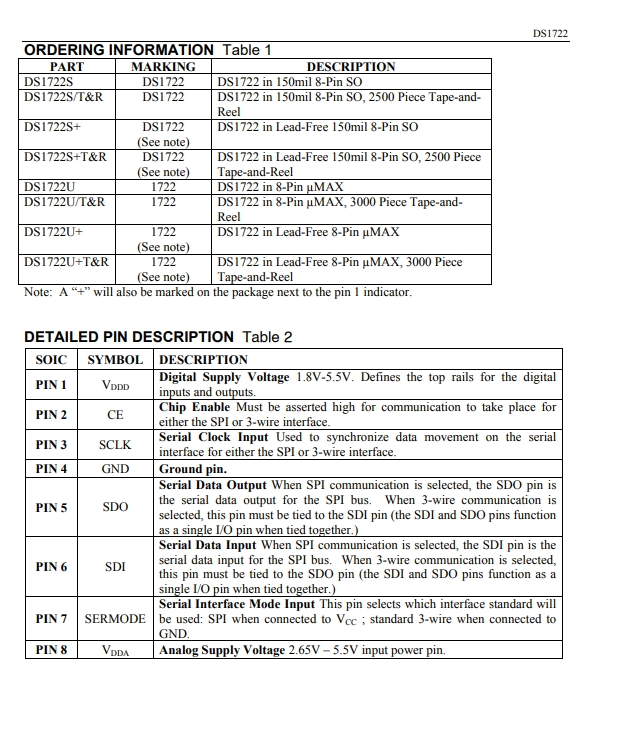

Product datasheet
