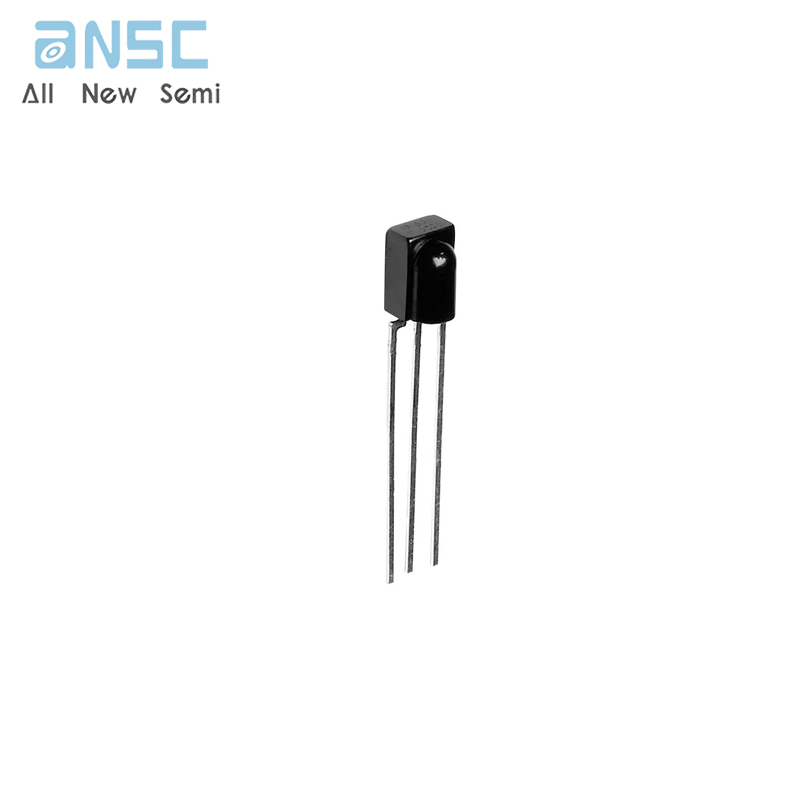

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce TSOP58438 IR Receiver Modules for Remote Control Systems DIP3 spot stock
Manufacturer Product Number
TSOP58438
Description
TSOP58438 IR Receiver Modules for Remote Control Systems DIP3 spot stock
Package Condition
Bulk
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The TSOP582.., TSOP584.. series are miniaturized receivers for infrared remote control systems. A PIN diode and a preamplifier are assembled on a lead frame, the epoxy package acts as an IR filter.
The demodulated output signal can be directly decoded by a microprocessor. The TSOP582.. is compatible with all common IR remote control data formats. The TSOP584.. is optimized to suppress almost all spurious pulses from energy saving fluorescent lamps but will also suppress some data signals.
This component has not been qualified according to automotive specifications.
Product Features
• Low supply current
• Photo detector and preamplifier in one package
• Internal filter for PCM frequency
• Improved shielding against EMI
• Supply voltage: 2.7 V to 5.5 V
• Improved immunity against ambient light
• Insensitive to supply voltage ripple and noise
• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TSOP58438 |
| Category | Sensors, Transducers |
| Optical Sensors | |
| Photo Detectors - Remote Receiver | |
| Manufacturer | - |
| Packaging | Bulk |
| Part Status | Active |
| Sensing Distance | 40m |
| B.P.F. Center Frequency | 38.0kHz |
| Voltage - Supply | 2.5 V ~ 5.5 V |
| Current - Supply | 700 µA |
| Orientation | Side View |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 85°C |
| Base Product Number | TSOP58438 |

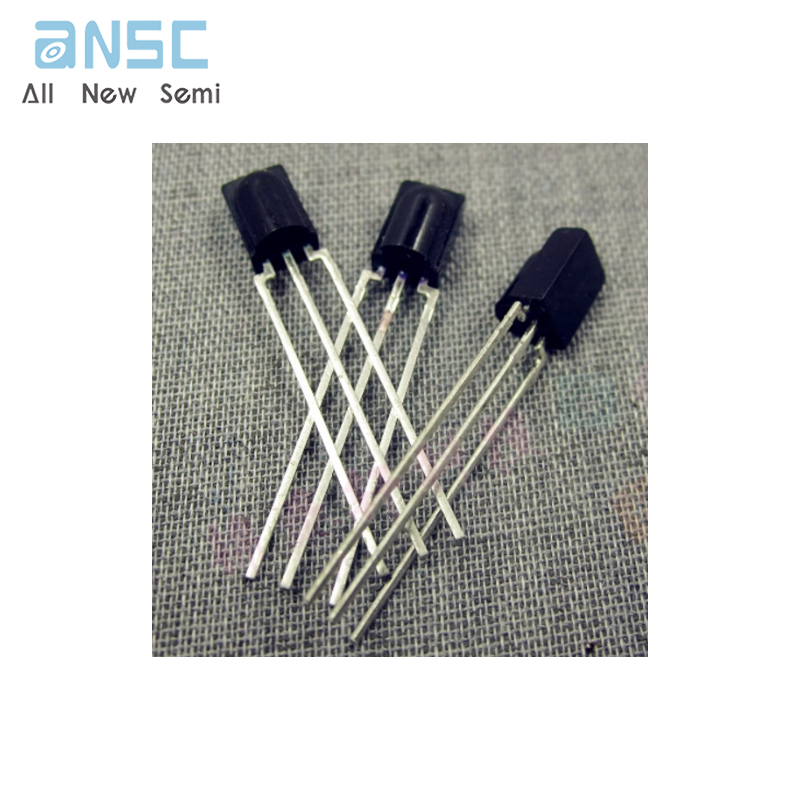

Product Photos
For more product information, please download the PDF
