Single beam infrared beam detector ABO-20 outdoor waterproof infrared anti-theft alarm gate signal sensor

Product Details

ABO-20 IP55 waterproof infrared beam sensor single photoelectric detector active infrared alarm host 20m infrared detector

This single infrared beam alarm can be installed on gates, automatic doors, sliding doors or switch-sensitive doors, or installed at home for anti-theft, and has a wide range of applications. Come on, give it a try, it won't let you down.

IP55 waterproof rating, can also be used outdoors or in humid areas, rain will not affect normal use

Then install on both sides of doors and windows, and the host is installed indoors. When someone turns off the infrared beam, the host will sound an alarm

The detection distance can reach 20m, and the long detection distance can meet the use of most automatic doors or sliding doors and windows.

Wide application: The tool can be installed on the gate system, automatic door, sliding door or switch induction door, and can also be installed at home for anti-theft

Small size, easy to install, no need for too much professional skills

Product Specifications

Material: ABS

Power supply: DC 12~24V

Detection distance: ≤20m

Input current:

Transmitter: 30mA

Receiver: 15mA

Wavelength: 940 nm

Frequency: 1.92KHz

Maximum load: A1 36V

Relay output: NC/NO switch adjustable

Product size: 76 * 49.2 * 21.6mm / 3.0 * 1.9 * 0.9in

Note: The host is not included, you need to purchase the host yourself.

Product Description

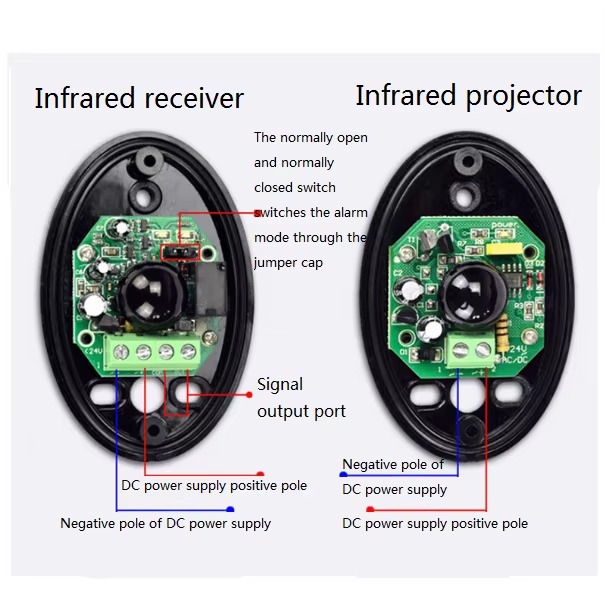

Actual image of the product

​
