Hot offer BOM distribution service electronic components 26PC01SMT Microstructure Pressure SENSOR 1PSIC 0.07" .0167V
Manufacturer Product Number
26PC01SMT
Description
26PC01SMT Pressure Sensor ±1PSI (±6.89kPa) Compound Male 4-SMD Module
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Product Description:
The Sensing and Productivity Solutions 26PC01SMT is a high-precision pressure sensor designed for board mount applications. This compact, surface-mount device features a temperature-compensated Wheatstone bridge output, providing accurate pressure measurements within ±1.75% of the measured value.
Features:
-
Temperature-compensated for reliable performance across a wide operating temperature range (-40°C to 85°C)
-
Compact 4-SMD module design with a height of 7.87mm, length of 7.11mm, and width of 6.1mm
-
Operating supply voltage range of 2.5V to 16V, with a rated voltage of 10V
-
Output voltage range of 0mV to 16.7mV (10V) with a response time of 1ms
-
Lead-free and RoHS compliant, ensuring environmental sustainability
-
Matte tin (Sn) terminal finish and gull-wing termination style for easy soldering
Applications:
-
Primary applications: Industrial automation, medical devices, and aerospace systems where precise pressure measurements are critical
-
Secondary applications: Consumer electronics, automotive systems, and IoT devices requiring reliable pressure sensing
Product Description
| Type# | Description |
| PART# | 26PC01SMT |
| Category | Sensors, Transducers |
| Pressure Sensors, Transducers | |
| Manufacturer | / |
| Series | 26PC SMT |
| Packaging | Tube |
| Part Status | Active |
| Applications | Board Mount |
| Pressure Type | Compound |
| Operating Pressure | ±1PSI (±6.89kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 16.7 mV (10V) |
| Accuracy | ±1.75% |
| Voltage - Supply | 2.5V ~ 16V |
| Port Size | Male - 0.07" (1.88mm) Tube |
| Port Style | Barbless |
| Features | Temperature Compensated |
| Termination Style | Gull Wing |
| Maximum Pressure | ±20PSI (±137.9kPa) |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD Module |
| Supplier Device Package | - |
| Base Product Number | 26PC01 |

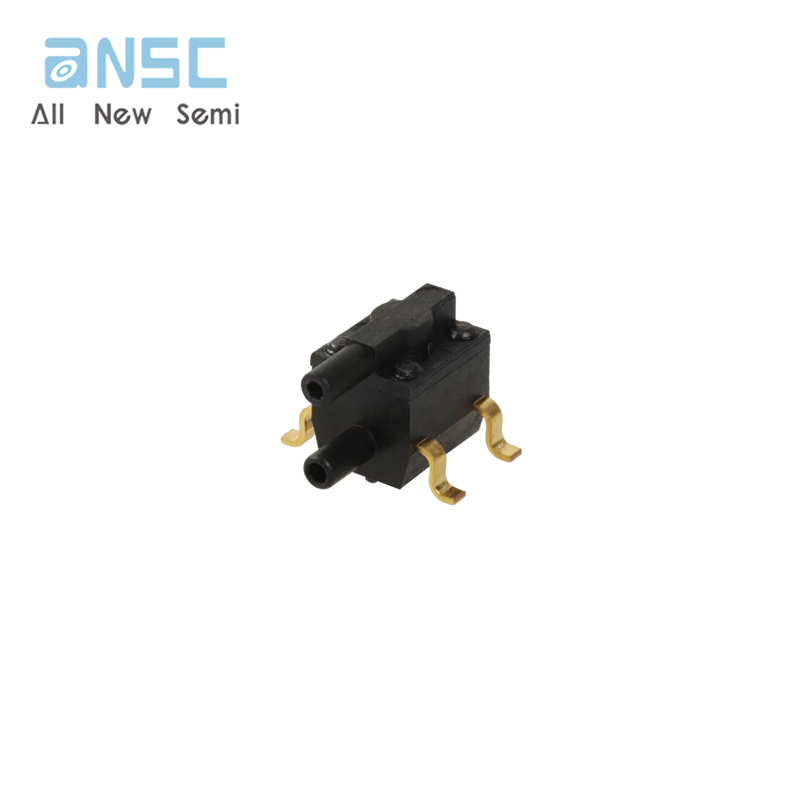

Actual image of the product
