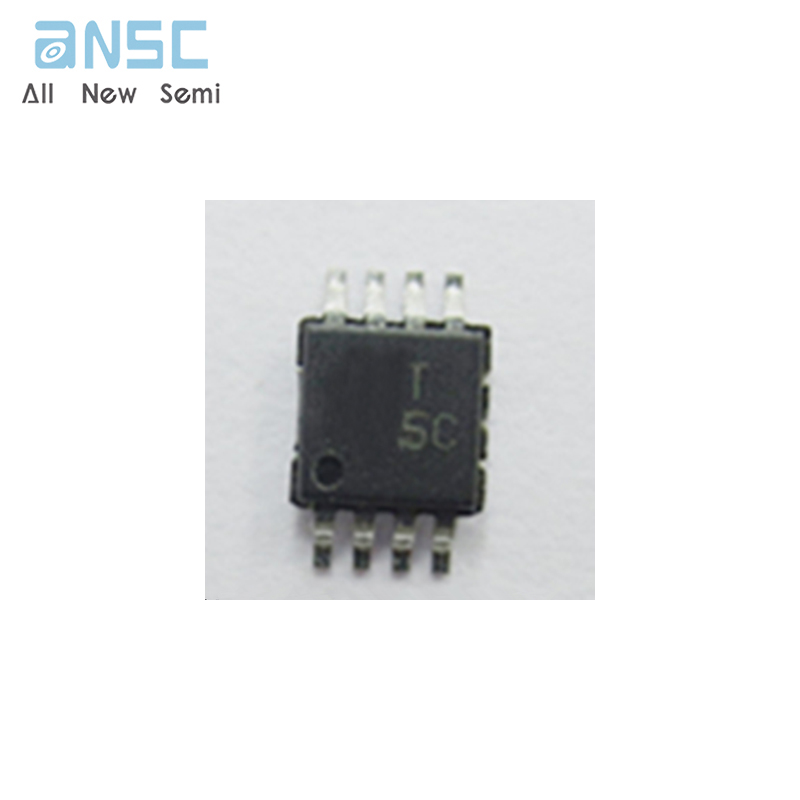

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce ADT75BRMZ 12-Bit Digital Temperature Sensor MSOP8 spot stock
Manufacturer Product Number
ADT75BRMZ
Description
ADT75BRMZ 12-Bit Digital Temperature Sensor MSOP8 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The ADT75 is a complete temperature monitoring system in 8-leadMSOP and SOIC packages.It contains a bandgap temperature sensor and 12-bit ADC to monitor and digitize the temperature to aresolution of 0.0625°C.The ADT75 is pin and register compatiblewith the LM75 and AD7416 .
The ADT75 is guaranteed to operate at supply voltages from 3 Vto 5.5 V. Operating at 3.3 V,the average supply current is typically200 μA .
The ADT75 offers a shutdown mode that powers down thedevice and gives a shutdown current of typically 3 μA . TheADT75 is rated for operation over the –55°C to +125°Ctemperature range .
Pin A0, Pin A1,and Pin A2 are available for address selection .TheOS/ALERT pin is an open-drain output that becomes active whentemperature exceeds a programmable limit.The OS/ALERT pincan operate in either comparator or interrupt mode.
Product Features
12-bit temperature-to-digital converter
B grade accuracy ±1.0°C from 0°C to 70°C
A grade accuracy ±2.0°C from –25°C to +100°C
SMBus/I2C-compatible interface
Operation from −55°C to +125°C
Operation from 3 V to 5.5 V
Overtemperature indicator
Shutdown mode for low power consumption
Power consumption 79 μW typically at 3.3 V
Small, low cost 8-pin MSOP in Pb-Sn and Pb-free packages
Standard 8-pin SOIC Pb-free package
Product Applications
Isolated sensors
Environmental control systems
Computer thermal monitoring
Thermal protection
Industrial process control
Power-system monitors
Hand-held applications
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ADT75BRMZ |
| Category | Sensors, Transducers |
| Temperature Sensors | |
| Analog and Digital Output | |
| Manufacturer | - |
| Packaging | Tube |
| Part Status | Active |
| Sensor Type | Digital, Local |
| Sensing Temperature - Local | -55°C ~ 125°C |
| Output Type | I2C/SMBus |
| Voltage - Supply | 2.7V ~ 5.5V |
| Resolution | 12 b |
| Features | One-Shot, Output Switch, Programmable Limit, Shutdown Mode |
| Accuracy - Highest (Lowest) | ±1°C (±3°C) |
| Test Condition | 0°C ~ 70°C (-55°C ~ 100°C) |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| Base Product Number | ADT75 |
Product Photos
For more product information, please download the PDF
