Hot-selling and scarce LIS2DHTR ultra low-power high performance 3-axis “femto” accelerometer LGA14 spot stock

Product Descriptions

The LIS2DH is an ultra low-power high  performance three-axis linear accelerometer  belonging to the “femto” family, with digital I2C/SPI  serial interface standard output.

The LIS2DH has dynamically user selectable full  scales of ±2g/±4g/±8g/±16g and it is capable of  measuring accelerations with output data rates  from 1 Hz to 5.3 kHz.

The self-test capability allows the user to check  the functioning of the sensor in the final  application.

The device may be configured to generate  interrupt signals by two independent inertial  wake-up/free-fall events as well as by the position  of the device itself.

The LIS2DH is available in small thin plastic land  grid array package (LGA) and is guaranteed to  operate over an extended temperature range from  -40 °C to +85 °C.

Product Features

■ Wide supply voltage, 1.71 V to 3.6 V

■ Independent IOs supply (1.8 V) and supply voltage compatible

■ Ultra low-power mode consumption down to 2 µA

■ ±2g/±4g/±8g/±16g dynamically selectable full scale

■ I2C/SPI digital output interface

■ 2 independent programmable interrupt generators for free-fall and motion detection

■ 6D/4D orientation detection

■ “Sleep to wake” and “return to sleep” function

■ Freefall detection

■ Motion detection

■ Embedded temperature sensor

■ Embedded FIFO

■ ECOPACK® RoHS and “Green” compliant

Product Applications

■ Motion activated functions

■ Display orientation

■ Shake control

■ Pedometer

■ Gaming and virtual reality input devices

■ Impact recognition and logging

Product Specification

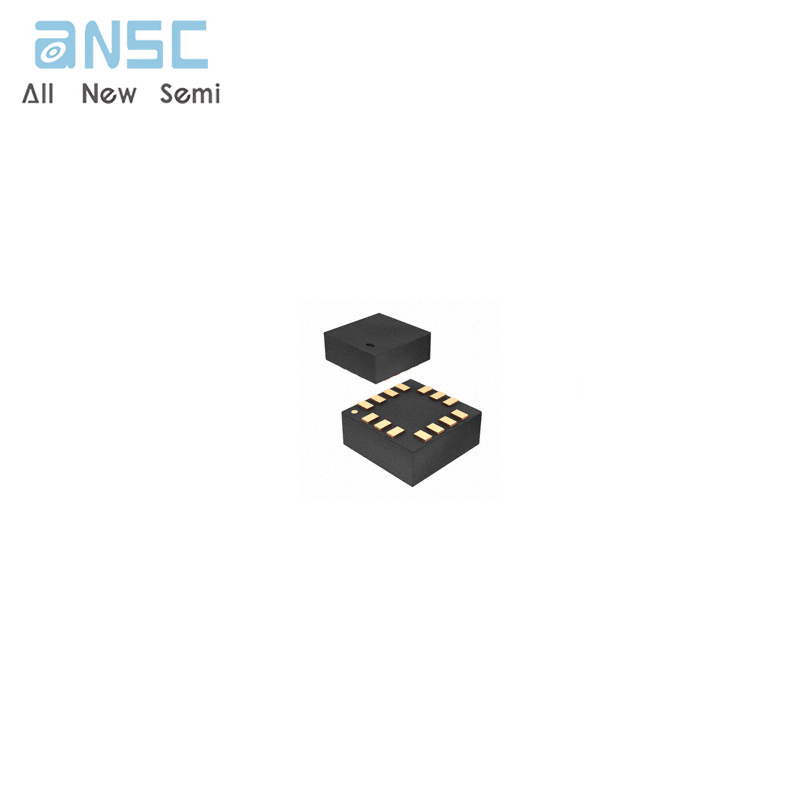

Product Photos

For more product information, please download the PDF
