Infrared sensor module Carbon dioxide gas monitoring digital sensor MH-Z19C
Manufacturer
Manufacturer Product Number
MH-Z19C
Description
Infrared sensor module Carbon dioxide gas monitoring digital sensor MH-Z19C
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
MH-Z19C carbon dioxide gas sensor (hereinafter referred to as sensor) is a general intelligent small sensor, which uses the principle of non-dispersive infrared (NDIR) to detect CO2 in the air. It has good selectivity, no oxygen dependence, long life, etc.; built-in temperature compensation; serial output, analog output, PWM output, easy to use. This sensor is a high-performance sensor made by combining mature infrared absorption gas detection technology with precise optical path design and excellent circuit design.
Product Features
The air chamber is gold-plated
Provides serial port (UART), PWM waveform and other output methods
Anti-water vapor interference, no poisoning, long service life
Product Applications
Main applications: HVAC equipment, air quality monitoring equipment,
fresh air system, air purification equipment, smart home, school
Product Description
| Product model | MH-Z19C |
| Detection gas | Carbon dioxide |
| Supply voltage | DC(5.0±0.1)V |
| Average current | <40mA (@5V power supply) |
| Peak current | 125 mA (@5V power supply) |
| Interface level | 3.3V (compatible with 5V) |
| Measurement range | 400~10000ppm optional (see Table 2 for details) |
| Output signal | Serial port (UART) (TTL level 3.3V) |
| PWM | |
| Warm-up time | 1min |
| Response time | T90 < 120s |
| Operating temperature | -10℃～50℃ |
| Operating humidity | 0～95%RH (no condensation) |
| Storage temperature | -20℃～60℃ |
| Weight | 5 g |
| Life | >10 years |

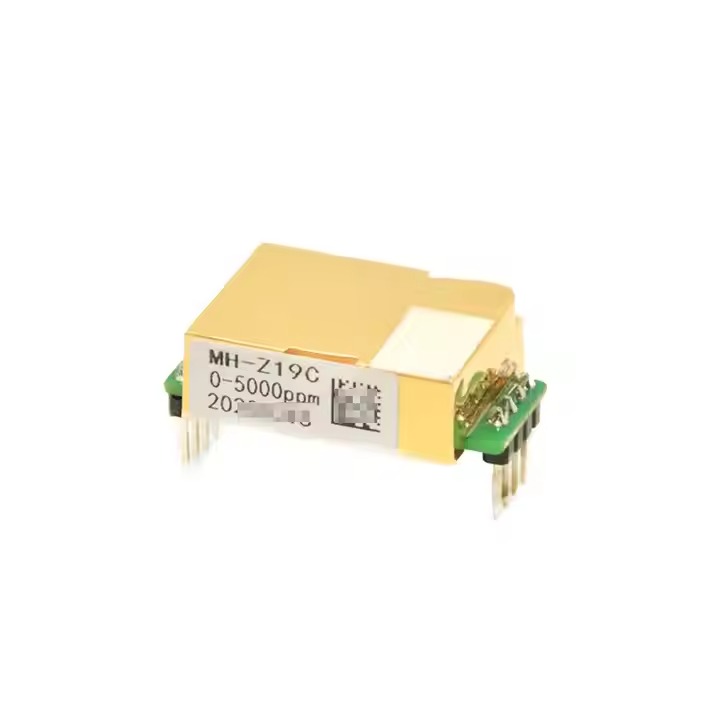

Actual image of the product
