GP2Y0A21YK0F 2Y0A21 IR Analog Distance Sensor Free Cable Compatible

Product Description

With this infrared distance sensor, you can measure distances in the range of 10 to 80 cm. The infrared sensor is ideal for robotics projects where you want to avoid obstacles due to its small size and short measuring time. The analog output can be easily evaluated on an Arduino. A voltage of 3.1 V corresponds to 10 cm and decreases proportionally to 0.3 V at 80 cm. The distance can be easily calculated using the following formula: Distance (cm) = (3027.4 / Analog value) ^ 1.2134.

Technical details:

Measuring range: 10 - 80 cm

Supply voltage: 4.5 - 5.5 V

Operating current: approx. 30 mA

Analog output: non-linear with distance

Time per measurement: 38.3 ms ± 9.6 ms

Cable length: 20 cm

Weight: 8 g

Scope of supply:

1x infrared distance sensor 2Y0A21

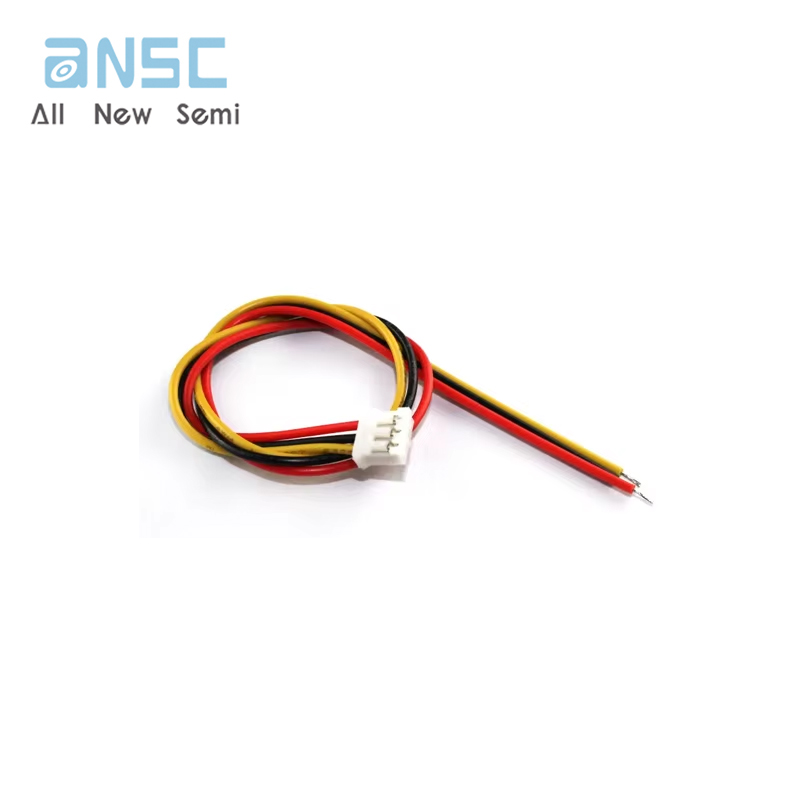

1 connection cable

Connections:

Red = +5V

Black = GND

Yellow = Analog voltage (3.1V to 0.3V)

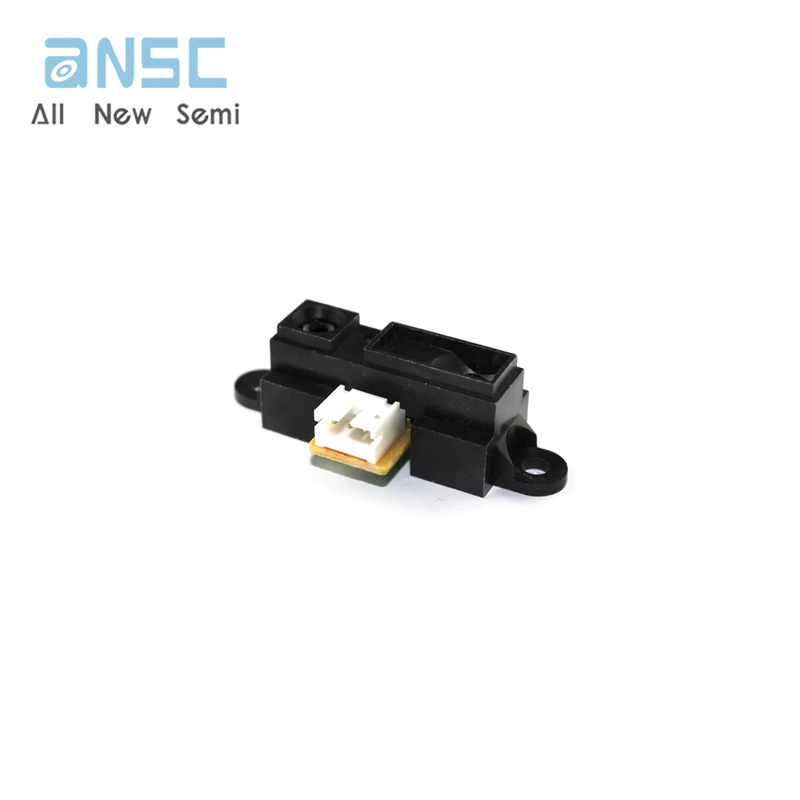

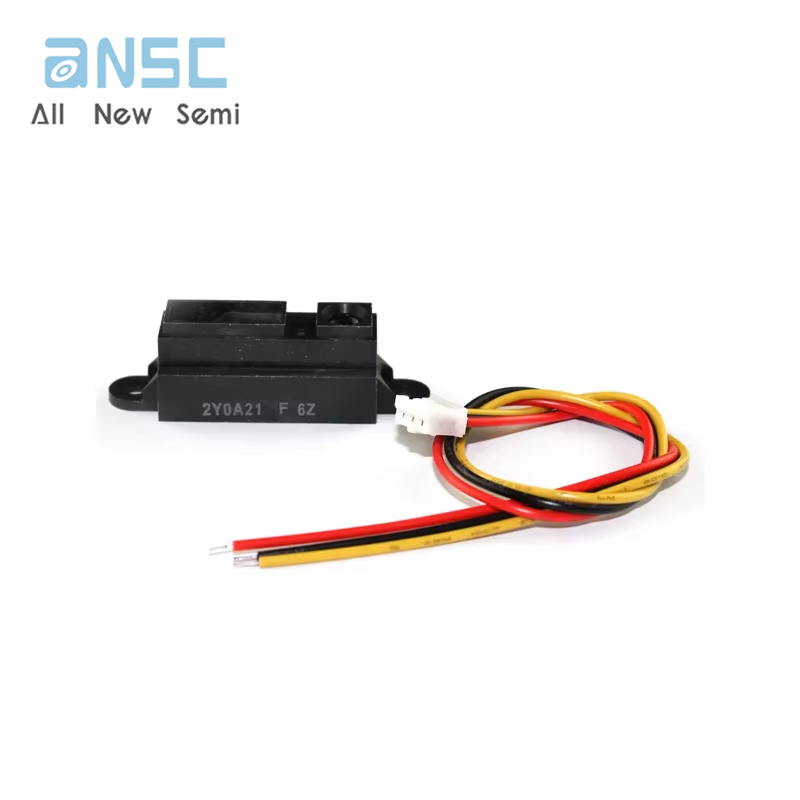

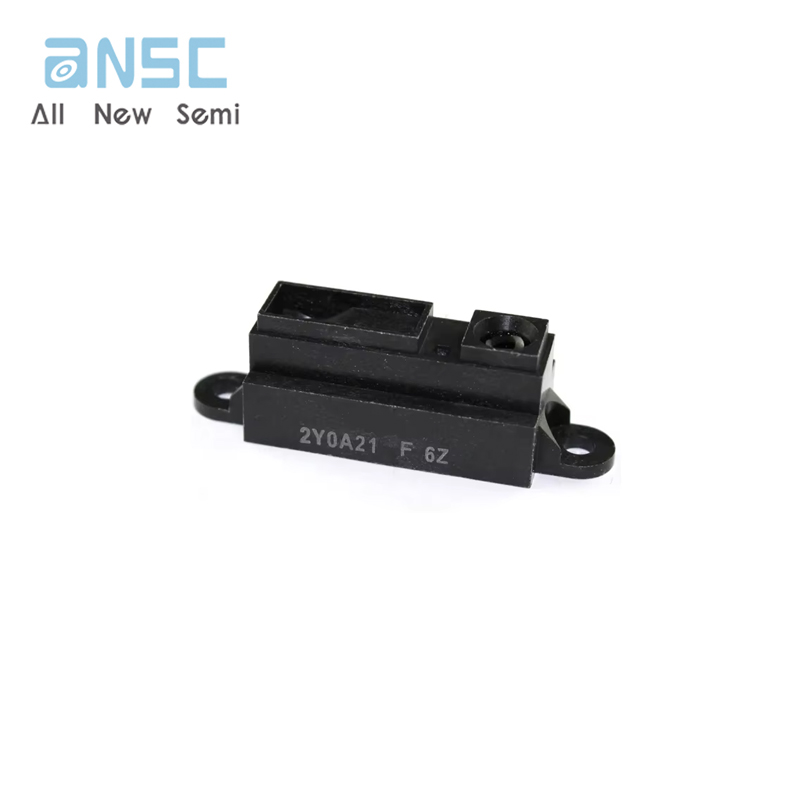

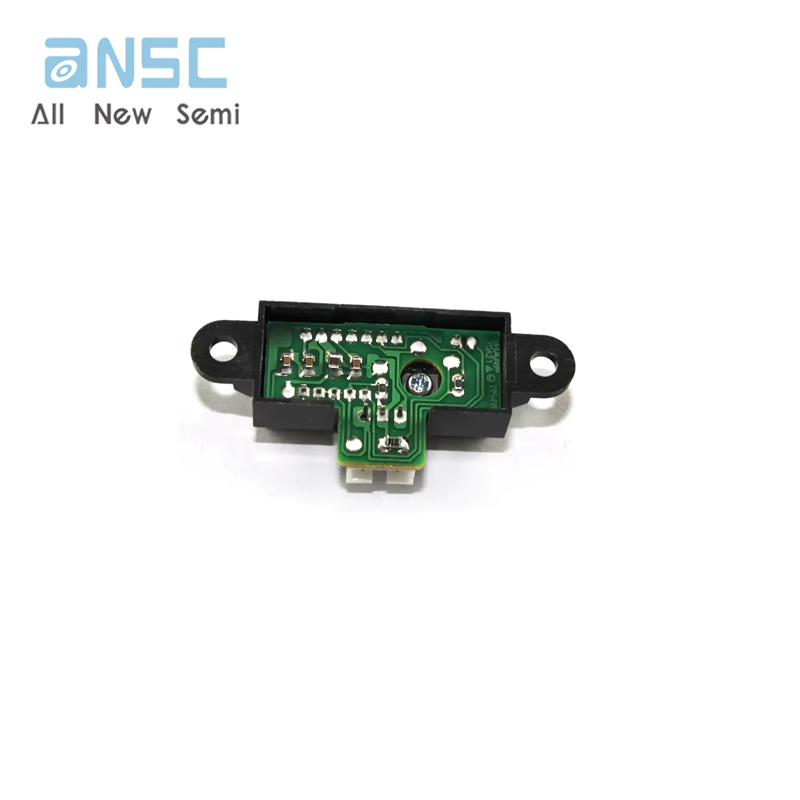

Actual image of the product

​
