Professional supply Original BOM distribution service electronic components LIS2DH12TR LIS2DW12TR Free-fall detection
Manufacturer Product Number
LIS2DH12TR
Description
LIS2DH12TR MEMS digital output motion sensor: ultra-low-power high-performance
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| DESCRIPTION The LIS2L01 is a dual channel accelerometer that includes a sensor elements and an IC interface able to take the information from the sensor and to provide an analog signal to the external world. ■ THE SENSITIVITY IS ADJUSTED WITH A TOTAL ACCURACY OF ±2.5% ■ INTERNAL TWO POLES LOW PASS SC FILTER WITH LINEAR OUTPUT, 30Hz BANDWIDTH ■ THE OUTPUT VOLTAGE, OFFSET, SENSITIVITY AND TEST VOLTAGE ARE RATIOMETRIC TO THE SUPPLY VOLTAGE ■ DEVICE SENSITIVITY IS ON-CHIP FACTORY TRIMMED ■ EMBEDDED SELF TEST ■ HIGH SHOCK SURVIVABILITY |
Product Description
| Type | Description |
| Part# | LIS2DH12TR |
| Category | Sensors, Transducers |
| Motion Sensors | |
| Accelerometers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Type | Digital |
| Axis | X, Y, Z |
| Acceleration Range | ±2g, 4g, 8g, 16g |
| Sensitivity (LSB/g) | 1000 (±2g) ~ 83 (±16g) |
| Sensitivity (mV/g) | - |
| Bandwidth | 0.5Hz ~ 672Hz |
| Output Type | I2C, SPI |
| Voltage - Supply | 1.71V ~ 3.6V |
| Features | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 12-VFLGA |
| Supplier Device Package | 12-LGA (2x2) |
| Base Product Number | LIS2DH12 |

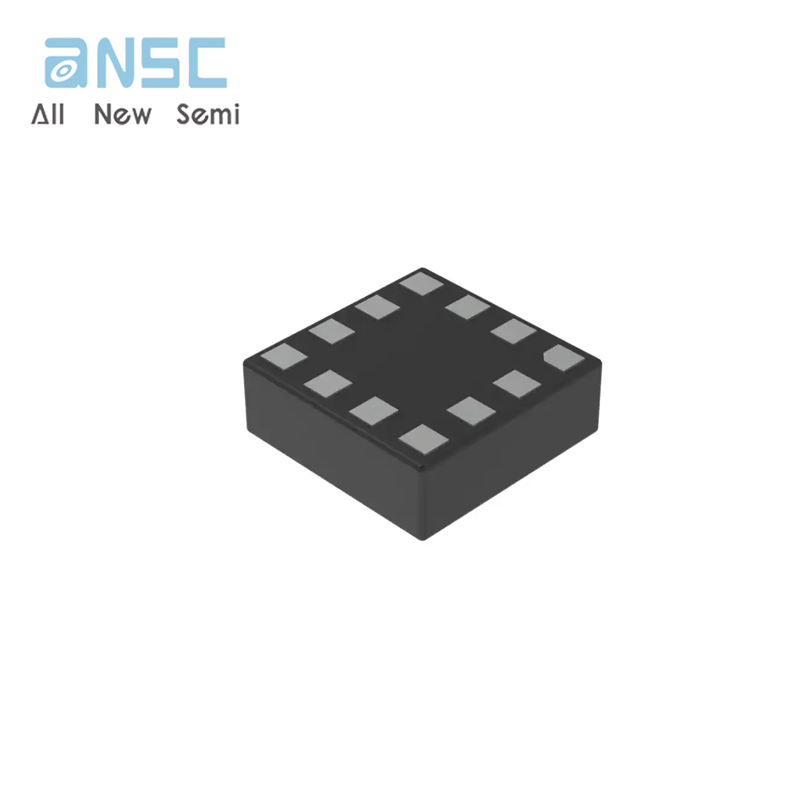

Actual image of the product
