Hot-selling and scarce AD22280 Single-Axis High-g Accelerometers LCC8 spot stock

Product Descriptions

The ADXL78 is a low power, complete single-axis accelerometer with signal conditioned voltage outputs that are on a single monolithic IC. This product measures acceleration with a fullscale range of ±35 g, ±50 g, or ±70 g (minimum). It can also measure both dynamic acceleration (vibration) and static acceleration (gravity).

The ADXL78 is the fourth-generation surface micromachinediMEMS® accelerometer from ADI with enhanced performance and lower cost. Designed for use in front and side impact airbag applications, this product also provides a complete costeffective solution useful for a wide variety of other applications.

The ADXL78 is temperature stable and accurate over the automotive temperature range, with a self-test feature that fully exercises all the mechanical and electrical elements of the sensor with a digital signal applied to a single pin.

The ADXL78 is available in a 5 mm × 5 mm × 2 mm,8-terminal ceramic LCC package.

Product Features

Complete acceleration measurement system on a

single monolithic IC

Available in ±35 g, ±50 g, or ±70 g output full-scale ranges

Full differential sensor and circuitry for high resistance

to EMI/RFI

Environmentally robust packaging

Complete mechanical and electrical self-test on

digital command

Output ratiometric to supply

Sensitive axes in the plane of the chip

High linearity (0.2% of full scale)

Frequency response down to dc

Low noise

Low power consumption (1.3 mA)

Tight sensitivity tolerance and 0 g offset capability

Largest available prefilter clipping headroom

400 Hz, 2-pole Bessel filter

Single-supply operation

Compatible with Sn/Pb and Pb-free solder processes

Product Applications

Vibration monitoring and control

Vehicle collision sensing

Shock detection

Product Specifications

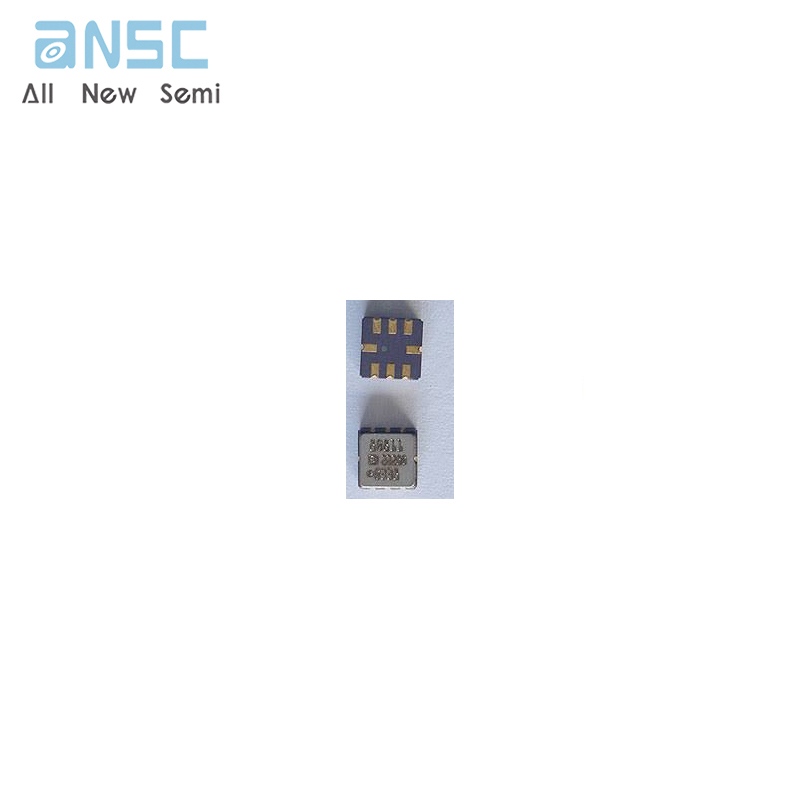

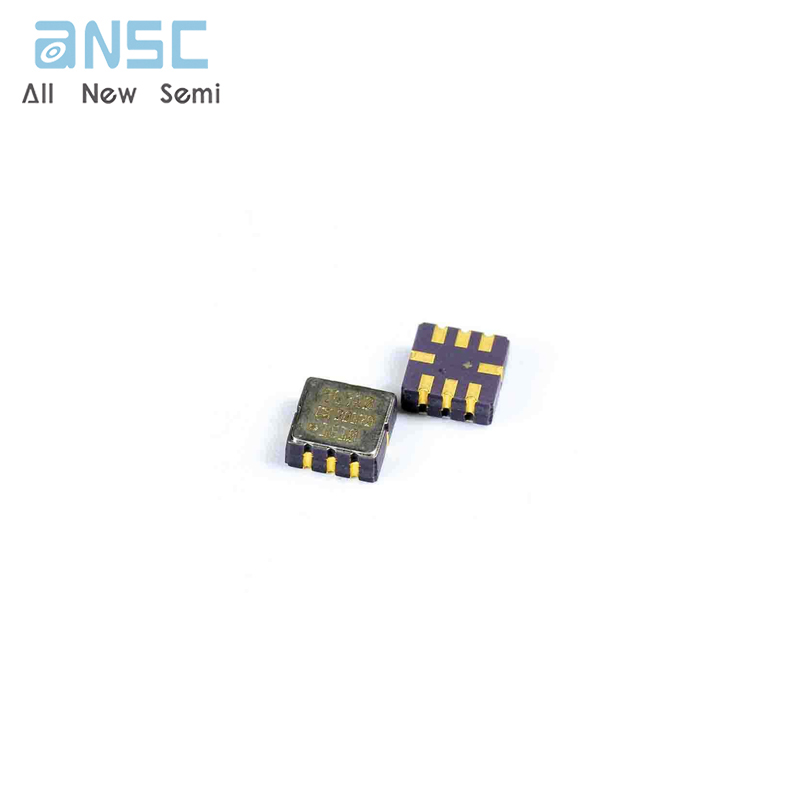

Product Photos

For more product information, please download the PDF
