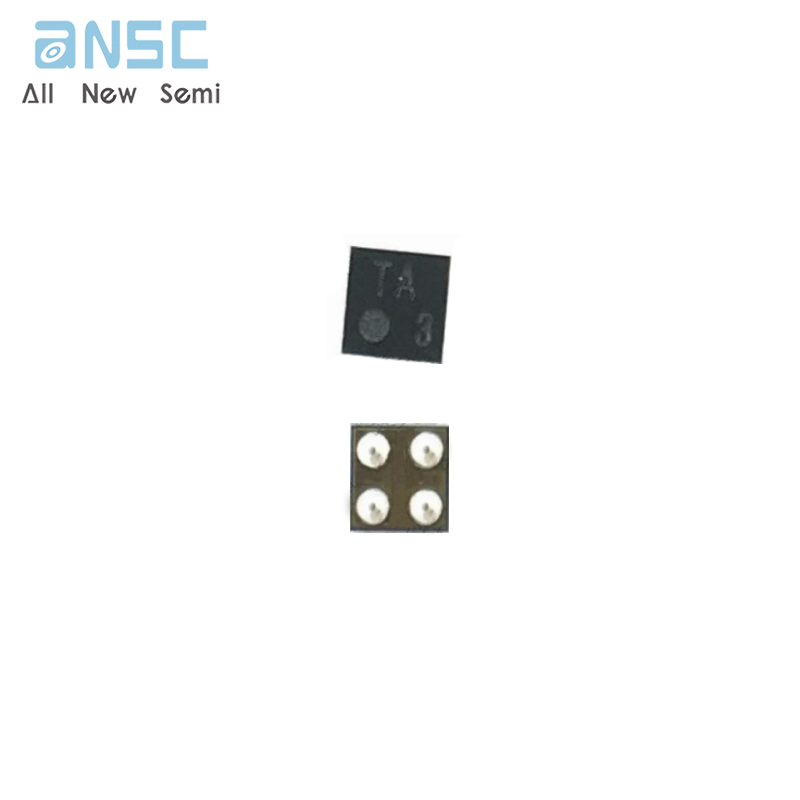

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce TMP103AYFFR Low-Power, Digital Temperature Sensor with Two-Wire Interface in WCSP spot stock
Manufacturer Product Number
TMP103AYFFR
Description
TMP103AYFFR Low-Power, Digital Temperature Sensor with Two-Wire Interface in WCSP spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The TMP103 is a digital output temperature sensor in a four-ball wafer chip-scale package (WCSP). The TMP103 is capable of reading temperatures to a resolution of 1°C.
The TMP103 features a two-wire interface that is compatible with both I2C and SMBus interfaces. In addition, the interface supports multiple device access (MDA) commands that allow the master to communicate with multiple devices on the bus simultaneously, eliminating the need to send individual commands to each TMP103 on the bus.
Up to eight TMP103s can be tied together in parallel and easily read by the host. The TMP103 is especially ideal for space-constrained, power-sensitive applications with multiple temperature measurement zones that must be monitored.
The TMP103 is specified for operation over a temperature range of –40°C to +125°C
Product Features
• Multiple Device Access (MDA):
– Global Read/Write Operations
• I2C™-/ SMBus™-Compatible Interface
• Resolution: 8 Bits
• Accuracy: ±1°C Typ (–10°C to +100°C
• Low Quiescent Current:
– 3μA Active IQ at 0.25Hz
– 1μA Shutdown
• Supply Range: 1.4V to 3.6V
• Digital Output
• Package: 4-Ball WCSP (DSBGA)
Product Applications
• Handsets
• Notebooks
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TMP103AYFFR |
| Category | Sensors, Transducers |
| Temperature Sensors | |
| Analog and Digital Output | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Sensor Type | Digital, Local |
| Sensing Temperature - Local | -40°C ~ 125°C |
| Output Type | I2C/SMBus |
| Voltage - Supply | 1.4V ~ 3.6V |
| Resolution | 8 b |
| Features | One-Shot, Shutdown Mode |
| Accuracy - Highest (Lowest) | ±2°C (±3°C) |
| Test Condition | -10°C ~ 100°C (-40°C ~ 125°C) |
| Operating Temperature | -55°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-UFBGA, DSBGA |
| Supplier Device Package | 4-DSBGA (1x1) |
| Base Product Number | TMP103 |
Product Photos
For more product information, please download the PDF
