OOM202 Oxygen sensor oxygen battery ventilator Original

Product Description

Specifications:

Measurement Range:- 0-100%

Output Signal in Air:- 13-16mV

Circuit Interface:- 3Pin (Molex)

Accuracy and Repeatability:- <1% oxygen by volume after calibration in 100% oxygen

Linearity Error:- <3% relative error

Response Time:- <12 seconds, relative to 90% relative value

Zero Drift:- <200 u V in 100% ammonia for 5 minutes

Cross Interference:- <0.5% oxygen by volume:

- 10% CO2, balanced ammonia solution

- 80% N20, dissolved in balanced ammonia

- 7.5% Halothane, dissolved in balanced ammonia

- 7.5% Isoflurane, dissolved in balanced ammonia

- 7.5% Enflurane, dissolved in balanced ammonia

- 9% Enflurane, balanced nitrogen

- 20% Desflurane, balanced nitrogen

Temperature effect: - 0.03% relative temperature, 25°C

Effect of stress: - Proportional to oxygen partial pressure

Effect of mechanical shock: - <1% relative error after a fall from 1 meter

Operating temperature: - 0°C-50°C

Temperature compensation: - Internal thermistor compensation

Temperature effect - 3% relative error at 25°C-40°C

Compensation (steady state): - 8% relative error between 0°C-50°C

Operating humidity: - 0-99% RH (several hours in condensable air)

Storage temperature: - -20°C- 50°C

Recommended storage temperature: - 5°C ~ 15°C

Recommended load: - ≥ 10Ω

Warm-up time: - <30 minutes after sensor replacement

Rated sensor life: - ≥ 1000 000% volume oxygen hours

Weight: - Approx. 28G

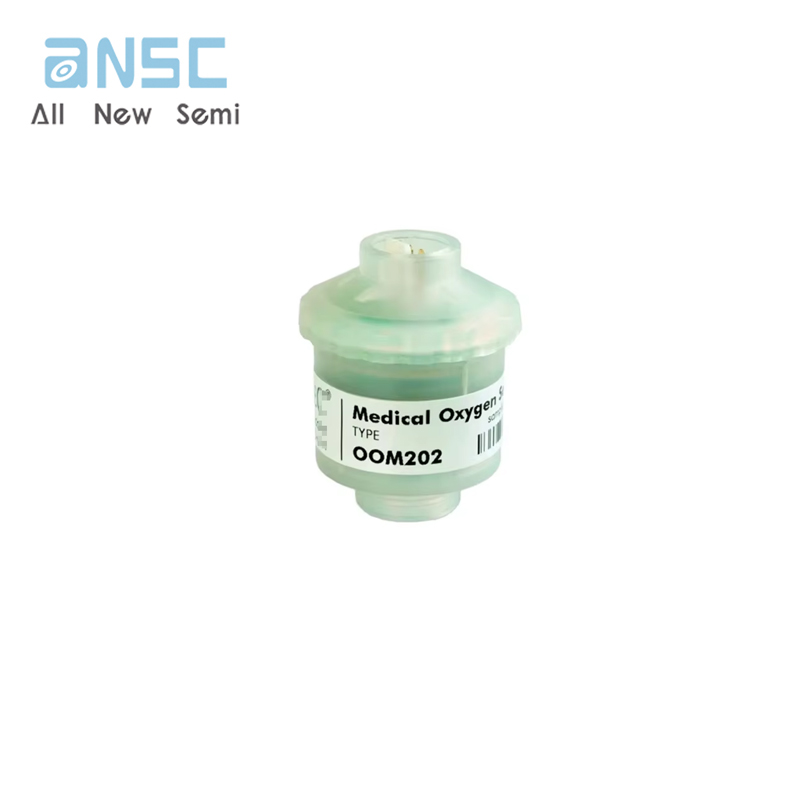

Actual image of the product

​
