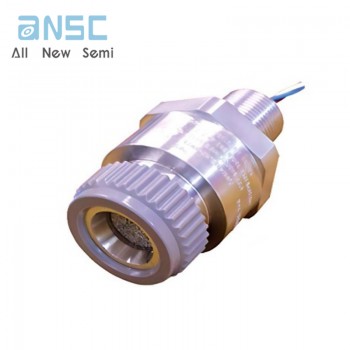

Hot selling one stop electronic component supply 705HT series combustible gas sensor, combustible gas explosion-proof detector

Product Descriptions

The Model 705 high temperature sensor has been specifically designed for the detection of combustible gases in high temperature hazardous area locations. Typical applications include turbine enclosures and drying ovens used insolvent based printing and coating machines.

These applications require a sensor that provides reliable and stable detection allowing low-level alarm settings across a wide temperature range. Utilizing a specially matched pair of Sieger poison resistant combustible gas detection elements, the Model 705 High Temperature Sensor has a very stable baseline allowing alarm trip points to be set as low as 5 percent LEL across a temperature range of -25°C to +150°C (-3°F to +302°F). The gas measuring range can be configured from 0-20 percent LEL up to 0-100 percent LEL depending on the type of controller used.

The detector elements are housed in a UL hazardous area approved explosion proof assembly, and provide an industry standard 3 wire mV bridge output which can be connected to a suitable control device or converted to an analog output signal via a field transmitter.

Product Additional Features and Benefits

Excellent Performance:

• Certified for hazardous location operation up to +150°C (+302°F)

• Alarm trip points as low as 5 percent LEL

• Fast speed of response

• Poison resistant detectors

• Low power consumption

Cost Effective:

• Low cost disposable sensor

• Greater than 5 year typical operating life

Reliable Operation:

• Specially matched ‘Sieger’ detectors provide highest stability

• Proven technology from the World leaderin combustible gas detection

Flexibility:

• Measuring ranges from 0-20% LELto 0-100% LEL

• Wide range of accessories

Robust Construction:

• UL approved explosion proof enclosure

• High grade Aluminum construction.
