Hot-selling and scarce UC2950T Half-Bridge Bipolar Switch TO-220 spot stock

Product Descriptions

This device is a monolithic integrated circuit designed to provide high-current switching with low saturation voltages when activated by low-level logic signals. Source and sink switches may be independently activated without regard to timing as a built-in interlock will keep the sink off if the source is on.

This driver has the high current capability to drive large capacitive loads with fast rise and fall times; but with high-speed internal flyback diodes, it is also ideal for inductive loads. Two UC2950s can be used together to form a full bridge, bipolar motor driver compatible with high frequency chopper current control.

Product Features

• Source or Sink 4.0A

• Supply Voltage to 35V

• High-Current Output Diodes

• Tri-State Operation

• TTL and CMOS Input Compatibility

• Thermal Shutdown Protection

• 300kHz Operation

• Low-Cost TO-220 Package

Product Specification

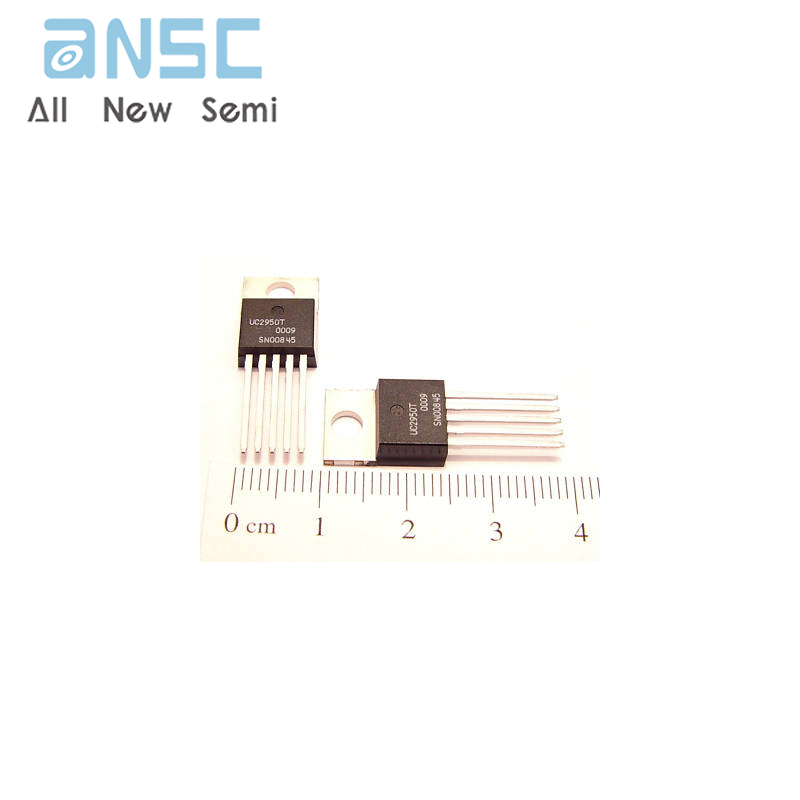

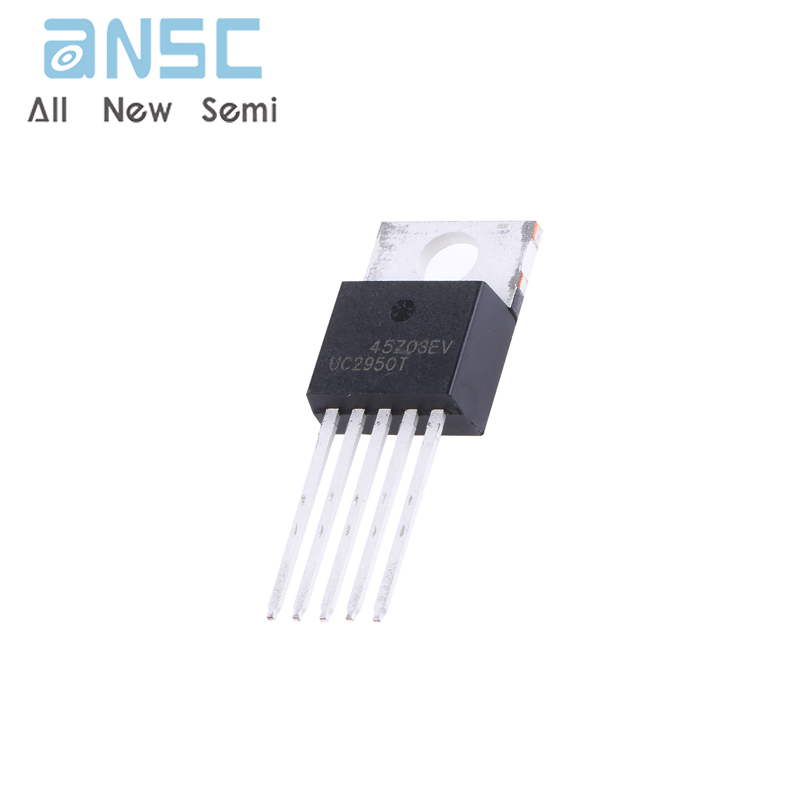

Product Photos

For more product information, please download the PDF
