Hot sale original TYN612MRG SCR 600V 12A TO220AB SCR 600 V 12 A Standard Recovery Through Hole TO-220
Manufacturer Product Number
TYN612MRG
Description
TYN612MRG Thyristors SCR 600V 12A TO220AB
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Description
The TYN612M SCR is suitable to fit modes of control found in applications such as voltage
regulation circuits for motorbikes, overvoltage crowbar protection, motor control circuits in power
tools and kitchen aids, inrush current limiting circuits, capacitive discharge ignition.
The insulated fullpack package allows a back to back configuration.
Main features
Symbol Value Unit
IT(RMS) 12 A
VDRM/VRRM 600 V
IGT (min / max) 1.5 / 5 mA
Product Description
| Type# | Description |
| ANSC PART# | ANSC-TYN612MRG |
| Category | Discrete Semiconductor Products |
| Thyristors | |
| SCRs | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Voltage - Off State | 600 V |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Current - Gate Trigger (Igt) (Max) | 5 mA |
| Voltage - On State (Vtm) (Max) | 1.6 V |
| Current - On State (It (AV)) (Max) | 8 A |
| Current - On State (It (RMS)) (Max) | 12 A |
| Current - Hold (Ih) (Max) | 20 mA |
| Current - Off State (Max) | 10 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 120A, 125A |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220 |
| Base Product Number | TYN612 |

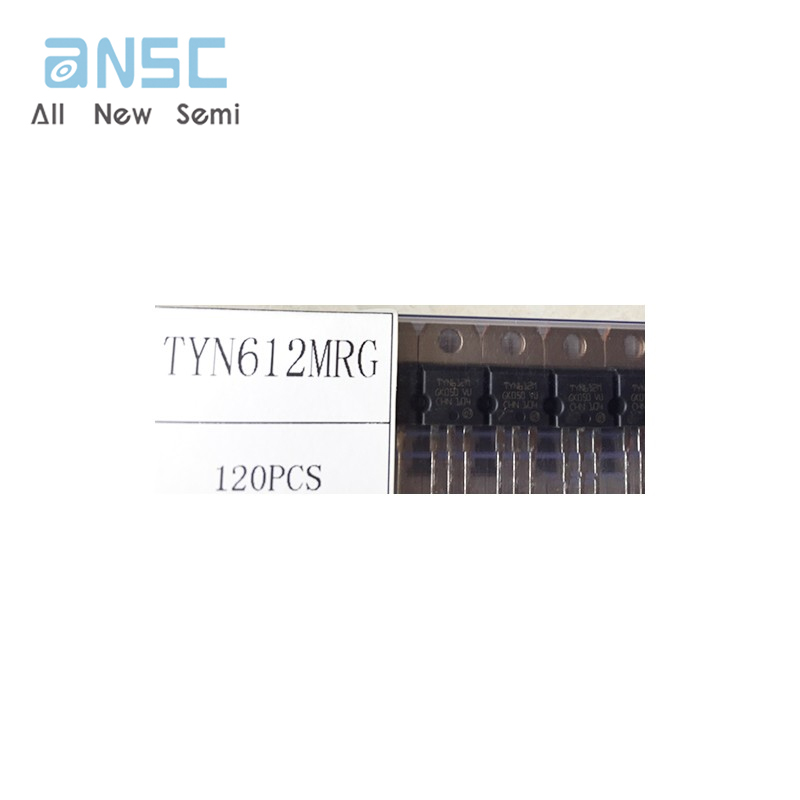

Actual image of the product

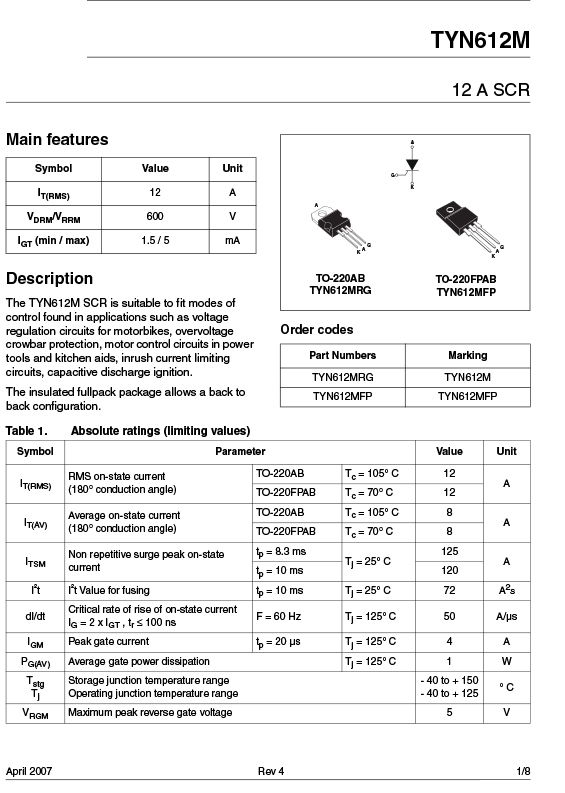

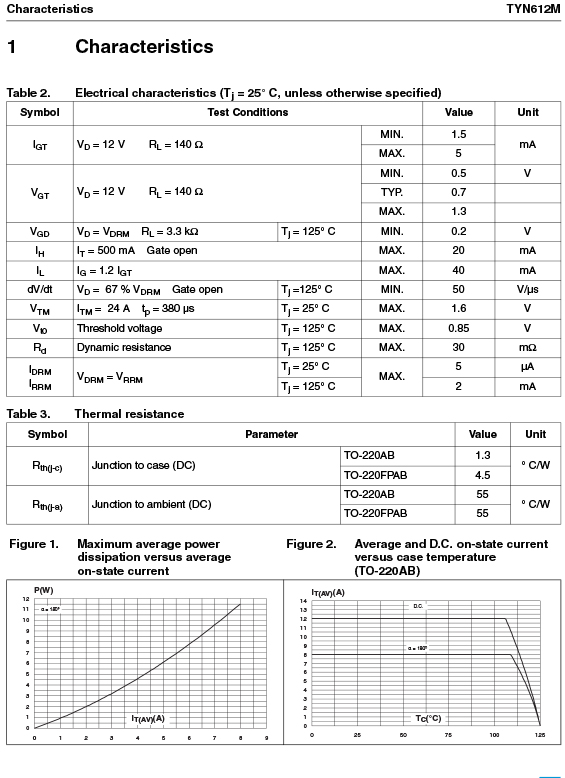

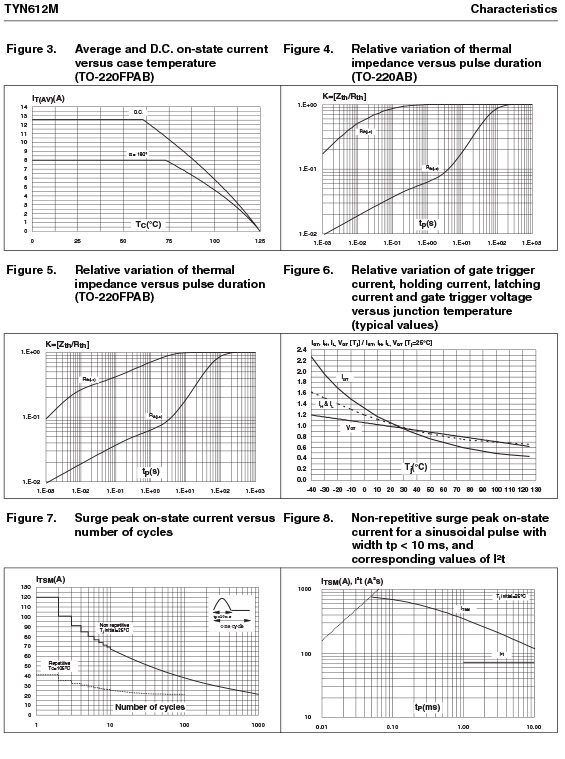

Product datasheet
For more information, please download
