Hot sale original MCC56-16IO1B SCR Module 1.6 kV 100 A Series Connection - All SCRs Chassis Mount TO-240AA
Manufacturer Product Number
MCC56-16IO1B
Description
MCC56-16IO1B SCR MODULE 1.6KV 100A TO-240AA
Package Condition
Box
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Features • International standard package, JEDEC TO-240 AA • Direct copper bonded Al2O3 -ceramic base plate • Planar passivated chips • Isolation voltage 3600 V~ • UL registered, E 72873 • Gate-cathode twin pins for version 1B Applications • DC motor control • Softstart AC motor controller • Light, heat and temperature control Advantages • Space and weight savings • Simple mounting with two screws • Improved temperature and power cycling • Reduced protection circuits |
Product Description
| TYPE# | DESCRIPTION |
| ANSC PART# | ANSC-MCC56-16IO1B |
| Category | Discrete Semiconductor Products |
| Thyristors | |
| SCRs - Modules | |
| Manufacturer | / |
| Series | - |
| Packaging | Box |
| Part Status | Active |
| Structure | Series Connection - All SCRs |
| Number of SCRs, Diodes | 2 SCRs |
| Voltage - Off State | 1.6 kV |
| Current - On State (It (AV)) (Max) | 64 A |
| Current - On State (It (RMS)) (Max) | 100 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Current - Gate Trigger (Igt) (Max) | 100 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1500A, 1600A |
| Current - Hold (Ih) (Max) | 200 mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | TO-240AA |
| Base Product Number | MCC56 |

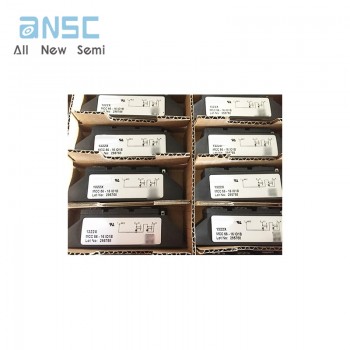

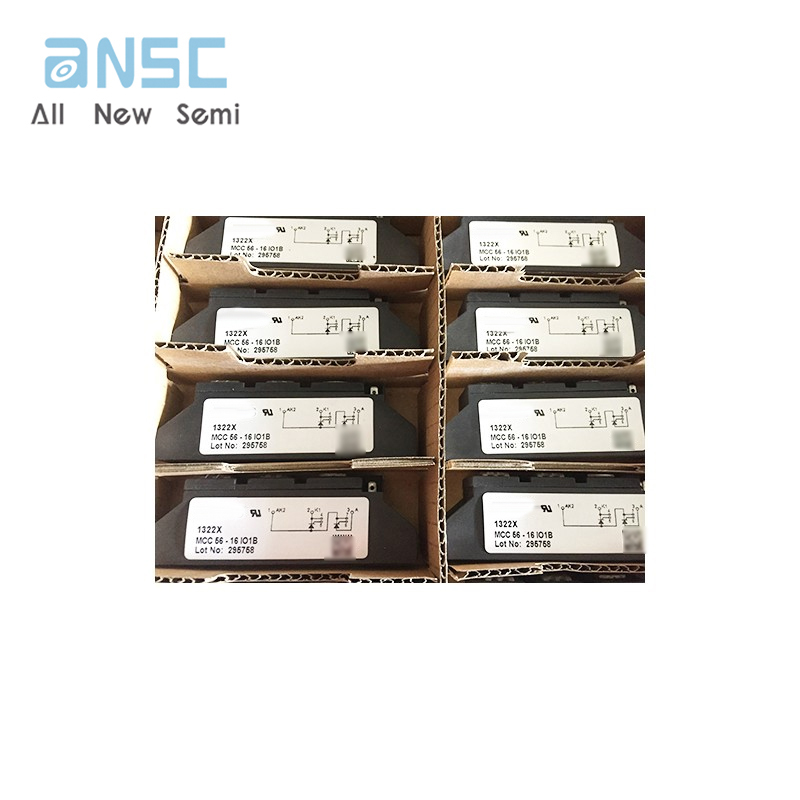

Actual image of the product

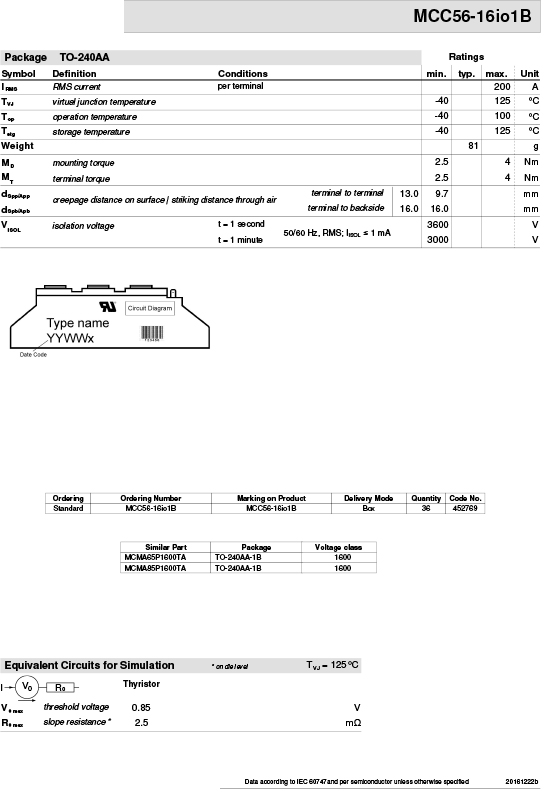

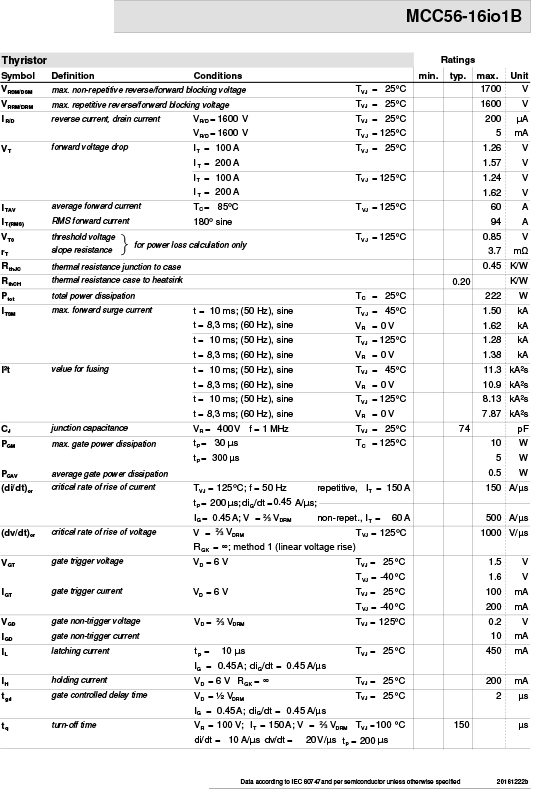

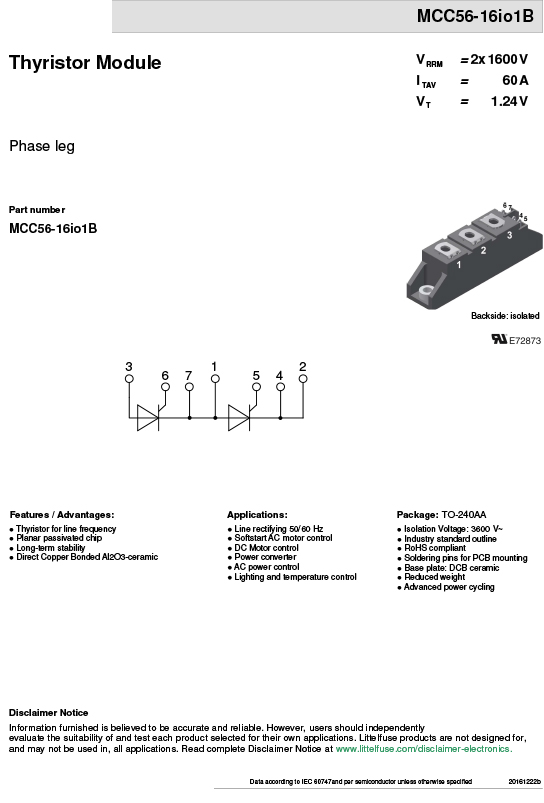

Product datasheet
For more information, please download
