Hot-selling and scarce CTX100-2 Power Inductors and Transformers SMD spot stock
Manufacturer Product Number
CTX100-2
Description
CTX100-2 Power Inductors and Transformers SMD spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
• Surface mount magnetics that can be used as single or coupled inductors or 1:1 transformers that provide isolation between two windings
• OCTA-PAC’s are designed around high frequency, low loss material
• ECONO-PAC’s are a lower cost version of OCTA-PAC’s offering high saturation flux density
• OCTA-PAC PLUS’s offer higher current ratings and higher saturation flux densities than OCTA-PAC and ECONO-PAC
• Secure 4 Terminal Mounting
• Inductor more versatile inductance combination by series or parallel connections
Product Applications
• Computer and portable power devices
• LCD panels, DVD players
• Inductor: DC-DC converters
• Buck, boost, forward, and resonant converters
• Noise filtering and filter chokes
• Transformers: 1:1 300Vdc isolation, flyback, sepic
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-CTX100-2 |
| Category | Inductors, Coils, Chokes |
| Arrays, Signal Transformers | |
| Manufacturer | - |
| cms-filter-header-series | OCTA-PAC® |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 99.45 µH |
| Inductance - Connected In Series | 397.81 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 630 mA |
| Current Rating - Series | 320 mA |
| DC Resistance (DCR) - Parallel | 457mOhm Max |
| DC Resistance (DCR) - Series | 1.828Ohm Max |
| Shielding | Unshielded |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.450" L x 0.450" W (11.43mm x 11.43mm) |
| Height | 0.235" (5.97mm) |

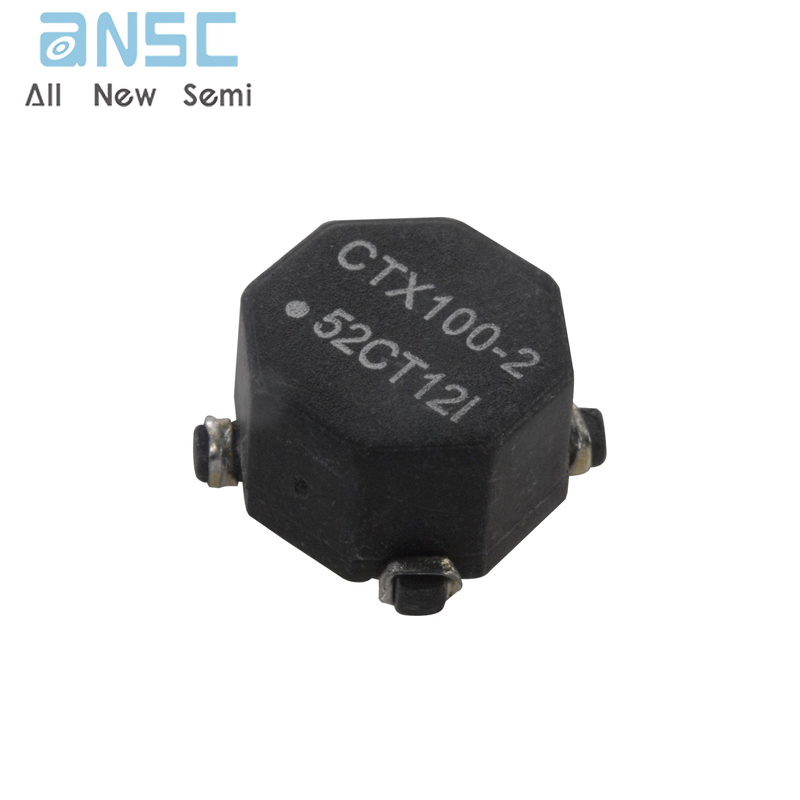

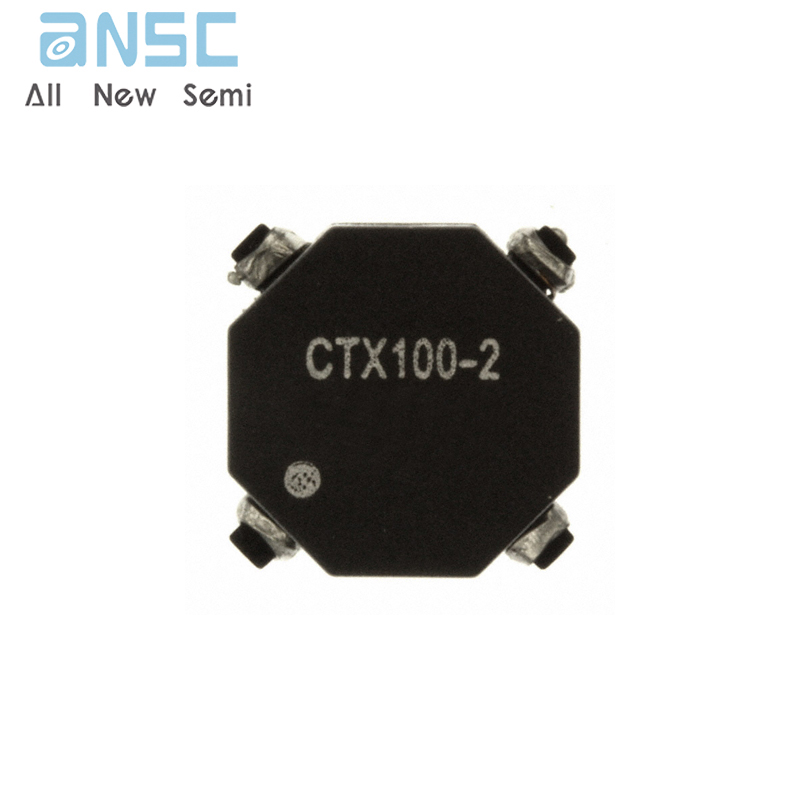

Product Photos
、
For more product information, please download the PDF
Other Products In The same category:
CTX100-2 Power Inductors and Transformers SMD spot stock
727In stock:
Can ship immediately
