Hot-selling and scarce SN74GTLPH306PWR 8-BIT LVTTL-TO-GTLP BUS TRANSCEIVER TSSOP24 spot stock

Product Descriptions

The SN74GTLPH306 is a medium-drive, 8-bit bus transceiver that provides LVTTL-to-GTLP and GTLP-to-LVTTL signal-level translation. The device provides a high-speed interface between cards operating at LVTTL logic levels and a backplane operating at GTLP signal levels. High-speed (about three times faster than standard LVTTL or TTL) backplane operation is a direct result of GTLP’s reduced output swing (<1 V), reduced input threshold levels, improved differential input, OEC circuitry, and TI-OPC circuitry. Improved GTLP OEC and TI-OPC circuits minimize bus-settling time and have been designed and tested using several backplane models. The medium drive allows incident-wave switching in heavily loaded backplanes with equivalent load impedance down to 19 Ω.

GTLP is the Texas Instruments (TI) derivative of the Gunning Transceiver Logic (GTL) JEDEC standard JESD 8-3. The ac specification of the SN74GTLPH306 is given only at the preferred higher-noise-margin GTLP, but the user has the flexibility of using this device at either GTL (VTT = 1.2 V and VREF = 0.8 V) or GTLP (VTT = 1.5 V and VREF = 1 V) signal levels.

Normally, the B port operates at GTLP signal levels. The A-port and control inputs operate at LVTTL logic levels, but are 5-V tolerant and are compatible with TTL and 5-V CMOS inputs. VREF is the B-port differential input reference voltage.

This device is fully specified for hot-insertion applications using Ioff and power-up 3-state. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict.

Product Features

TI-OPCtm Circuitry Limits Ringing onUnevenly Loaded Backplanes

OECtm Circuitry Improves Signal Integrity and Reduces Electromagnetic Interference

Bidirectional Interface Between GTLP Signal Levels and LVTTL Logic Levels

LVTTL Interfaces Are 5-V Tolerant

Medium-Drive GTLP Outputs (50 mA)

LVTTL Outputs (–24 mA/24 mA)

GTLP Rise and Fall Times Designed for Optimal Data-Transfer Rate and Signal Integrity in Distributed Loads

Ioff and Power-Up 3-State Support Hot Insertion

Bus Hold on A-Port Data Inputs

Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

Product Specification

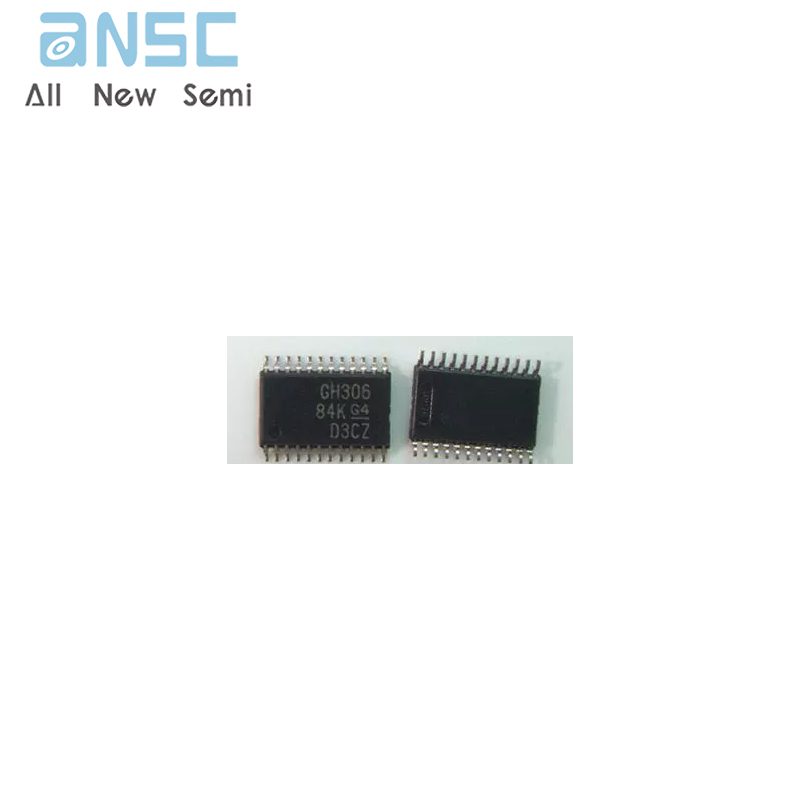

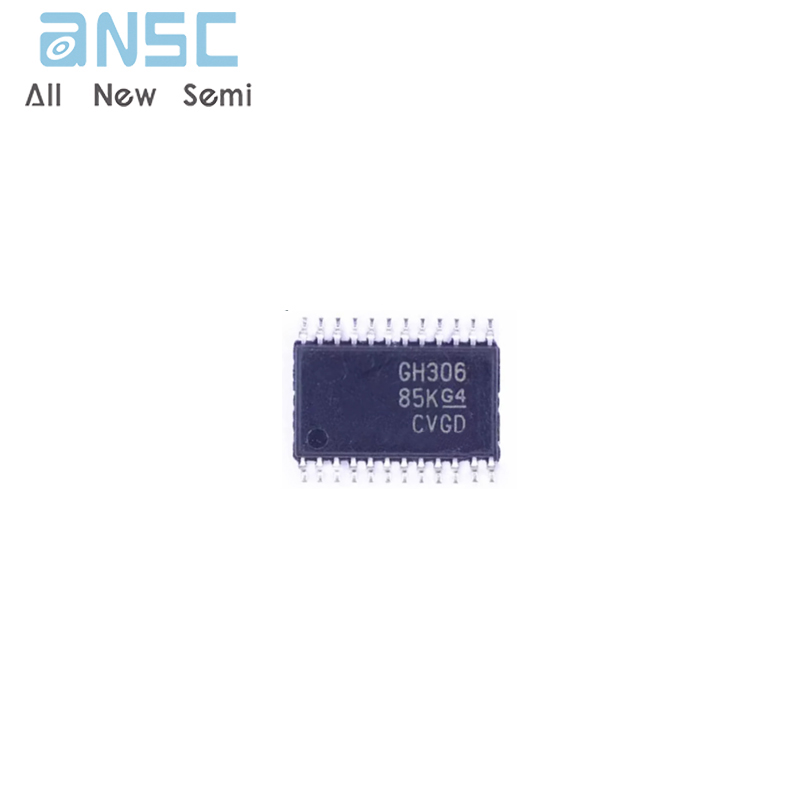

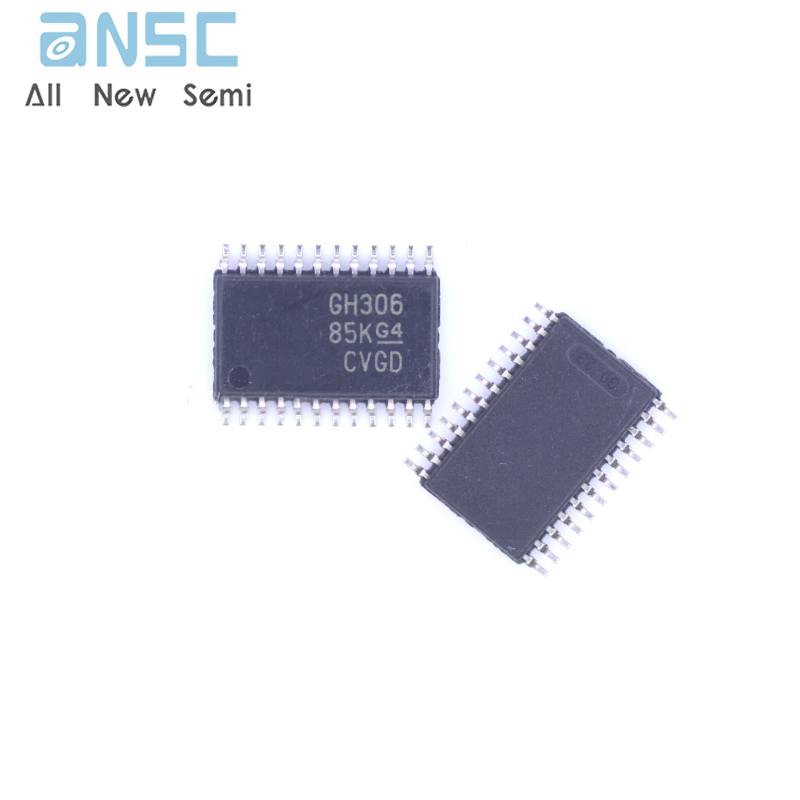

Product Photos

、
