Hot-selling and scarce 74AHCT08S14-13 QUADRUPLE 2-INPUT AND GATES SOP14 spot stock
Manufacturer Product Number
74AHCT08S14-13
Description
74AHCT08S14-13 QUADRUPLE 2-INPUT AND GATES SOP14 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The 74AHCT08 provides provides four independent 2-input AND gates with standard push-pull outputs. The device is designed for operation with a power supply range of 4.5V to 5.5V.
The gates perform the Boolean function: Y = A • B or Y = A + B
Product Features
• Wide Supply Voltage Range from 4.5V to 5.5V
• Inputs Are TTL Voltage Level Compatible
• Outputs Sink or Source 8mA at VCC = 4.5V
• CMOS Low Power Consumption
• Schmitt Trigger Action at All Inputs
• ESD Protection Exceeds JESD 22
200-V Machine Model (A115-A)
2000-V Human Body Model (A114-A)
Exceeds 1000-V Charged Device Model (C101C)
• Latch-Up Exceeds 250mA per JESD 78, Class II
• Range of Package Options SO-14 and TSSOP-14
• Totally Lead-Free & Fully RoHS Compliant
• Halogen and Antimony Free. “Green” Device
Product Applications
• General Purpose Logic
• Wide array of products such as:
PCs, Networking, Notebooks, Netbooks
Computer Peripherals, Hard Drives, CD/DVD ROM
TV, DVD, DVR, Set Top Box
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-74AHCT08S14-13 |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 74AHCT |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Logic Type | AND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 20 µA |
| Current - Output High, Low | 8mA, 8mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 10ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SO |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Base Product Number | 74AHCT08 |

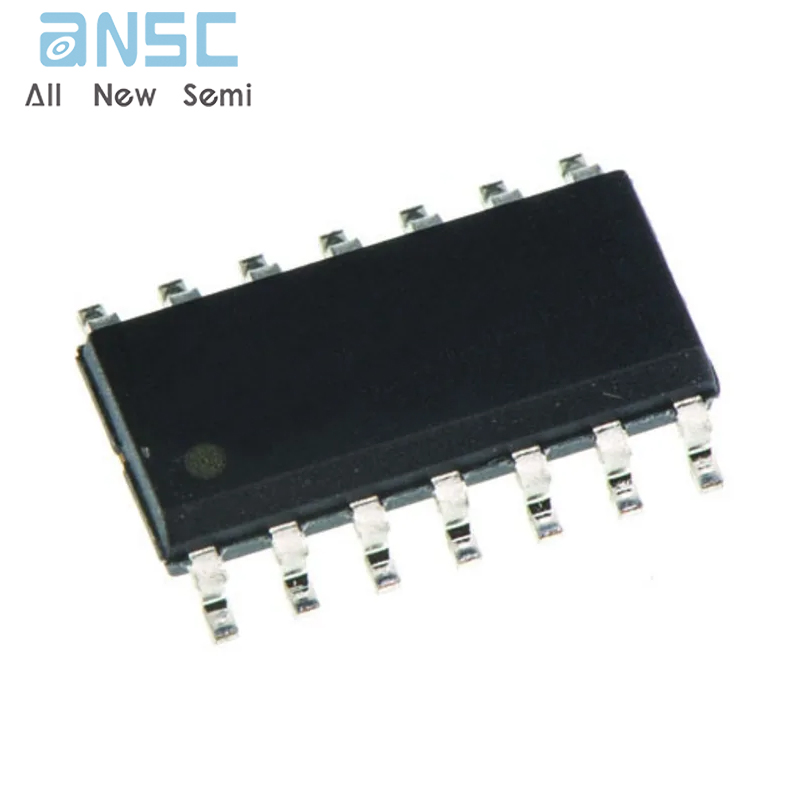

Product Photos
