Product Details

Transformer, part number 7490220122, is a surface-mount pulse transformer designed for use in Ethernet applications. This transformer is part of the WE-LAN series, which is specifically designed for LAN 10/100/1000 Base-T applications.

Product Features

• High inductance of 350μH, making it suitable for high-frequency applications

• Compact size of 0.720L x 0.579W (18.29mm x 14.70mm) for easy integration into tight spaces

• Surface-mount packaging for easy mounting and reflow soldering

• Operating temperature range of -40°C to 85°C for reliable performance in various environments

• RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited), making it suitable for use in a wide range of applications

Product Applications

• Primary applications: Ethernet applications, such as LAN 10/100/1000 Base-T, where high-frequency isolation is required

• Secondary applications: Other high-frequency applications where pulse transformers are needed, such as telecommunications, industrial control systems, and medical devices

Product Description

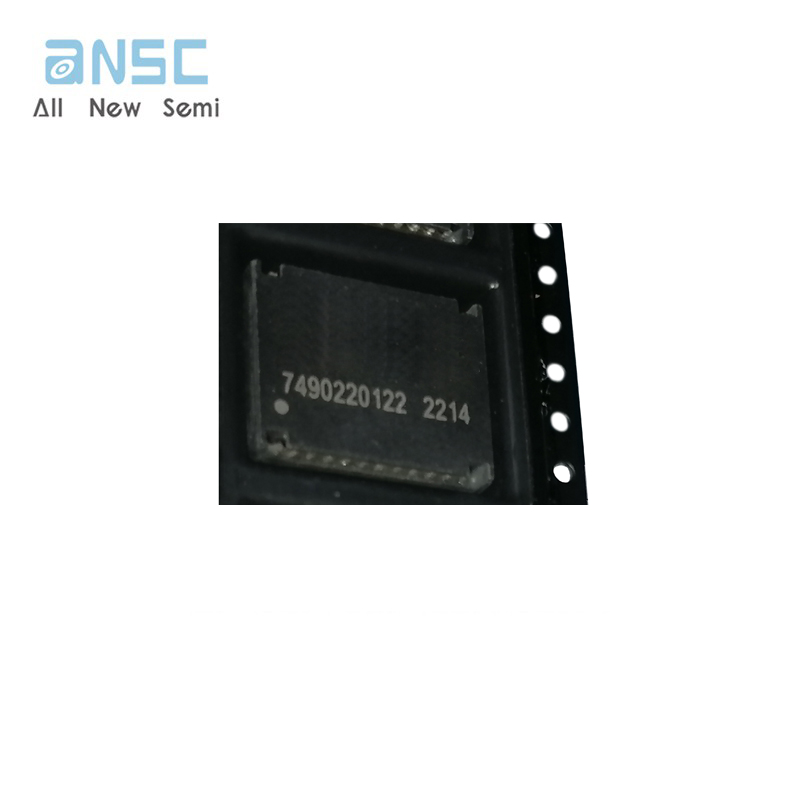

Actual image of the product
