Hot sale original HX1198FNL 350µH LAN 10/100 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Manufacturer Product Number
HX1198FNL
Description
HX1198FNL 350µH LAN 10/100 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Meets IEEE 802.3 and ANSI X3.263 standards, including 350 µH OCL with 8 mA bias
Designed for reflow soldering at temperatures up to 235oC
Compact footprint for use in the most space restrictive applications
Product Description
| Type | Description |
| ANSC PART# | ANSC - HX1198FNL |
| Category | Transformers |
| Pulse Transformers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Bulk |
| Part Status | Active |
| Transformer Type | LAN 10/100 Base-T |
| Inductance | 350µH |
| ET (Volt-Time) | - |
| Turns Ratio - Primary:Secondary | 1CT:1CT Transmitter, 1CT:1CT Receiver |
| Mounting Type | Surface Mount |

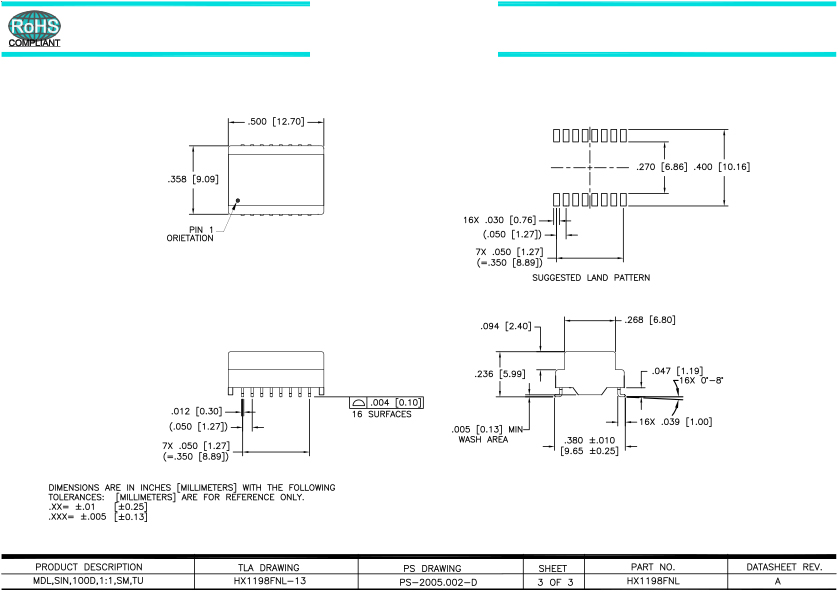

| Size / Dimension | 0.500" L x 0.358" W (12.70mm x 9.09mm) |
| Height - Seated (Max) | 0.236" (5.99mm) |
| Operating Temperature | -40°C ~ 85°C |
| Weight | - |

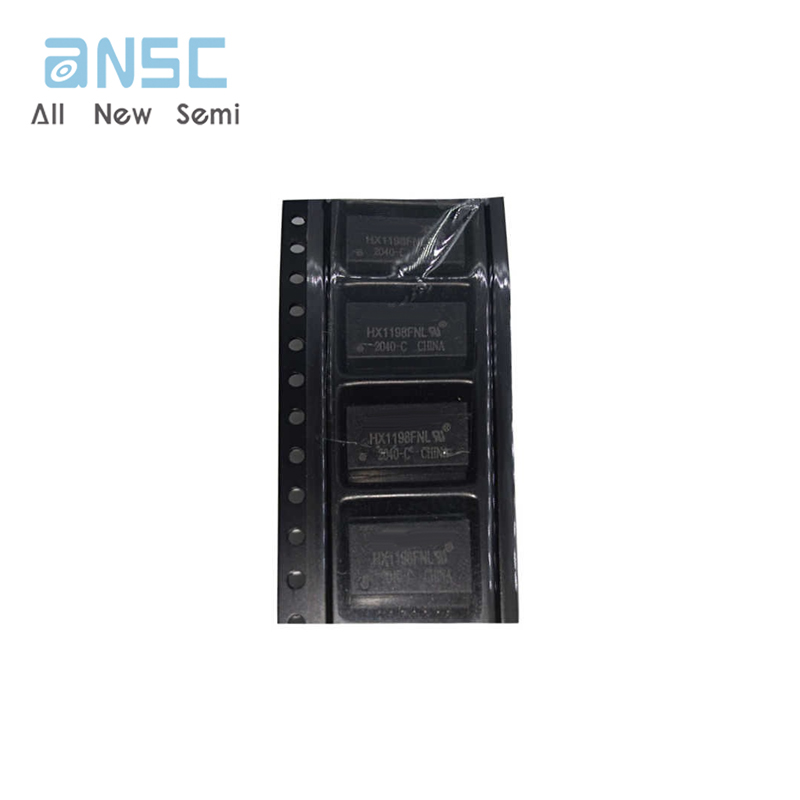

Product Photos

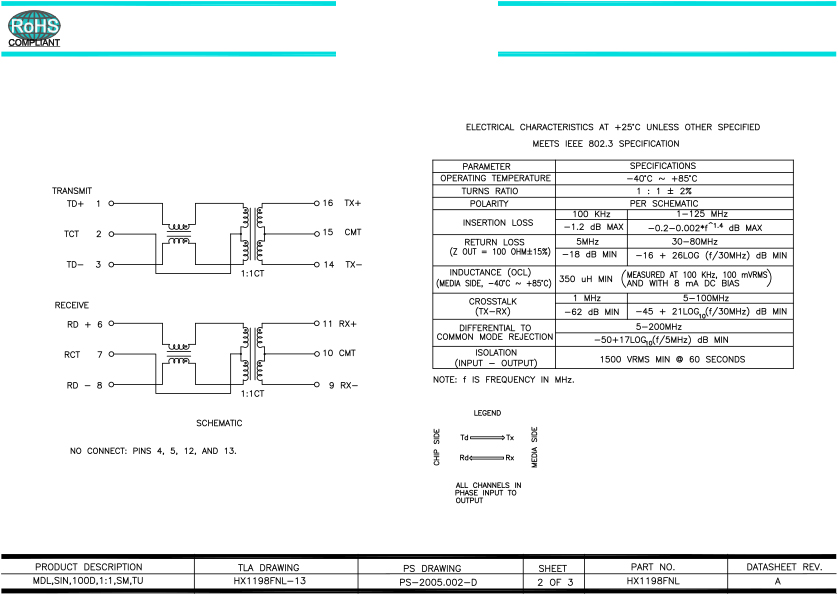

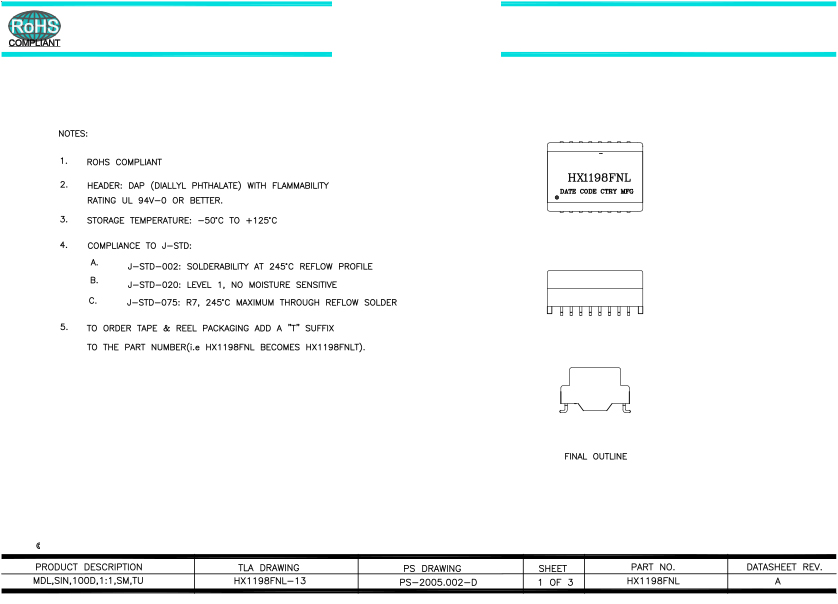

Product datasheet
For more information, please download
