Hot sale original AOB2500L N-Channel 150 V 11.5A (Ta), 152A (Tc) 2.1W (Ta), 375W (Tc) Surface Mount TO-263 (D2PAK)

Manufacturer Product Number

AOB2500L

Description

MOSFET N-CH 150V 11.5/152A TO263N-Channel 150 V 11.5A (Ta), 152A (Tc) 2.1W (Ta), 375W (Tc) Surface Mount TO-263

Package Condition

original

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Overview

A device's maximum input capacitance is 6460pF @ 75V, but its input capacitance parameter, CI, is measured as the capacitance between the input terminals of the device with either input grounded.Its continuous drain current is 152A for this device. Drain current refers to the capacity of the device to conduct continuous current.To operate this transistor, you need to apply a 150V drain to source voltage (Vdss).This device uses no drive voltage (6V 10V) to reduce its overall power consumption.

Product Features

a continuous drain current (ID) of 152A
a 150V drain to source voltage (Vdss)

Product Applications

AOB2500L applications of single MOSFETs transistors.

Power Tools
Motor Drives and Uninterruptible Power Supples
Synchronous Rectification
Battery Protection Circuit
Telecom 1 Sever Power Supplies
Industrial Power Supplies
PFC stages, hard switching PWM stages and resonant switching
PWM stages for e.g. PC Silverbox, Adapter, LCD & PDP TV,
Lighting, Server, Telecom and UPS.
DC-to-DC converters

Product Description

Type	Description
ANSC PART#	ANSC - AOB2500L
Category	Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Mfr	Original
Series	-
Packaging	Tape & Reel (TR) Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	150 V
Current - Continuous Drain (Id) @ 25°C	11.5A (Ta), 152A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	6.2mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	3.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	136 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6460 pF @ 75 V
FET Feature	-
Power Dissipation (Max)	2.1W (Ta), 375W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-263 (D2PAK)
Package / Case	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Base Product Number	AOB2500

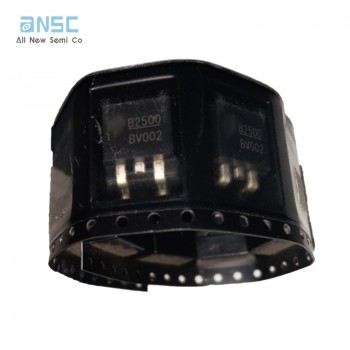

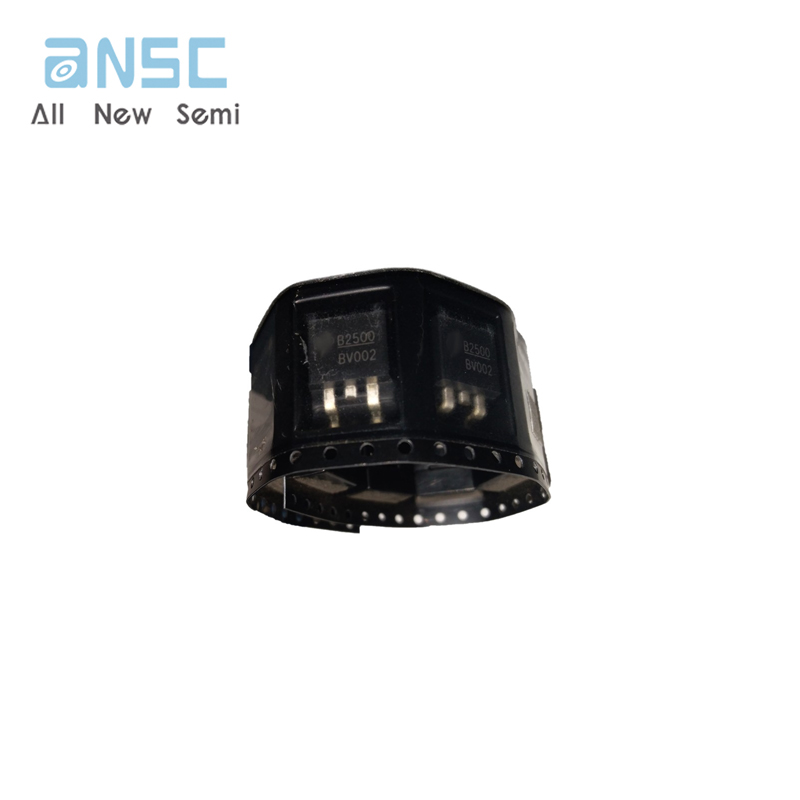

Actual image of the product

AOB2500L

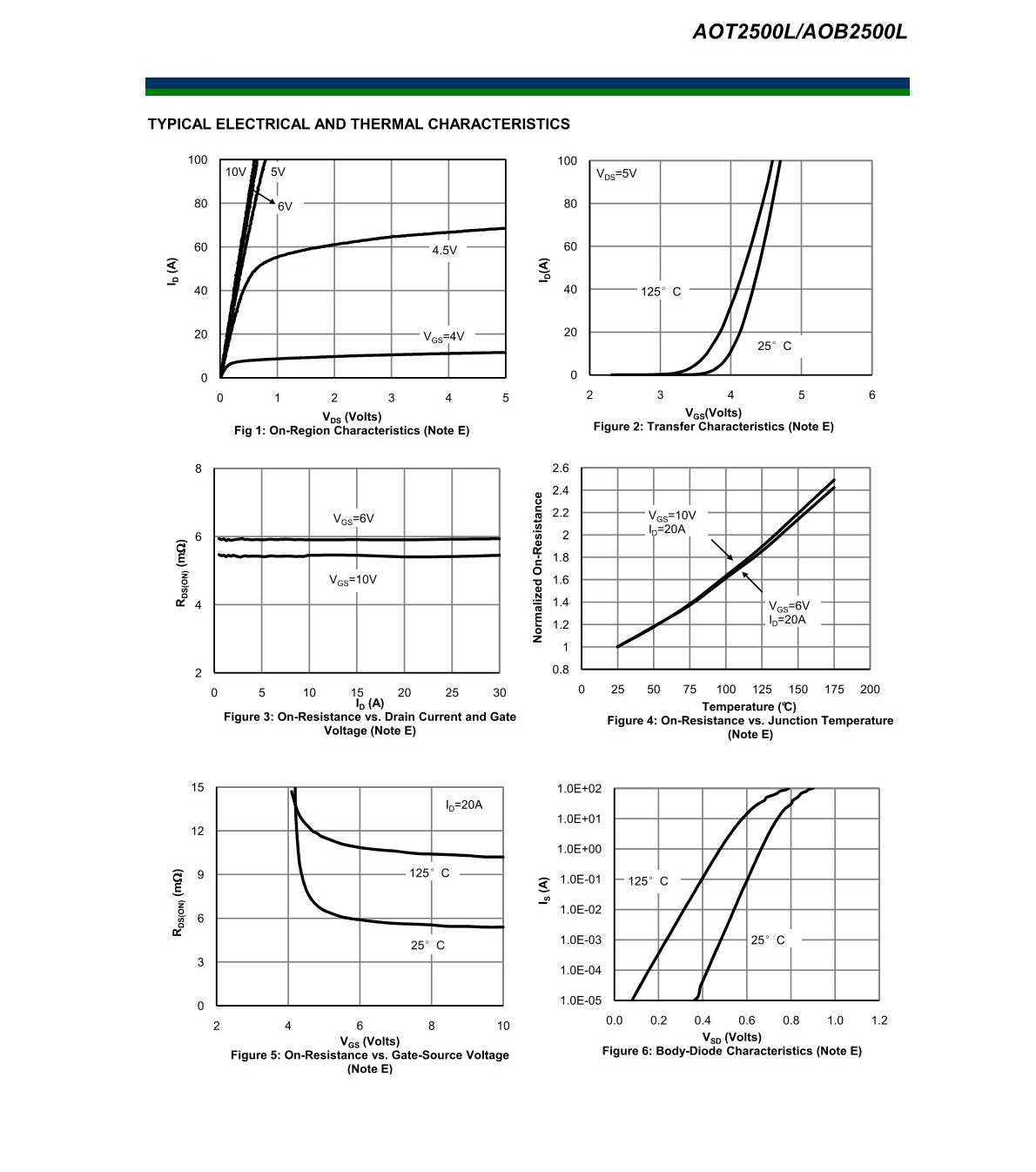

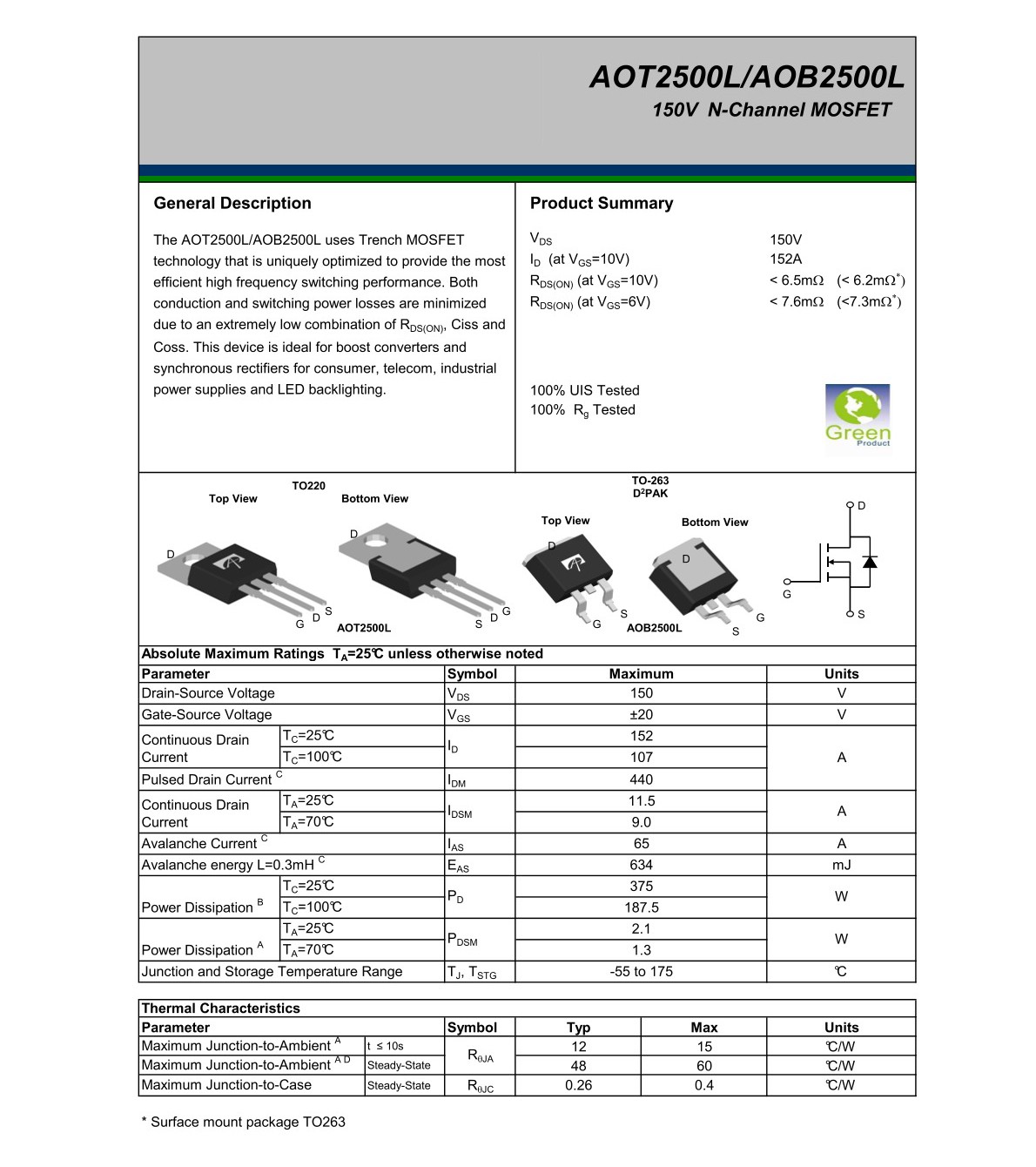

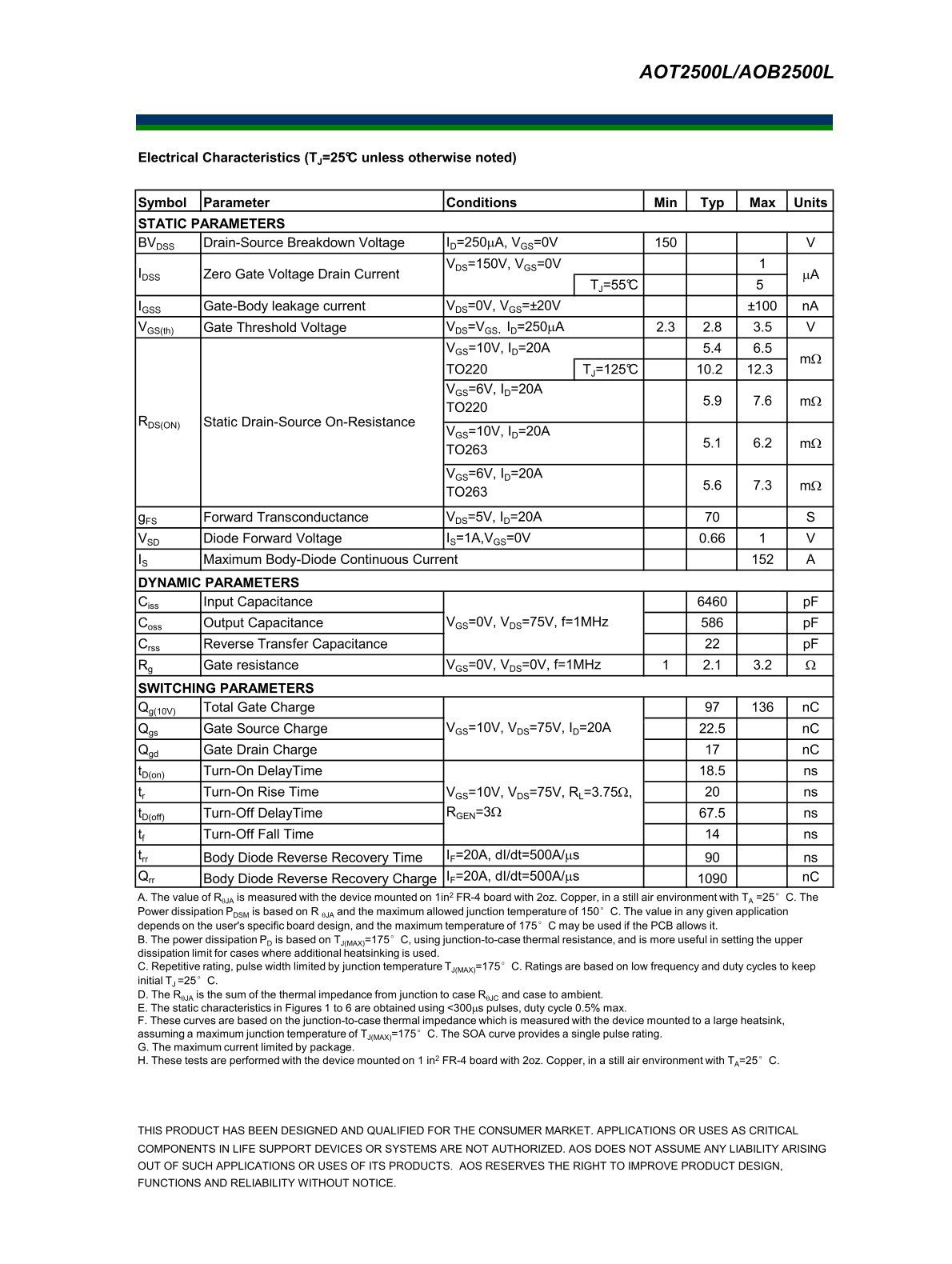

Product datasheet

For more information, please download
