Hot sale Original IRFH7914TR2PBF MOSFET N-CH 30V 15A PQFN56 N-Channel 30 V 15A (Ta), 35A (Tc) Surface Mount
Manufacturer Product Number
IRFH7914TR2PBF
Description
Original IRFH7914TR2PBF MOSFET N-CH 30V 15A PQFN56 N-Channel 30 V 15A (Ta), 35A (Tc) Surface Mount 8-PQFN (5x6)
Package Condition
Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Features Low RDSon (<1.10m) Low Thermal Resistance to PCB (<1.2°C/W) Low Profile (<0.9 mm) Industry-Standard Pinout Compatible with Existing Surface Mount Techniques RoHS Compliant, Halogen-Free MSL1, Industrial Qualification Applications ● Synchronous Rectifier MOSFET for Synchronous Buck Converters ● Secondary Synchronous Rectifier MOSFET for isolated DC-DC converters ● Active ORing and Hot Swap ● Battery Operated DC Motor Inverters |
Product Description
| Type | Description |
| ANSC PART# | ANSC-IRFH7914TR2PBF |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | Original |
| Series | - |
| Packaging | Cut Tape (CT) |
| Part Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C |
15A (Ta), 35A (Tc) |
| Rds On (Max) @ Id, Vgs | 8.7mOhm @ 14A, 10V |
| Vgs(th) (Max) @ Id | 2.35V @ 25µA |
| Gate Charge (Qg) (Max) @ Vgs | 12 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1160 pF @ 15 V |
| FET Feature | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-PQFN (5x6) |
| Package / Case | 8-PowerTDFN |

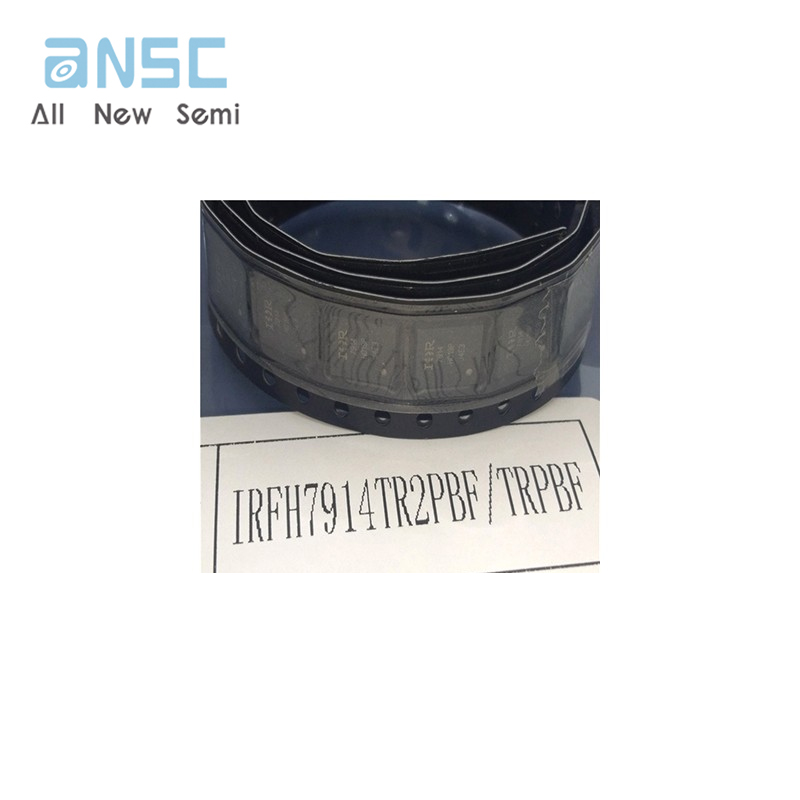

Actual image of the product

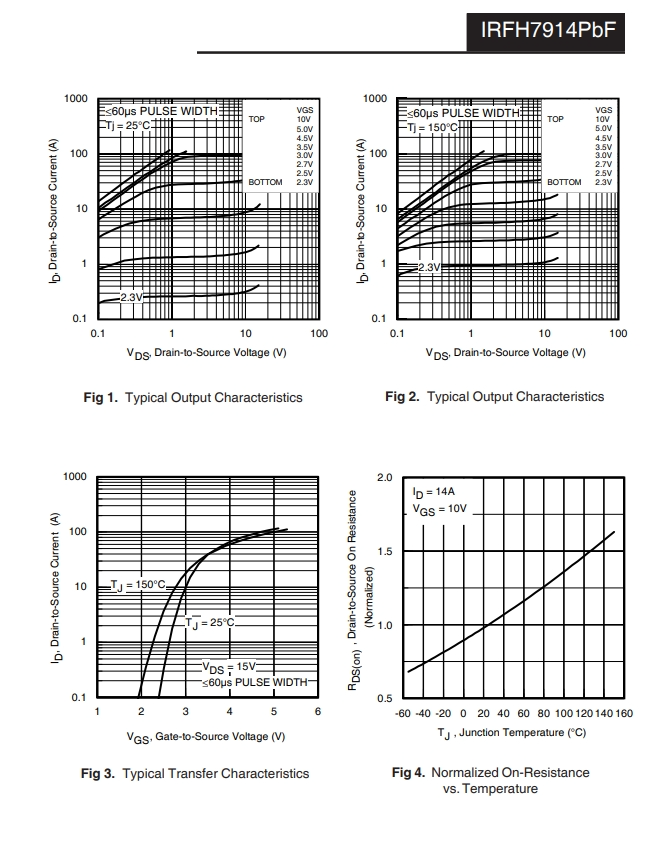

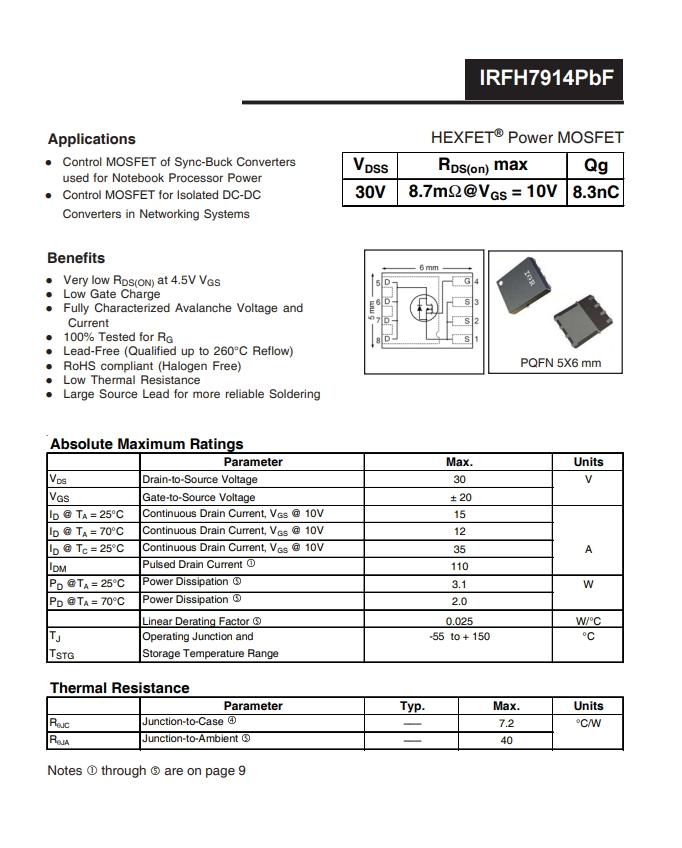

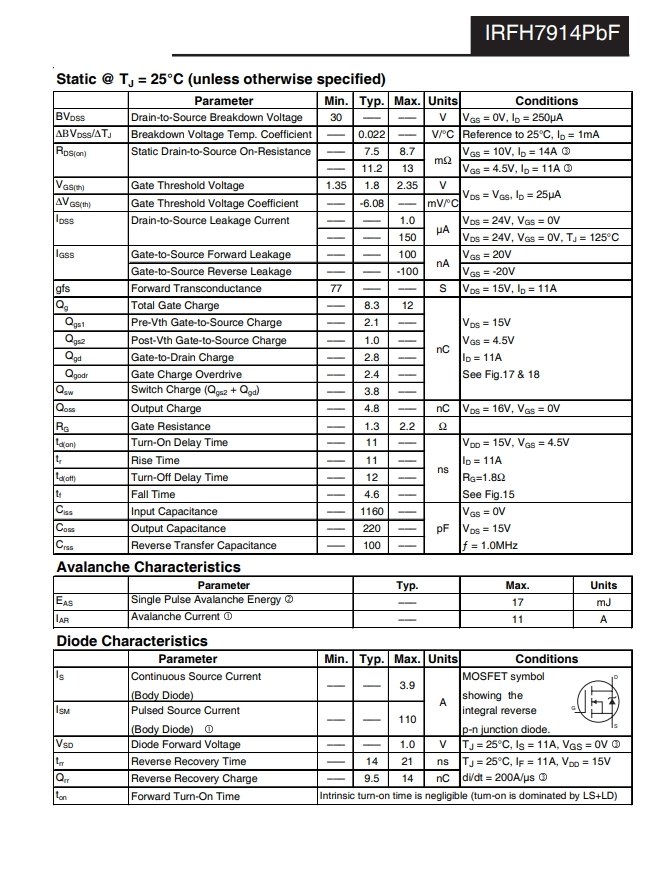

Product datasheet
For more information, please download
