Hot sale Original 2N2484 TRANS NPN Bipolar (BJT) Transistor NPN 60V 50mA 360mW Through Hole TO-18
Manufacturer Product Number
2N2484
Description
2N2484 Transistors TRANS NPN 60V 0.05A TO-18
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Description
The 2N2484HR is a silicon planar epitaxial NPN transistor specifically designed for aerospace HiRel applications and housed in hermetic packages. It complies with the ESCC 5000 qualification standard. It is ESCC qualified according to the 5201-001 specification. In case of conflict between this datasheet and ESCC detailed specification, the latter prevails.
Features
■ Linear gain characteristics
■ Hermetic packages
■ ESCC qualified
■ European preferred part list - EPPL
Product Description
|
Type |
Description |
|---|---|
|
Category |
Discrete Semiconductor Products Transistors Bipolar (BJT) Single Bipolar Transistors |
|
Mfr |
/ |
|
Series |
- |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
Transistor Type |
NPN |
|
Current - Collector (Ic) (Max) |
50 mA |
|
Voltage - Collector Emitter Breakdown (Max) |
60 V |
|
Vce Saturation (Max) @ Ib, Ic |
300mV @ 100µA, 1mA |
|
Current - Collector Cutoff (Max) |
2nA |
|
DC Current Gain (hFE) (Min) @ Ic, Vce |
225 @ 10mA, 5V |
|
Power - Max |
360 mW |
|
Frequency - Transition |
- |
|
Operating Temperature |
-65°C ~ 200°C (TJ) |
|
Mounting Type |
Through Hole |
|
Package / Case |
TO-206AA, TO-18-3 Metal Can |
|
Supplier Device Package |
TO-18 |
|
Base Product Number |
2N2484 |
Actual image of the product

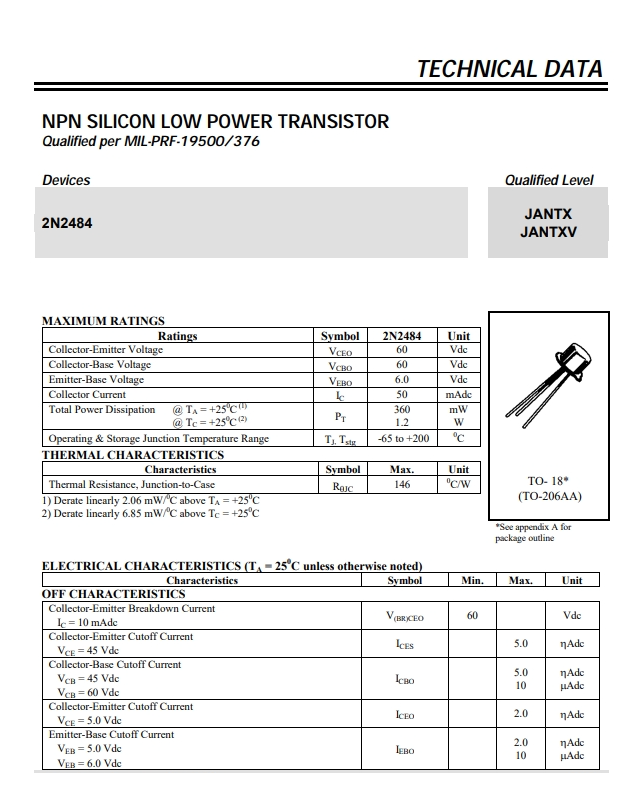

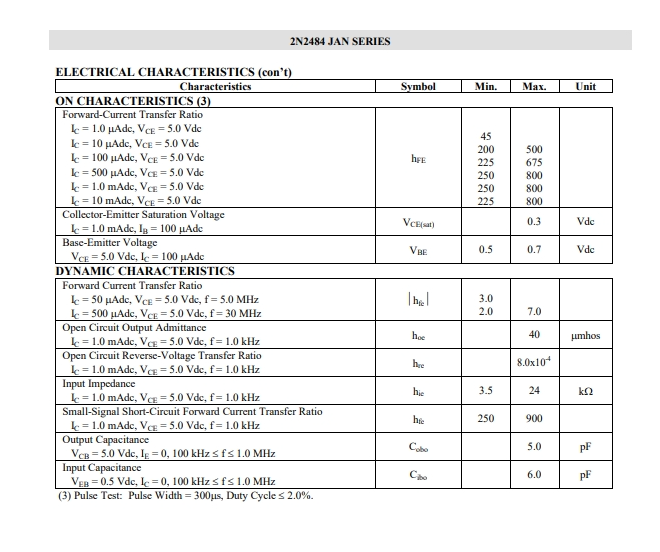

Product datasheet
