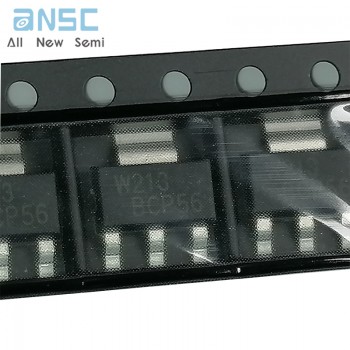

Professional supply Integrated circuit BCP56 Bipolar (BJT) NPN Silicon Medium Power Transistor 80V 1.2A 1W SOT-223-4
Manufacturer Product Number
BCP56
Description
Bipolar (BJT) Transistor NPN 80 V 1.2 A 1 W Surface Mount SOT-223-4
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
These NPN Silicon Epitaxial transistors are designed for use in audio amplifier applications. The device is housed in the SOT−223 package, which is designed for medium power surface mount applications.
Product Features
• High Current: 1.0 A
• The SOT−223 package can be soldered using wave or reflow. The
formed leads absorb thermal stress during soldering, eliminating the
possibility of damage to the die
• Available in 12 mm Tape and Reel
Use BCP56T1G to Order the 7 inch/1000 Unit Reel
Use BCP56T3G to Order the 13 inch/4000 Unit Reel
• PNP Complement is BCP53T1G
• S and NSV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q101
Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-BCP56 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | - |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Obsolete |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 1.2 A |
| Voltage - Collector Emitter Breakdown (Max) | 80 V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 150mA, 2V |
| Power - Max | 1 W |
| Frequency - Transition | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-4 |
| Base Product Number | BCP56 |
