Hot sale original BCP56-16T1G TRANS NPN 80V 1A SOT223 Bipolar (BJT) Transistor NPN 80 V 1 A 130MHz 1.5 W Surface Mount SOT-223
Manufacturer Product Number
BCP56-16T1G
Description
Original BCP56-16T1G Bipolar (BJT) Transistor NPN 80 V 1 A 130MHz 1.5 W Surface Mount SOT-223 (TO-261) Single Bipolar Transistor
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
|
Brief Description: The BCP56-16T1G is a surface-mount NPN bipolar junction transistor (BJT) . It is designed for general-purpose amplifier applications and features a high current gain, high frequency, and low saturation voltage. Features: NPN bipolar junction transistor (BJT) with a high current gain (hFE) of 100 at 150mA and 2V High frequency operation up to 130MHz Low saturation voltage (Vce(sat)) of 500mV at 50mA and 500mA High power dissipation of 1.5W Operating temperature range of -65°C to 150°C Surface-mount package with a gull-wing terminal form Lead-free and RoHS3 compliant Application Grade: The BCP56-16T1G is a general-purpose transistor suitable for a wide range of applications, including: Amplifiers Switches Drivers Power supplies Applications: Audio amplifiers Power amplifiers Switching power supplies Motor drivers Industrial control systems Automotive electronics Medical devices Key Specifications: Max breakdown voltage: 80V Max collector current: 1A Max power dissipation: 1.5W Operating temperature range: -65°C to 150°C Frequency: 130MHz Gain bandwidth product: 130MHz Saturation voltage: 500mV Current gain (hFE): 100 at 150mA and 2V Overall, the BCP56-16T1G is a high-performance NPN BJT with a wide range of applications in various industries. Its high current gain, high frequency, and low saturation voltage make it suitable for demanding amplifier and power supply applications. |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC - BCP56-16T1G |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 80 V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 2V |
| Power - Max | 1.5 W |
| Frequency - Transition | 130MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223 (TO-261) |
| Base Product Number | BCP56 |

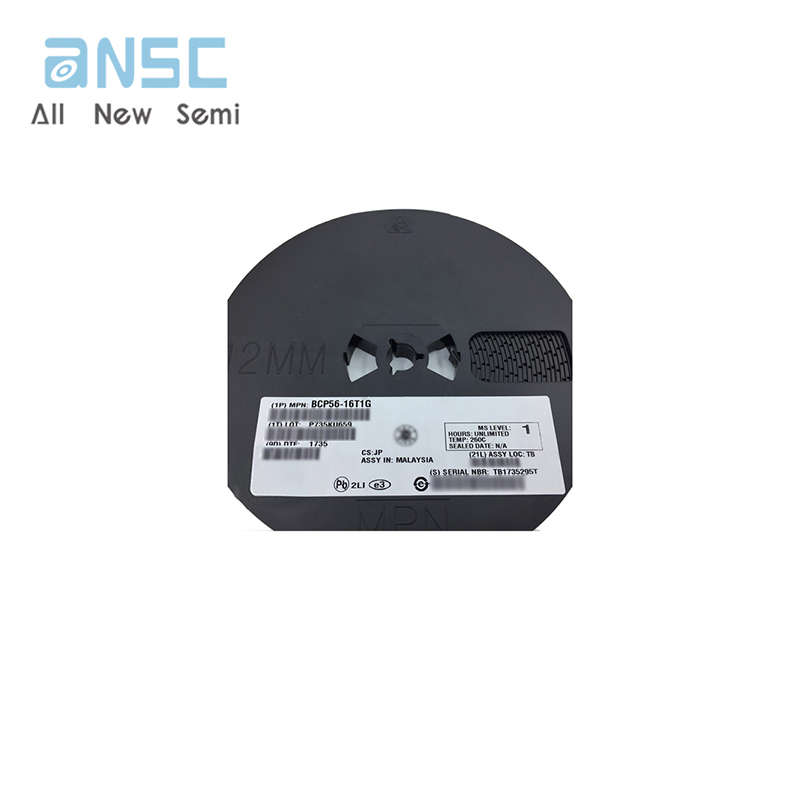

Product Photos

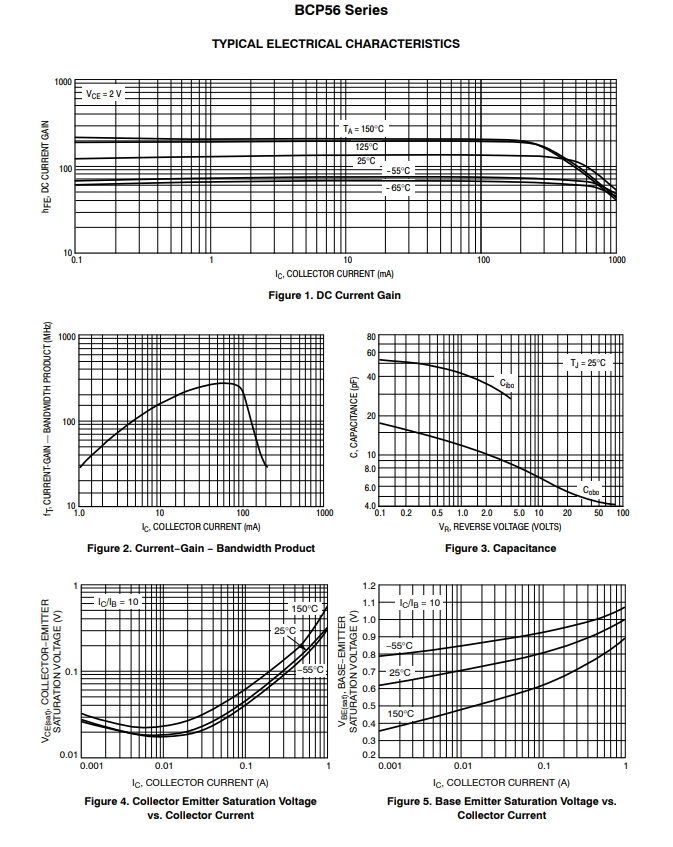

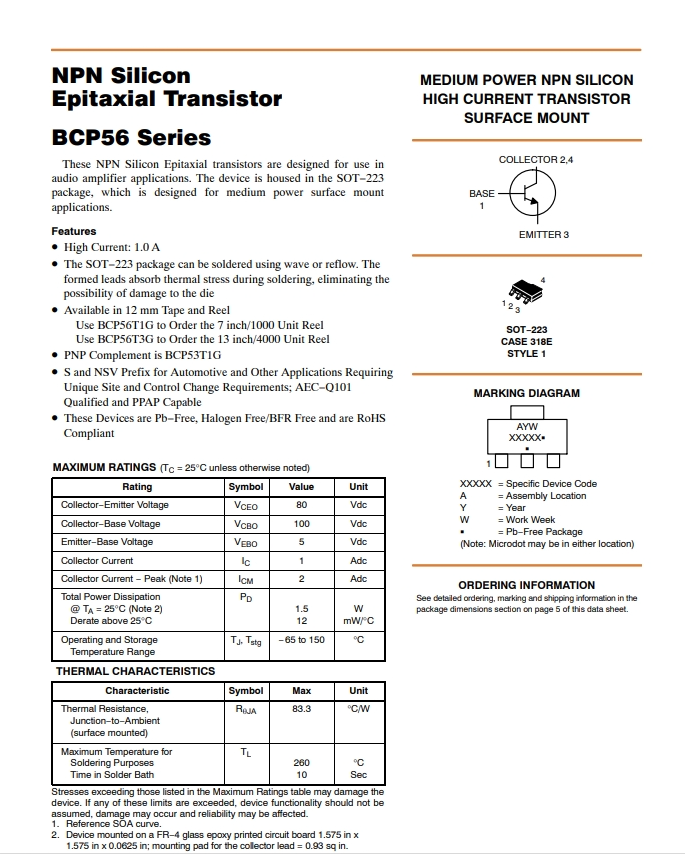

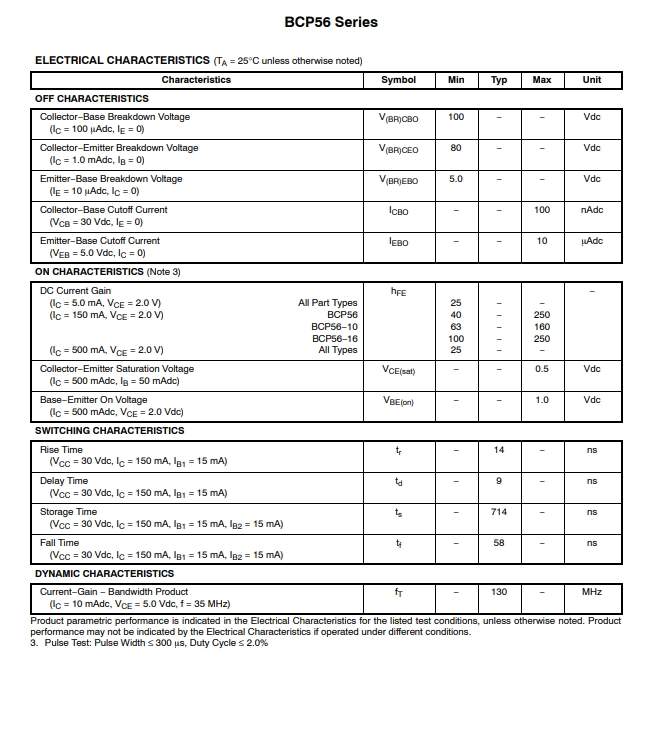

Product datasheet
For more information, please download
