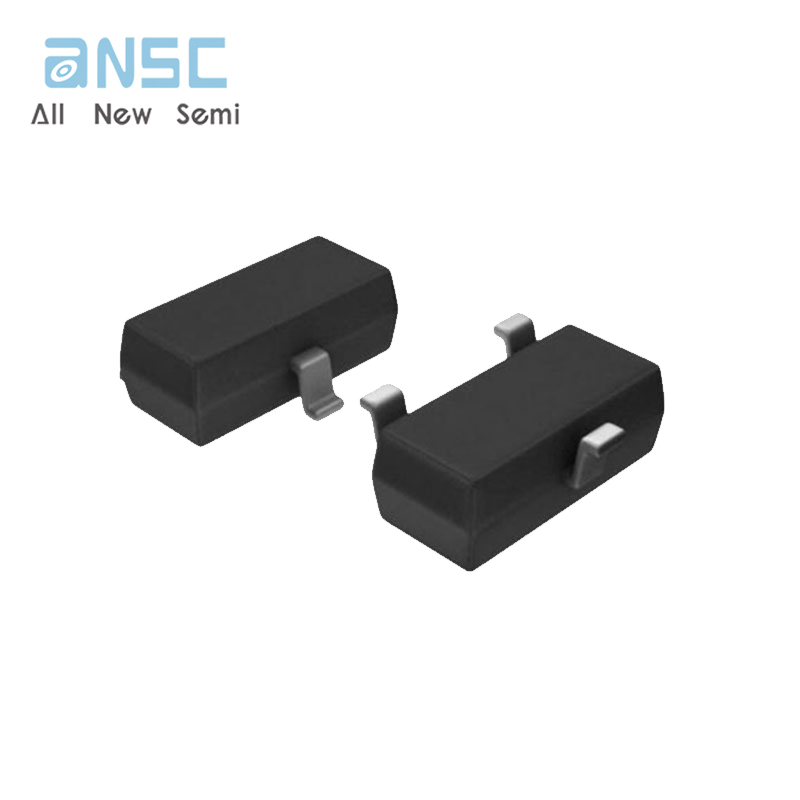

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Professional supply Original Electronic components BOM Integrated circuit IC IRLML6402PBF power transistors
Manufacturer Product Number
IRLML6402PBF
Description
IRLML6402PBF Power Field-Effect Transistor, 3.7A
Package Condition
Tape and Reel
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Description These P-channel MOSFETs from International Rectifier utilize advanced processing techniques to achieve the extremely low on-resistance per silicon area. This benefit provides the designer with an extremely efficient device for use in battery and load management applications. A thermally enhanced large pad leadframe has been incorporated into the standard SOT-23 package to produce a HEXFET Power MOSFET with the industrys smallest footprint. This package, dubbed the Micro3TM, is ideal for applications where printed circuit board space is at a premium. The low profile (<1.1mm) of the Micro3 allows it to fit easily into extremely thin application environments such as portable electronics and PCMCIA cards. The thermal resistance and power dissipation are the best available. ● Ultra Low On-Resistance ● P-Channel MOSFET ● Surface Mount ● Available in Tape & Reel ● Low Gate Charge |
Product Description
| Type | Description |
| PART# | IRLML6402PBF |
| Ihs Manufacturer | Original |
| Part Package Code | SOT-23 |
| Package Description | HALOGEN AND LEAD FREE, MICRO-3 |
| Pin Count | 3 |
| Additional Feature | ULTRA LOW RESISTANCE |
| Avalanche Energy Rating (Eas) | 11 mJ |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| DS Breakdown Voltage-Min | 20 V |
| Drain Current-Max (ID) | 3.7 A |
| Drain-source On Resistance-Max | 0.065 Ω |
| FET Technology | METAL-OXIDE SEMICONDUCTOR |
| JEDEC-95 Code | TO-236AB |
| JESD-30 Code | R-PDSO-G3 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | 1 |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Operating Mode | ENHANCEMENT MODE |
| Operating Temperature-Max | 150 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Polarity/Channel Type | P-CHANNEL |
| Power Dissipation-Max (Abs) | 1.3 W |
| Pulsed Drain Current-Max (IDM) | 22 A |
| Qualification Status | Not Qualified |
| Surface Mount | YES |
| Terminal Finish | MATTE TIN |
| Terminal Form | GULL WING |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |
Actual image of the product
