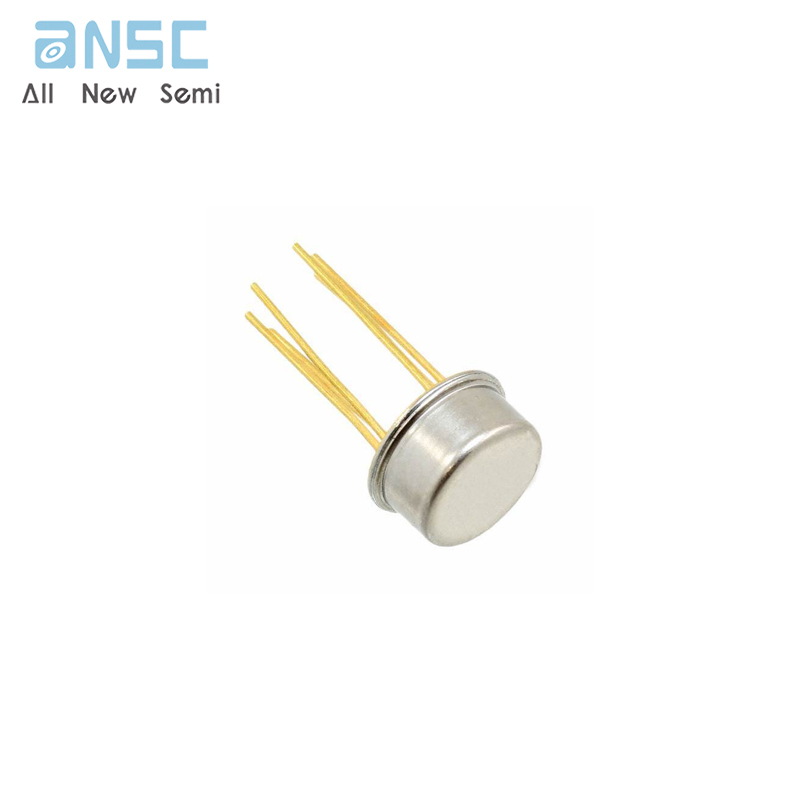

Hot-selling and scarce JAN4N23A Hi-Reliability Optically Coupled Isolator CAN6 spot stock
Manufacturer Product Number
JAN4N23A
Description
JAN4N23A Hi-Reliability Optically Coupled Isolator CAN6 spot stock
Package Condition
Bulk
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
Each isolator in this series consists of an infrared emitting diode and a NPN silicon phototransistor, which are mounted in a hermetically sealed TO-78 package. Devices are designed for military and/or harsh environments. The suffix letter“A”denotes the collector is electrically isolated from the case.
Product Features
• TO-78 hermetically sealed package
• High current transfer ratio
• 1 kV electrical isolation
• Base contact provided for conventional transistor biasing
• JAN, JANTX and JANTXV devices processed to MIL-PRF-19500
• Patent No. 4124860
Product Applications
• High-voltage isolation between input and output
• Electrical isolation in dirty environments
• Industrial equipment
• Medical equipment
• Office equipment
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-JAN4N23A |
| Category | Isolators |
| Optocouplers, Optoisolators | |
| Transistor, Photovoltaic Output Optoisolators | |
| Manufacturer | - |
| Packaging | Bulk |
| Part Status | Obsolete |
| Number of Channels | 1 |
| Voltage - Isolation | 1000VDC |
| Current Transfer Ratio (Min) | 60% @ 10mA |
| Rise / Fall Time (Typ) | 20µs, 20µs (Max) |
| Input Type | DC |
| Output Type | Transistor with Base |
| Voltage - Output (Max) | 40V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.5V (Max) |
| Current - DC Forward (If) (Max) | 40 mA |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | TO-78-6 Metal Can |
| Supplier Device Package | TO-78-6 |
Product Photos
For more product information, please download the PDF
Other Products In The same category:
JAN4N23A Hi-Reliability Optically Coupled Isolator CAN6 spot stock
60In stock:
Can ship immediately
