Hot sale Original FGH60N60SMD Transistors IGBT FIELD STOP 600V 120A TO-247 IGBT Field Stop 600 V 120 A 600 W Through Hole

Manufacturer Product Number
FGH60N60SMD
Description

FGH60N60SMD Transistors IGBT FIELD STOP 600V 120A TO-247 IGBT Field Stop 600 V 120 A 600 W Through Hole TO-247-3

Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

​

General Description
Using Novel Field Stop IGBT Technology, new series of Field Stop IGBTs offer the optimum performance for Solar Inverter, UPS, SMPS, IH and PFC applications where low conduction and switching losses are essential.
Features
• Maximum Junction Temperature : TJ =175°C
• Positive Temperaure Co-efficient for easy parallel operating
• High current capability
• Low saturation voltage: VCE(sat) =1.9V(Typ.) @ IC= 60A
• High input impedance
• Fast switching
• Tighten Parameter Distribution
• RoHS compliant

Product Description

Type Description
ANSC PART# ANSC-FGH60N60SMD
Category Discrete Semiconductor Products
Transistors
IGBTs
Single IGBTs
Manufacturer Original
Series -
Packaging Tube
Part Status Active
IGBT Type Field Stop
Voltage - Collector Emitter Breakdown (Max) 600 V
Current - Collector (Ic) (Max) 120 A
Current - Collector Pulsed (Icm) 180 A
Vce(on) (Max) @ Vge, Ic 2.5V @ 15V, 60A
Power - Max 600 W
Switching Energy 1.26mJ (on), 450µJ (off)
Input Type Standard
Gate Charge 189 nC
Td (on/off) @ 25°C 18ns/104ns
Test Condition 400V, 60A, 3Ohm, 15V
Reverse Recovery Time (trr) 39 ns
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247-3
Base Product Number FGH60

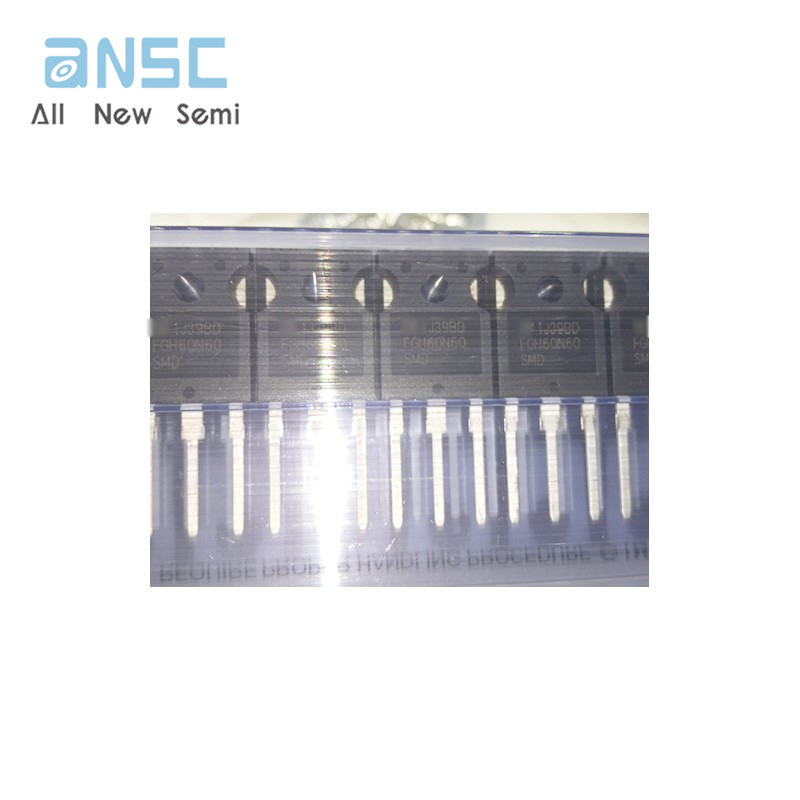

Actual image of the product

FGH60N60SMD

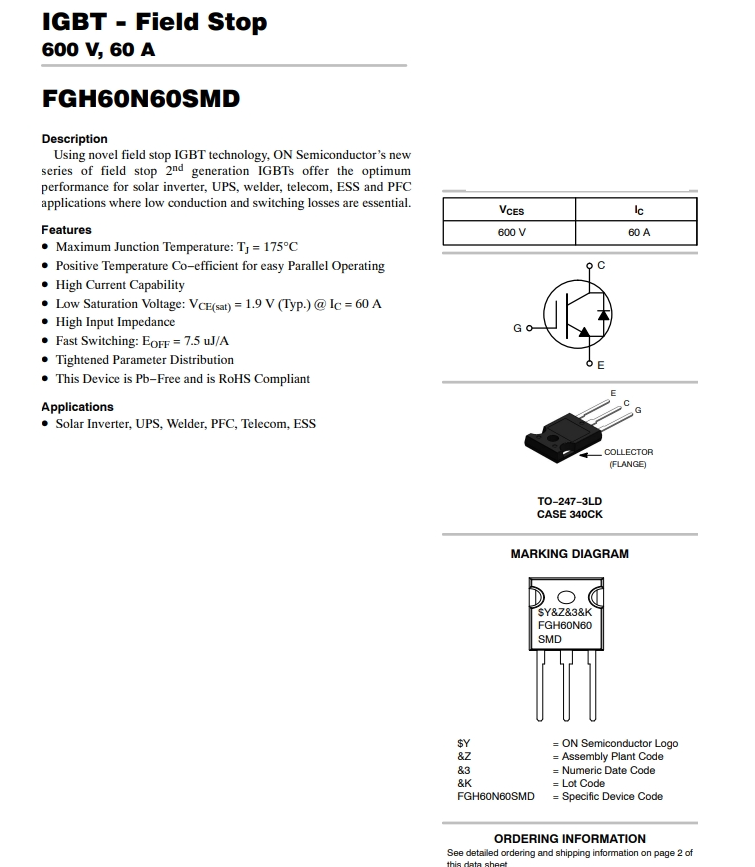

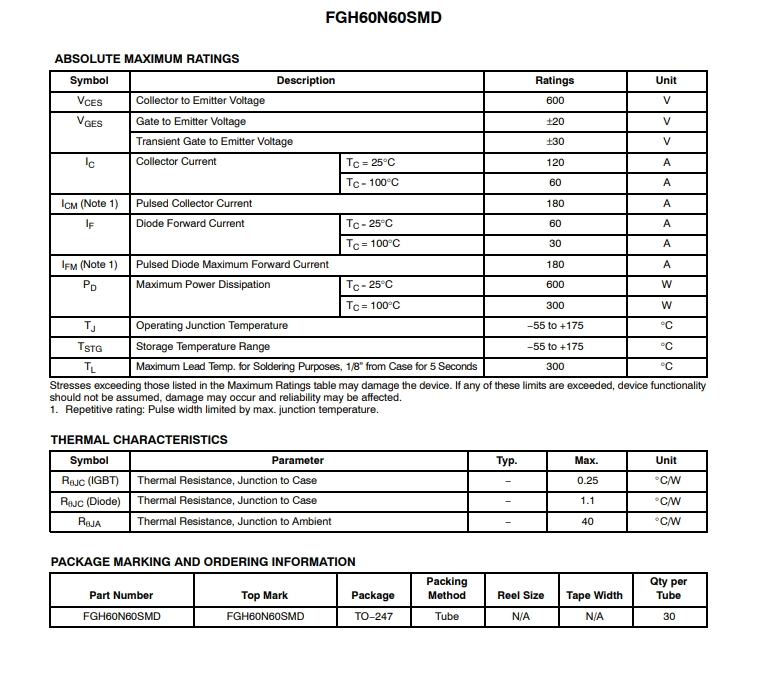

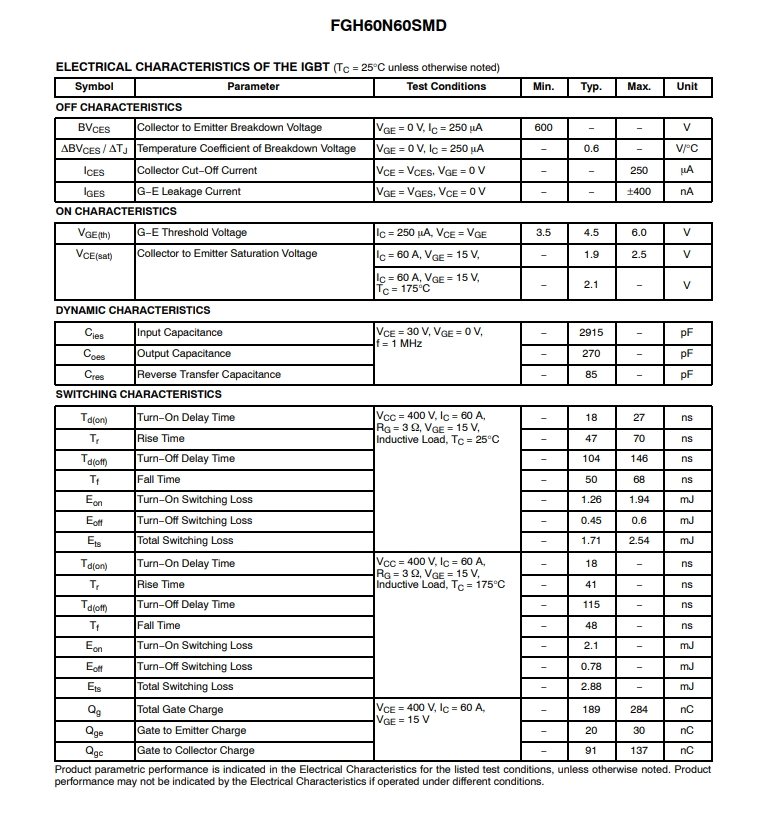

Product datasheet

For more information, please download
